HCT-GG028RX4A-1.0 is a standard 2.8 inch capacitive touch panel constructed from ITO on 0.55 mm glass substrate, providing excellent optical properties. This touch sensor is typically optically bonded to a 0.70mm glass cover with surface hardness 6H with Light Transmission of over 85%. The flex cable is assembled with GT911 touch IC that can support 5 points touch. The interface is an I2C 6Pin connection. This capacitive touch panel is compatible with a 2.8 inch TFT LCD with 240x320 resolution.
General Specification
|
Item |
Specification |
|
Touch Screen Size |
2.8” |
|
Touch controller |
Goodix GT911 |
|
Touch Interface |
I2C |
|
Pin Number |
6pin |
|
Structure |
Glass+Glass |
|
Glass thickness |
0.70 mm |
|
Sensor thickness |
0.55 mm |
|
Outline Dimension |
49.80*69.00*1.45 mm |
|
Valid Area |
44.20*58.60 mm |
|
working voltage |
2.8-3.3V |
|
Custom Touch |
Available |
|
Working Temperature |
-20℃~ 60℃ |
|
Storage Temperature |
-30℃~ 70℃ |

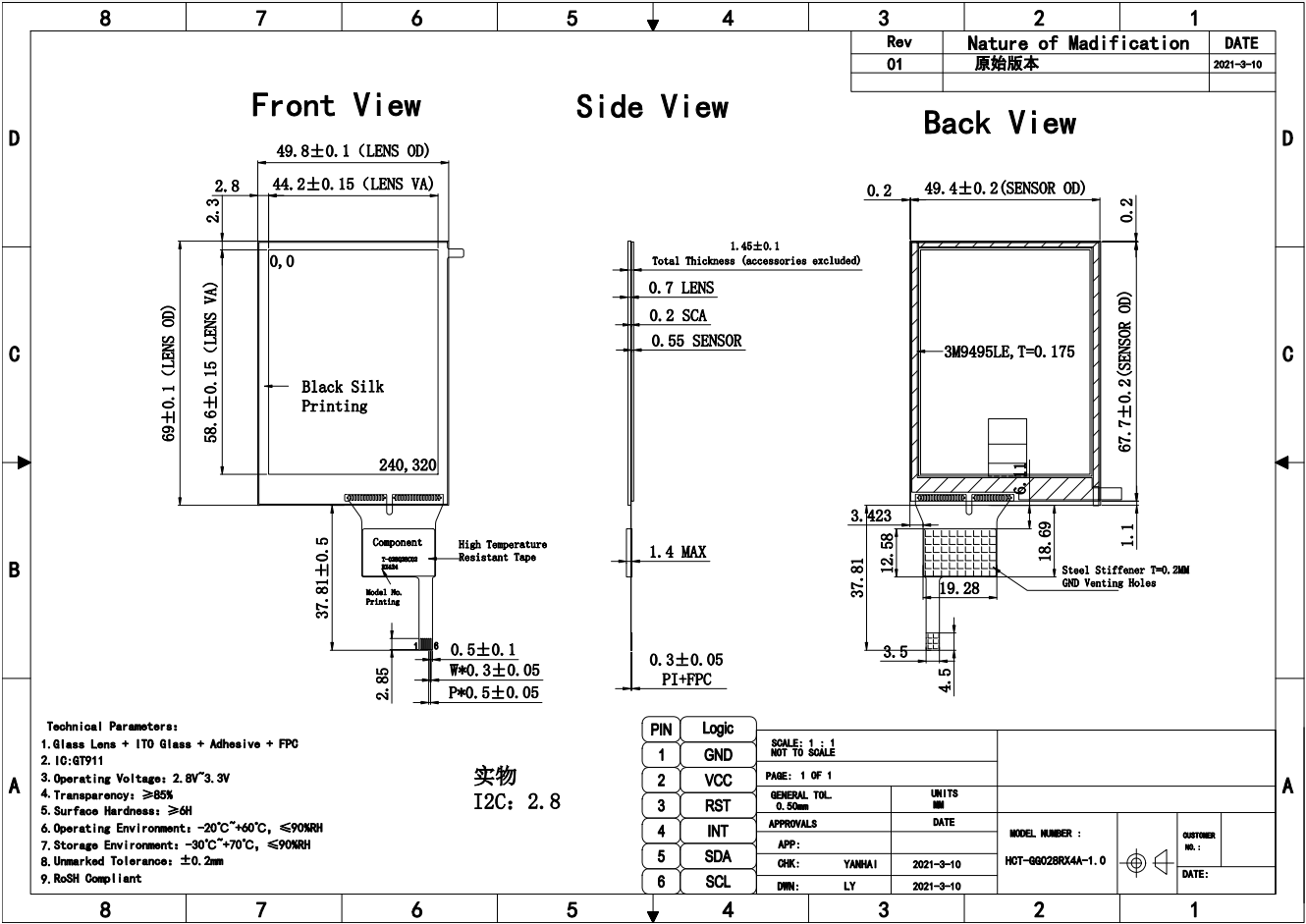

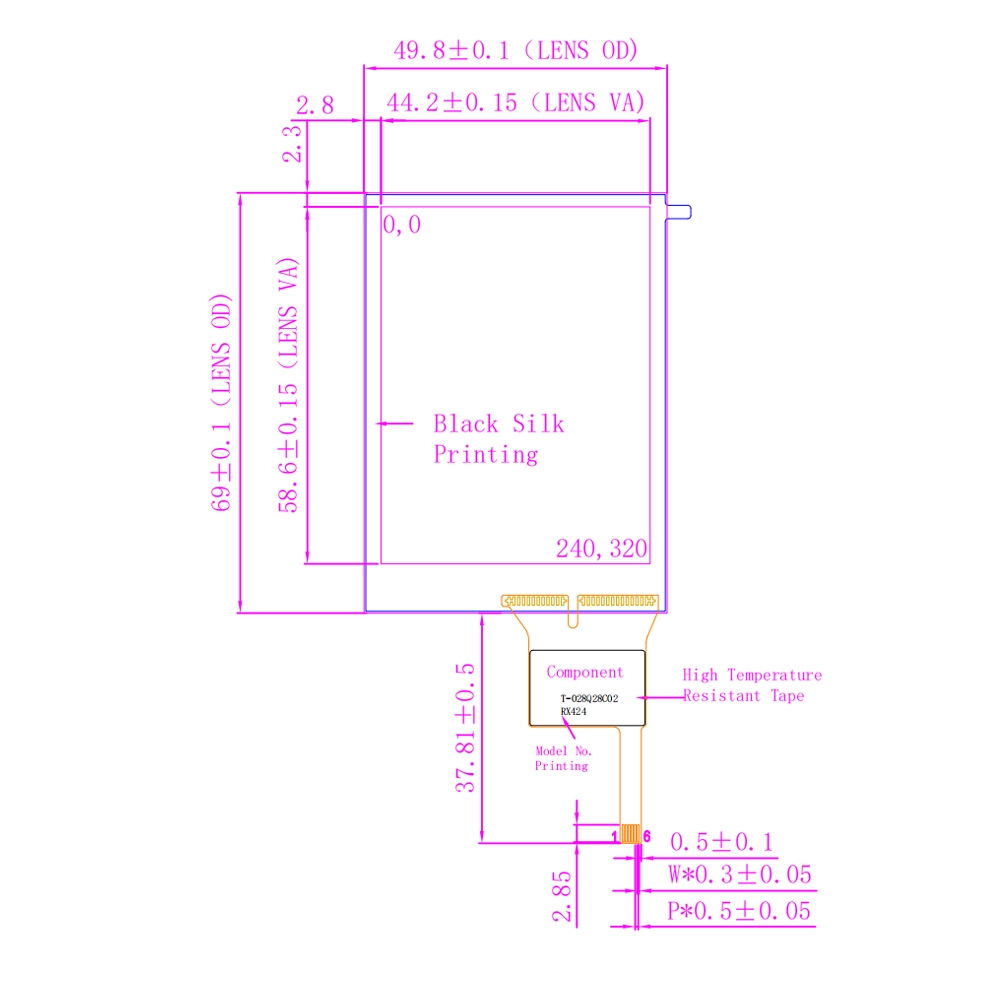

Product Structure
