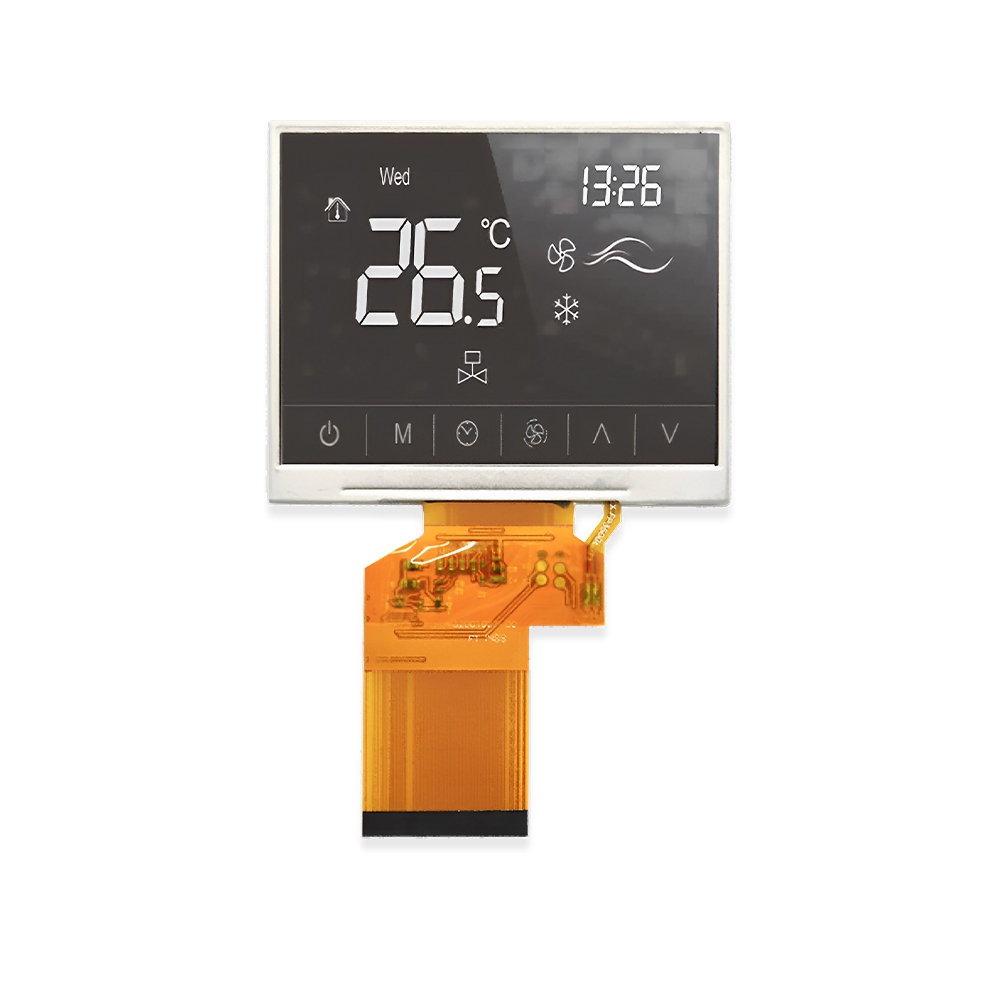

3.5 inch LCD Display Panel

Part NO: MX-35T5432024006L01T
► Size: 3.5"
► Resolution: 320*240 Pixels
► Display Mode: TN
► Brightness: 350 Nits
► Interface: RGB 54 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-35T5432024006L01T is 3.5 inch LCD Display Panel. It is a replacement LCD Display of Innolux LQ035NC111. This 3.5" TFT LCD Display supports display 320(RGB)x240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)x52.56(H) mm, outline size of 76.80(W)x63.80(H)x3.26(T) mm. As a TN, Normally White, Transmissive LCM product, MX-35T5432024006L01T can provides 350 cd/m² display brightness 400:1 transimissive contrast ratio, 50/60/70/75 (Typ.)(CR≥10) (U/D/L/R) viewing angle, best view direction on 6 o’clock.

Product Structure

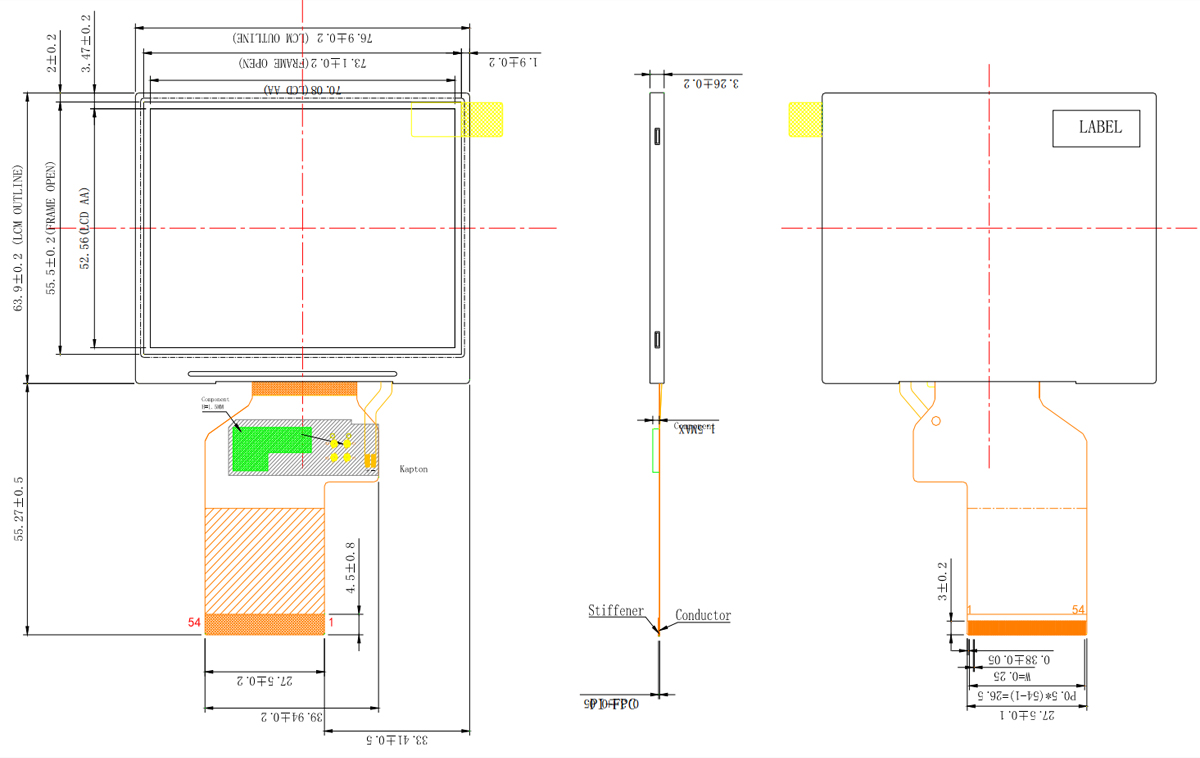

Drawing of 3.5 inch LCD Display Panel

LCD PIN Function (RGB 54 PIN)

PIN NO.	PIN NAME	DESCRIPTION
1	LEDK	LED backlight cathode
2	LEDK	LED backlight cathode
3	LEDA	LED backlight cathode
4	LEDA	LED backlight cathode
5	YU	RTP (No connection)
6	XR	RTP (No connection)
7	NC	No connection
8	RESET	Reset signal input terminal, active at ‘L’.
9	CS	Chip select signal input terminal, active at ‘L’.
10	SCK	Write signal input terminal, Active at ‘L’. Synchronizing clock signal in SPI mode.
11	SDA	SPI interface input pin
12~19	B0~B7	Data bus
20~27	G0~G7	Data bus
28~35	R0~R7	Data bus
36	HSYNC	Line synchronizing signal for RGB interface operation.
37	VSYNC	Frame synchronizing signal for RGB interface operation.
38	DCLK	Dot clock signal for RGB interface operation.
39	NC	No connection
40	NC	No connection
41	VCC	System power supply.
42	VCC	System power supply.
43	YD	RTP (No connection)
44	XL	RTP (No connection)
45	NC	No connection
46	NC	No connection
47	NC	No connection
48	IF2	Define the input interface (Note1)
49	IF1	Define the input interface (Note1)
50	IF0	Define the input interface (Note1)
51	NC	No connection
52	DE	Data ENEABLE signal for RGB interface operation.
53	GND	Power ground
54	GND	Power ground

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Analog Supply Voltage	VCC	-0.3	4	V
Input Voltage	Vin	GND-0.3	5	V
Operating Temperature	TOP	-20	70	°C
Storage Temperature	TST	-30	80	°C
Storage Humidity	HD	-	90	%RH

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Analog Supply Voltage	VCC	2.5	-	3.6	V
Input High Voltage	V_IH	0.8	-	-	V
Input Low Voltage	V_IL	0	-	0.2	V
Output High Voltage	V_OH	0.9	-	-	V
Output Low Voltage	V_OL	0	-	0.1	V
Logic Input Current	I_IL/I_IH	-1	-	1	uA

Backlight Characteristics

Item	Symbol	MIN.	TYP.	MAX.	UNIT	Test Condition
Supply Voltage	Vf	18.6	19.2	21	V	If=20mA
Supply Current	If	15	20	25	mA	-
Luminous Intensity For LCM	-	300	350	-	Cd/m²	If=20mA
Power consumption	-	0.279	0.384	0.525	W	If=20mA
Uniformity for LCM	-	80	-	-	％	If=20mA
Life time	-	30,000	50,000	-	Hr	-
Backlight Color	White
