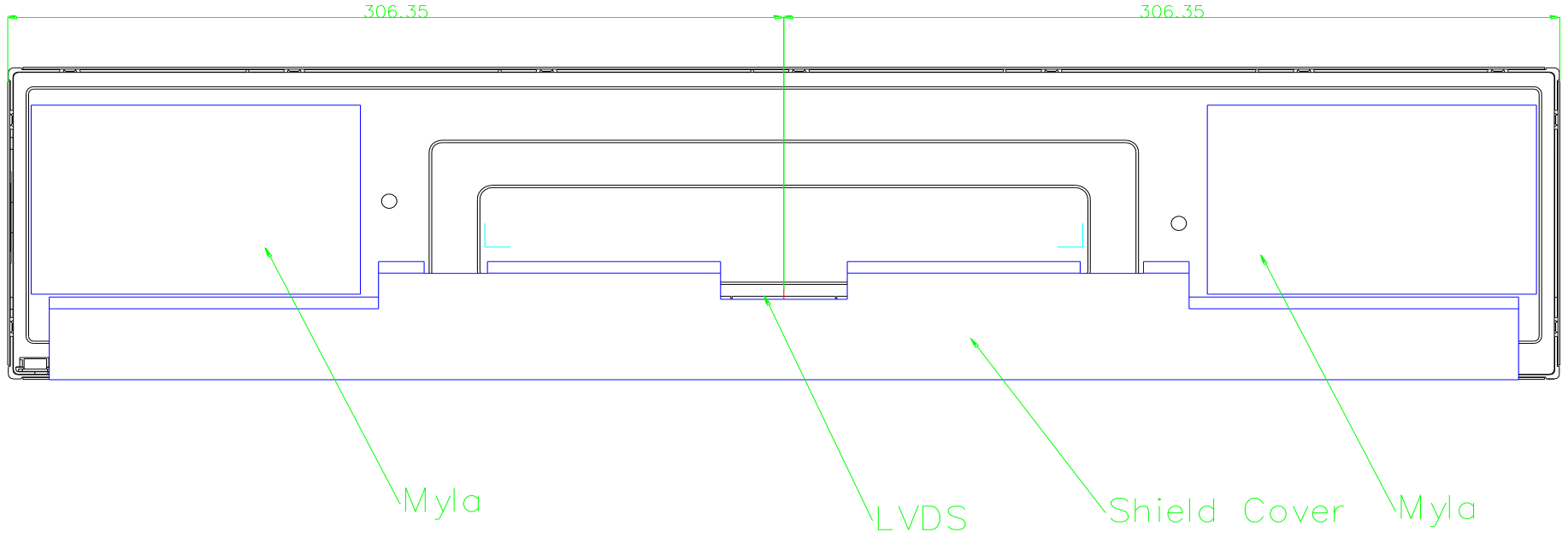

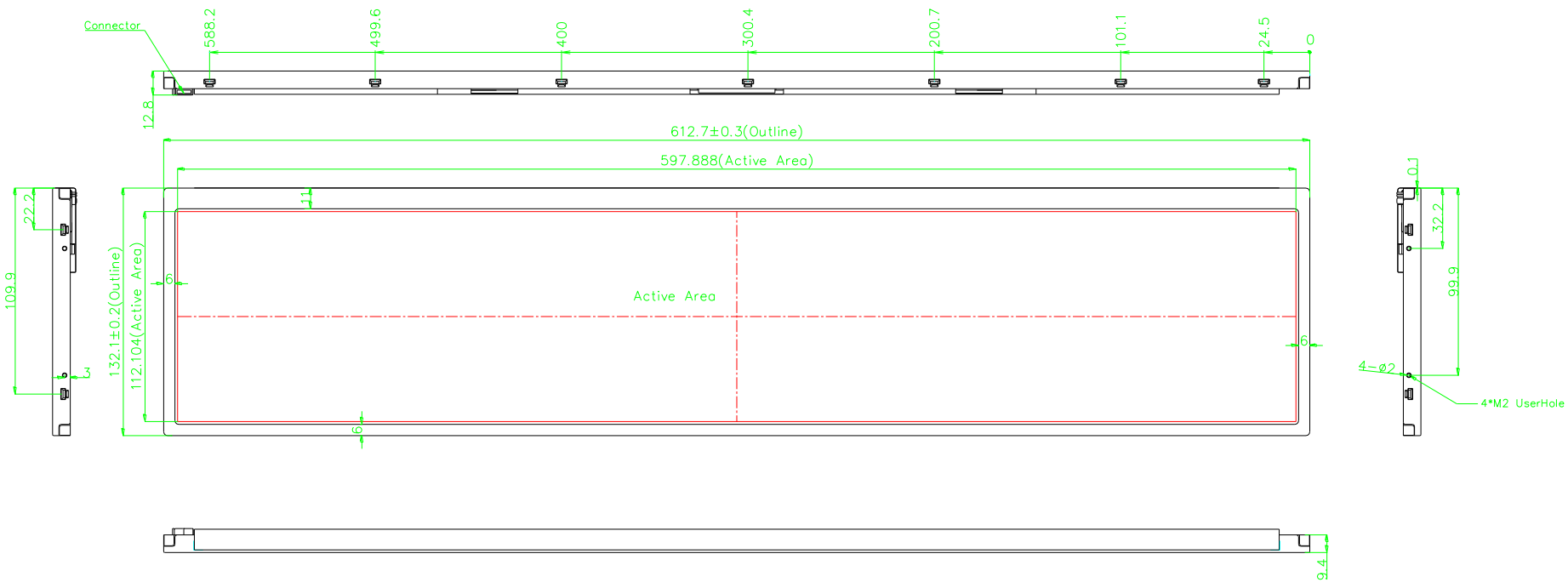

Product Structure
.png)
LCD PIN Function (LVDS 30 PIN)
|
Pin No. |
Symbol |
Function |
|
1 |
RXO0- |
Negative Transmission data of Pixel 0 (ODD) |
|
2 |
RXO0+ |
Positive Transmission data of Pixel 0 (ODD) |
|
3 |
RXO1- |
Negative Transmission data of Pixel 1 (ODD) |
|
4 |
RXO1+ |
Positive Transmission data of Pixel 1 (ODD) |
|
5 |
RXO2- |
Negative Transmission data of Pixel 2 (ODD) |
|
6 |
RXO2+ |
Positive Transmission data of Pixel 2 (ODD) |
|
7 |
GND |
Power Ground |
|
8 |
RXOC- |
Negative Transmission Clock (ODD) |
|
9 |
RXOC+ |
Positive Transmission Clock (ODD) |
|
10 |
RXO3- |
Negative Transmission data of Pixel 3 (ODD) |
|
11 |
RXO3+ |
Positive Transmission data of Pixel 3 (ODD) |
|
12 |
RXE0- |
Negative Transmission data of Pixel0 (EVEN) |
|
13 |
RXE0+ |
Positive Transmission data of Pixel 0 (EVEN) |
|
14 |
GND |
Power Ground |
|
15 |
RXE1- |
Negative Transmission data of Pixel1 (EVEN) |
|
16 |
RXE1+ |
Positive Transmission data of Pixel 1 (EVEN) |
|
17 |
GND |
Power Ground |
|
18 |
RXE2- |
Negative Transmission data of Pixel 2 (EVEN) |
|
19 |
RXE2+ |
Positive Transmission data of Pixel 2 (EVEN) |
|
20 |
RXEC- |
Negative Transmission Clock (EVEN) |
|
21 |
RXEC+ |
Positive Transmission Clock (EVEN) |
|
22 |
RXE3- |
Negative Transmission data of Pixel 3 (EVEN) |
|
23 |
RXE3+ |
Positive Transmission data of Pixel 3 (EVEN) |
|
24 |
GND |
Power Ground |
|
25 |
CTL |
CTL_DVR for LCD manufacturer |
|
26 |
CE |
CE_DVR for LCD manufacturer |
|
27 |
NC |
Not connection |
|
28 |
VDD1 |
Power Supply:+5V |
|
29 |
VDD2 |
|
|
30 |
VDD3 |
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
|
Power Supply Voltage |
VDD |
-0.3 |
7 |
V |
|
Logic Supply Voltage |
VIN |
VSS-0.3 |
VDD+0.3 |
V |
|
LED Channel Current |
IBL |
- |
85 |
mA |
|
Operating Temperature |
TOP |
0 |
50 |
℃ |
|
Storage Temperature |
TST |
-20 |
60 |
℃ |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Power Supply Voltage |
VDD |
4.5 |
5.0 |
5.5 |
V |
|
Power Supply Current |
IDD |
- |
600 |
800 |
mA |
|
In-Rush Current |
IRUSH |
- |
2 |
3 |
A |
|
Permissible Input Ripple Voltage |
VRF |
- |
- |
300 |
mV |
|
High Level Differential Input |
VIH |
- |
- |
100 |
mV |
|
Threshold Voltage |
|||||
|
Low Level Differential Input |
VIL |
-100 |
- |
- |
mV |
|
Threshold Voltage |
|||||
|
Differential input voltage |
|VID| |
200 |
- |
600 |
mV |
|
Differential input common mode voltage |
Vcm |
1.0 |
1.2 |
1.5 |
- |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
LED Light Bar Input Voltage |
VL |
- |
49.3 |
- |
V |
|
LED Light Bar Input Current |
IL |
- |
300 |
- |
mA |
|
LED Power Consumption |
PBL |
- |
14.79 |
- |
W |
|
Luminance of White |
Yw |
800 |
1000 |
- |
cd/m2 |
|
White luminance uniformity |
ΔY |
75 |
80 |
- |
% |
|
LED Life-Time |
- |
30,000 |
- |
- |
Hrs |
