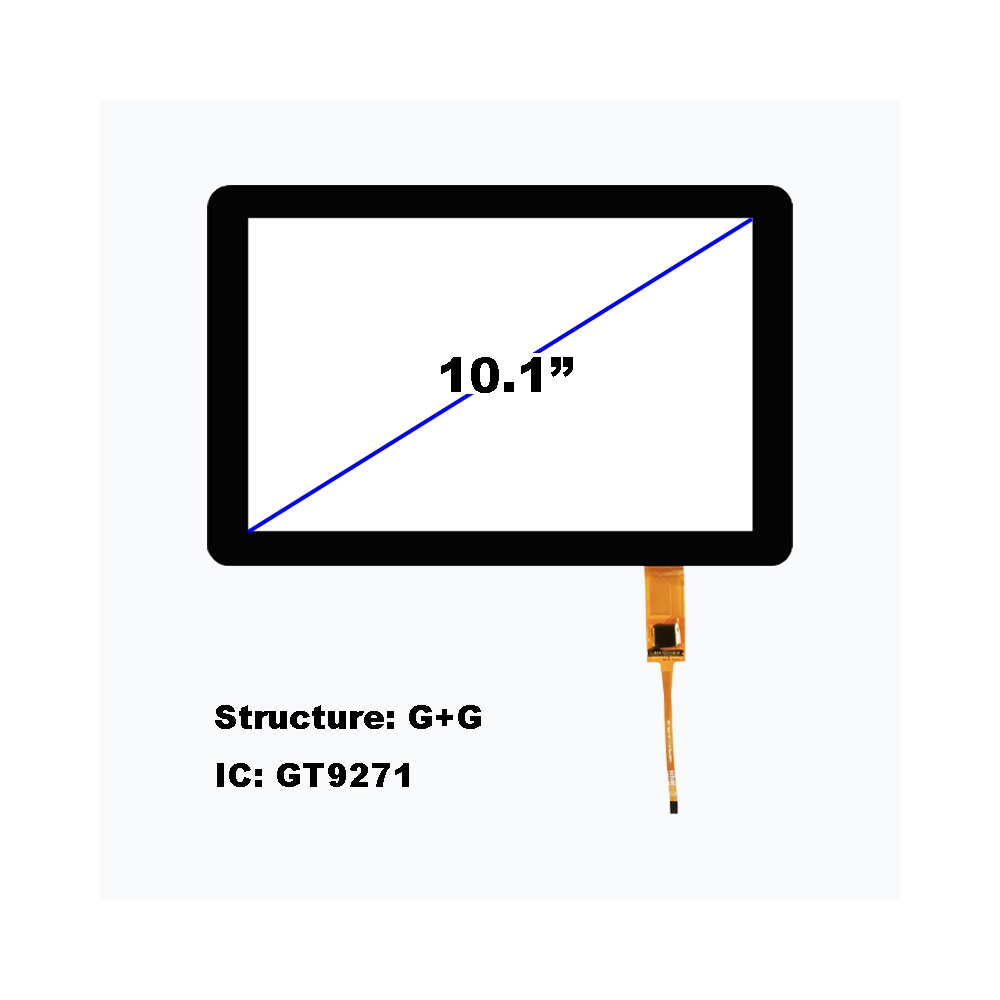

HCT776GG101C1J2-V0 is a standard 10.1 inch capacitive touch panel constructed from ITO on 1.10mm glass substrate, providing excellent optical properties. This touch sensor is typically optically bonded to a 1.10mm glass cover with surface hardness 6H with light transmission of over 85%. The flex cable is assembled with GT9271 touch IC that can support 5 points touch. The interface is an I2C 6 Pin connection interface and also supports USB interface. This capacitive touch screen is compatible with a 10.1 inch LCD Screen with 1280x800 or 1920x1280 resolution.
General Specification
Product Structure
|
Item |
Specification |
|
Touch Screen Size |
10.1" |
|
Touch controller |
Goodix GT9271 |
|
Touch Interface |
I2C |
|
Pin Number |
6pin |
|
Structure |
Glass+Glass |
|
Glass thickness |
1.10 mm |
|
Sensor thickness |
1.10 mm |
|

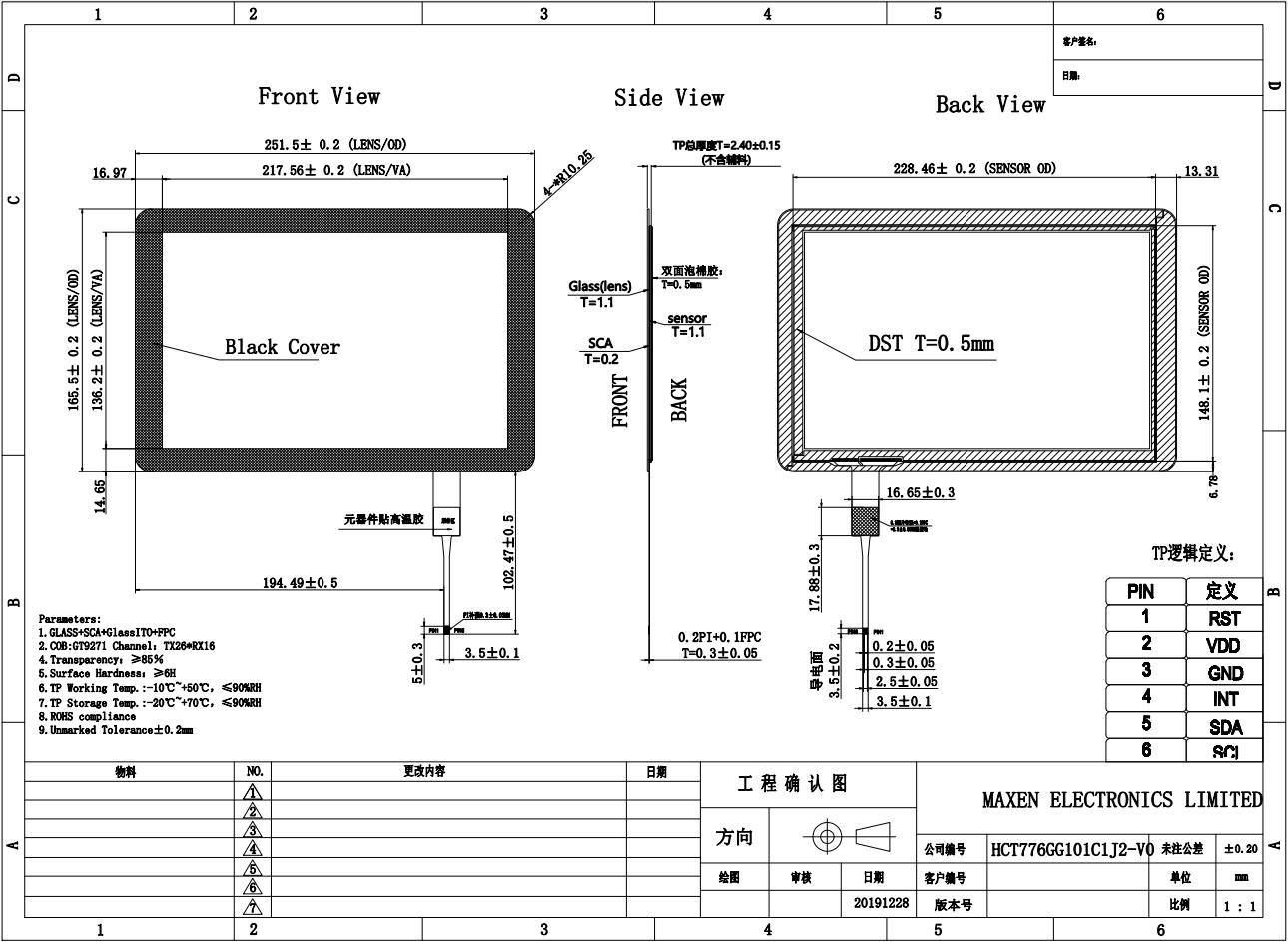

Outline Dimension |
251.50x165.50x2.40 mm |
|
Valid Area |
217.56x136.2 mm |
|
Working Voltage |
2.8-3.3V |
|
Custom Touch |
Available |
|
Working Temperature |
-20℃~ 70℃ |
|
Storage Temperature |
-30℃~ 80℃ |
Product Structure
Interface Pin Function
|
PIN NO. |
Function |
|
1 |
RST |
|
2 |
VDD |
|
3 |
GND |
|
4 |
INT |
|
5 |
SDA |
|
6 |
SCL |
