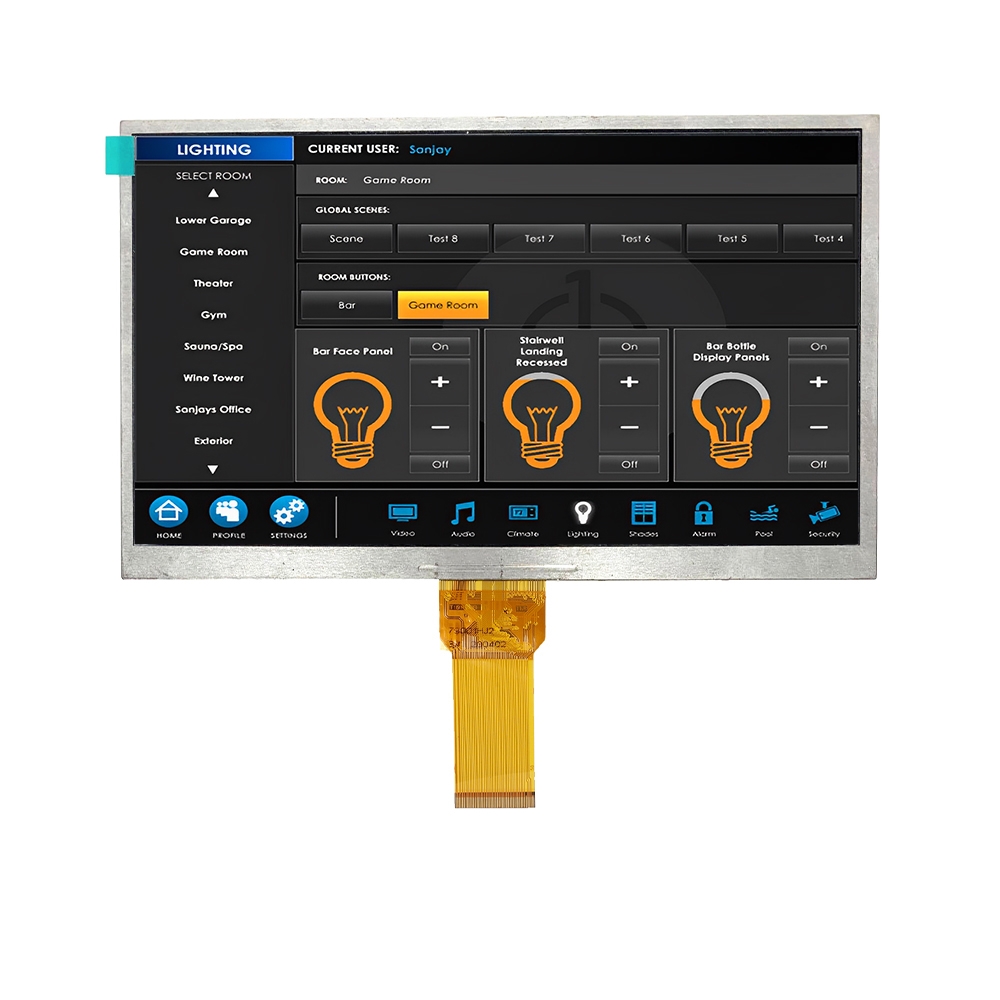

10.1 inch LCD Screen

< >

Part NO: MX-B101HR50-TNX20
► Size: 10.1"
► Resolution: 1024*600 Pixels
► Display Mode: TN
► Brightness: 230 Nits
► Interface: RGB 50 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B101HR50-TNX20 is a standard 10.1 inch LCD screen that features a 1024x600 pixel resolution and utilizes TN technology. This 10.1 inch LCD display has a viewing direction at 6 o‘clock and a standard brightness of 230 nits. This 10.1 inch LCD module uses an RGB 50-pin interface and is equipped with an EK79001 driver IC. It operates effectively in temperatures ranging from -20 ℃ to 70 ℃, and can withstand storage temperatures from -30 ℃ to 80 ℃. In addition to this 10.1 inch LCD panel, there are versions available with the same pixel density but with IPS technology, higher brightness (500/1000 nits), higher resolution at 1280x800, and alternative interfaces like LVDS, MIPI, and EDP. The 10.1 inch LCD screen (MX-B101HR50-TNX20) is an ideal display solution for a variety of applications, including tablets, navigation devices, and industrial control systems.

Product Structure

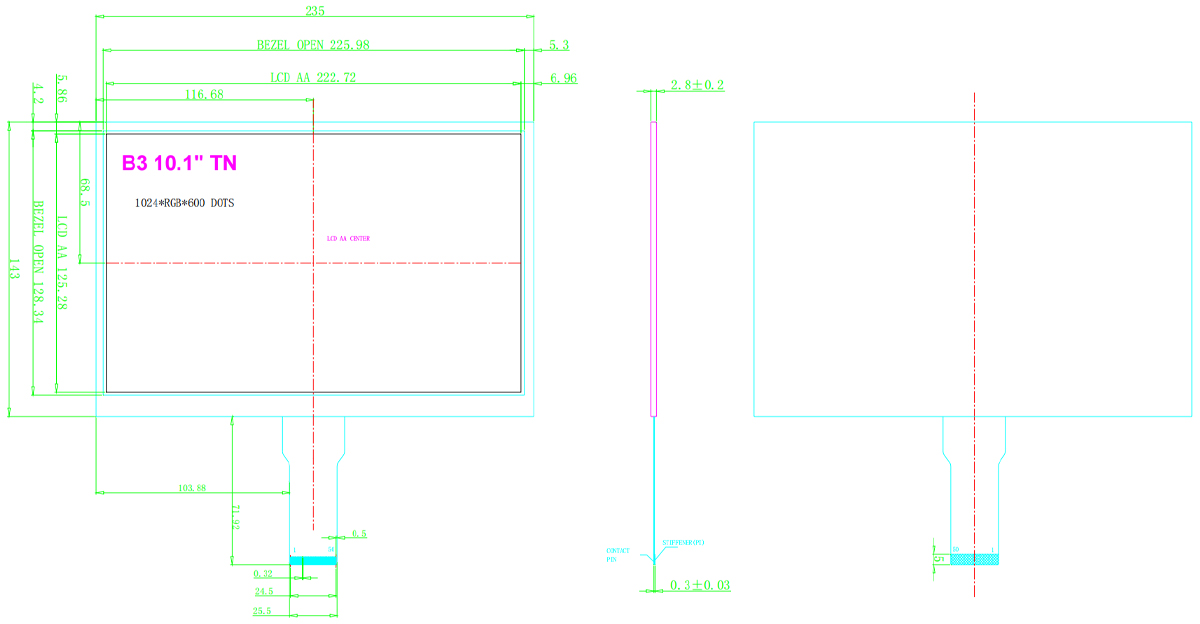

Drawing of 10.1 inch LCD Screen

LCD Pin Function (RGB 50 PIN)

Pin No.	Symbol	Functional
1	LEDA	LED Anode
2	LEDA	LED Anode
3	LEDK	LED Cathode
4	LEDK	LED Cathode
5	GND	Digital Ground
6	VCOM	For external VCOM DC input
7	DVDD	Digital Power
8	MODE	DE/SYNC mode select MODE=H: DE mode( normally pull high) MODE=L: HSD/VSD mode
9	DE	Data enable signal
10	VSYNC	Vertical sync input. Negative polarity
11	HSYNC	Horizontal sync input. Negative polarity
12~19	B7~B0	Blue data Input
20~27	G7~G0	Green data Input
28~35	R7~R0	Red data Input
36	GND	Digital Ground
37	DCLK	Clock input
38	GND	Digital Ground
39	L/R	Source right or left sequence control SHLR=H: right shift, Left → Right SHLR=L: left right, Right → Left
40	U/D	Gate up or down scan control UPDN=H: up shift, Down → Up UPDN=L: down shift, Up → Down
41	VGH	Positive Power for TFT
42	VGL	Negative Power for TFT
43	AVDD	Analog Power
44	RSTB	Global reset pin.Active low to enter reset state Suggest to connecting with an RC reset circuit for stability. Normally pull high.（RC circuit :R=10KΩ，C=1uF）
45	NC	Not connect
46	VCOM	For external VCOM DC input
47	DITHB	Dithering setting
48	GND	Digital Ground
49	NC	Not connect
50	NC	Not connect

ABSOLUTE MAXIMUM RATINGS (GND=AGND=0V)

Parameter	Symbol	Min	Max	Unit
Power supply1	V_DD	-0.5	3.96	V
Power supply2	Avdd	-0.5	13.85	V
Operating temperature	T_OPR	-20	70	℃
Storage temperature	T_STG	-30	80	℃

Input voltage refer list

Parameter	Symbol	Value	Unit	Remarks
TFT Gate ON Voltage	VGH	21	V	-
TFT Gate Off Voltage	VGL	-8	V	-
TFT Common Electrode Voltage	VCOM	3.8	V	NOTE
Analog Power Supply Voltage	AVDD	10.85	V	-

Note: Please adjust Vcom to make the flicker level be minimum.

Backlight Characteristic

Item	Symbol	Min.	Typical	Max.	Unit
LED module Forward voltage	VLED	-	9.6	-	V
LED module current	ILED	-	160	-	mA
L/G Surface Luminance★1	LS	200	230	-	Cd/m²
LCM Surface brightness uniform★2	LD	80	-	-	%
LED Life Time	-	30,000	50,000	-	Hr
