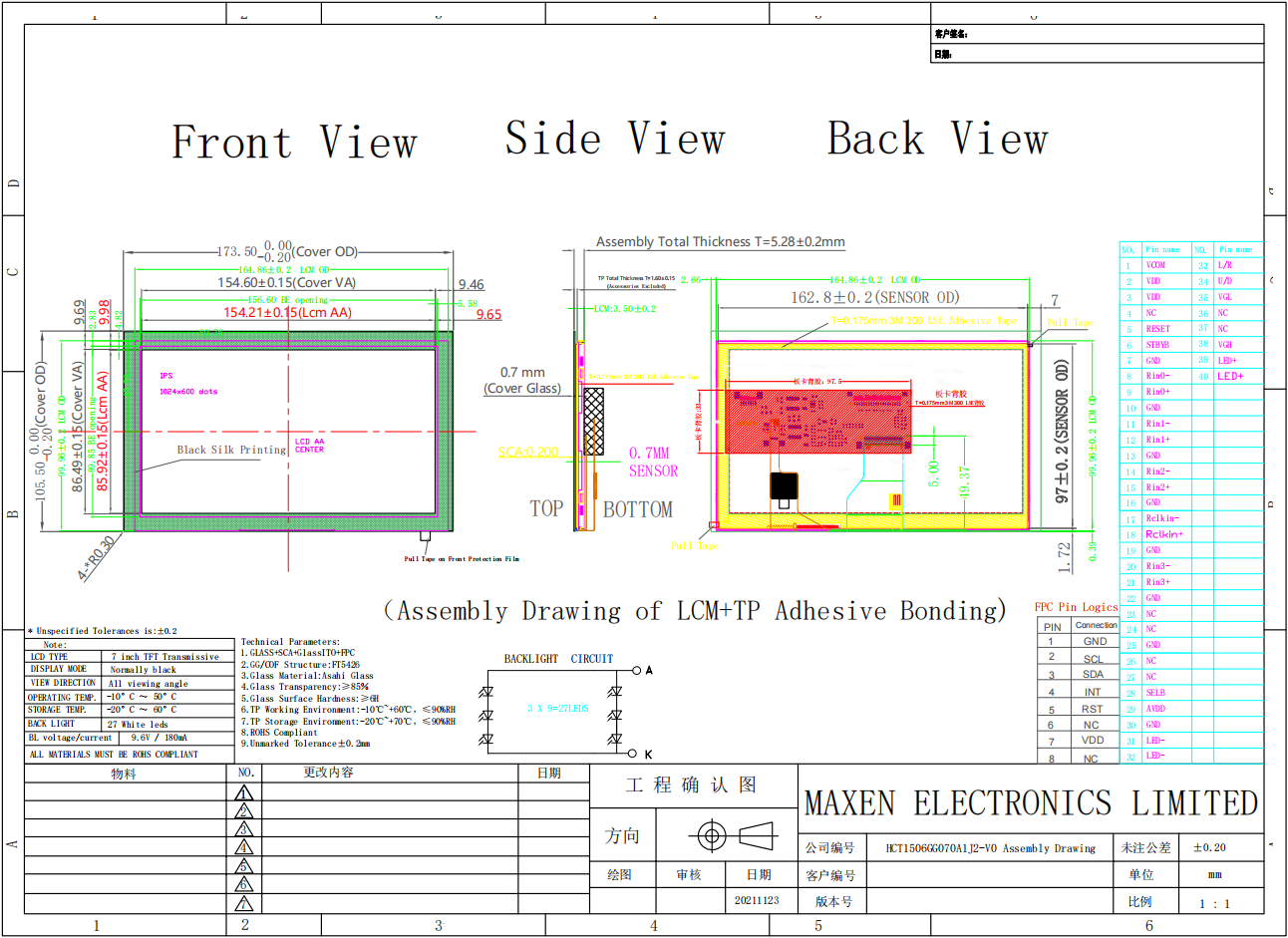

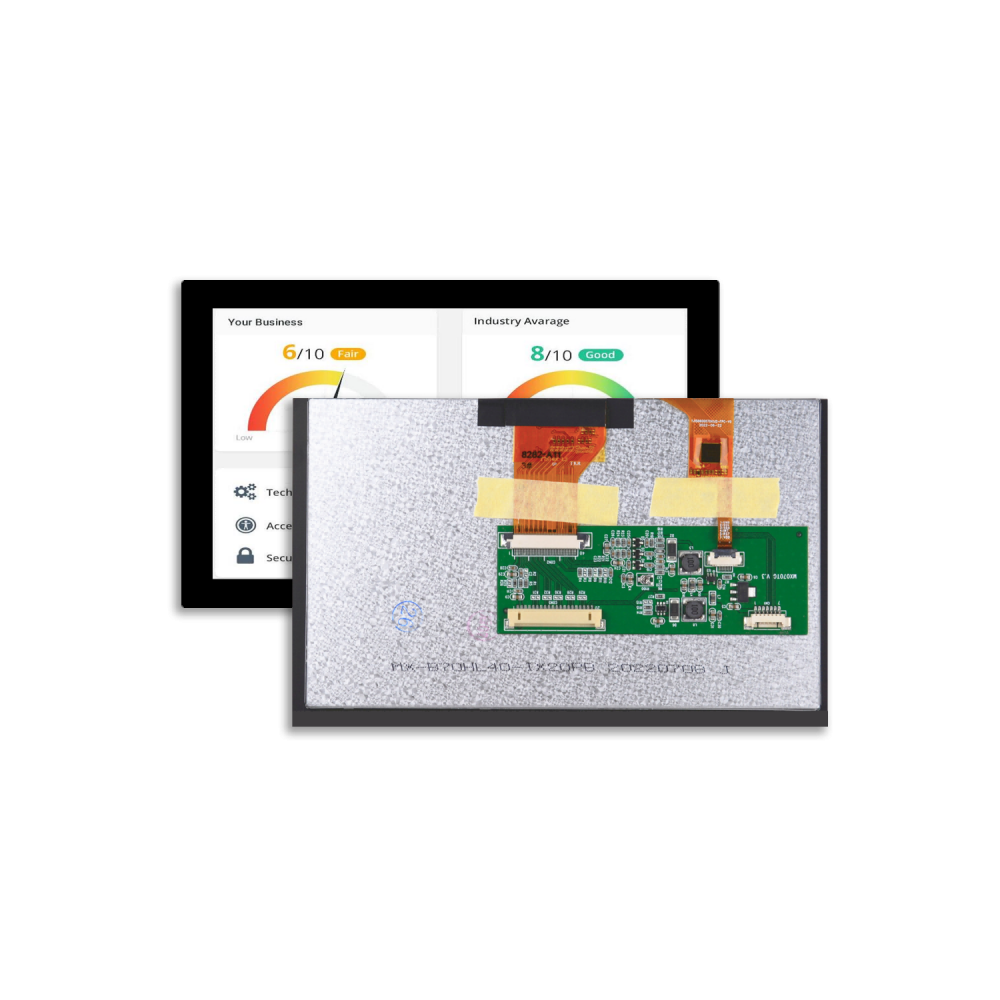

Product Structure
|
Pin No. |
Symbol |
Functional |
|
1 |
VCOM |
Common Voltage |
|
2~3 |
VDD |
Power Supply for digital circuit |
|
4 |
NC |
No connection |
|
5 |
RESET |
Global reset pin |
|
6 |
STBYB |
Stand by mode, Normally pulled high |
|
7 |
GND |
Ground |
|
8 |
Rin0- |
-LVDS differential data input |
|
9 |
Rin0+ |
+LVDS differential data input |
|
10 |
GND |
Ground |
|
11 |
Rin1- |
-LVDS differential data input |
|
12 |
Rin1+ |
+LVDS differential data input |
|
13 |
GND |
Ground |
|
14 |
Rin2- |
-LVDS differential data input |
|
15 |
Rin2+ |
+LVDS differential data input |
|
16 |
GND |
Ground |
|
17 |
RclkIN- |
-LVDS differential clock input |
|
18 |
RclkIN+ |
+LVDS differential clock input |
|
19 |
GND |
Ground |
|
20 |
Rin3- |
-LVDS differential data input |
|
21 |
Rin3+ |
+LVDS differential data input |
|
22 |
GND |
Ground |
|
23-24 |
NC |
No connection |
|
25 |
GND |
Ground |
|
26 |
NC |
No connection |
|
27 |
NC |
No connection |
|
28 |
SELB |
6bit / 8bit mode select, L=8BIT, H=6BIT |
|
29 |
AVDD |
Power for Analog Circuit |
|
30 |
GND |
Ground |
|
31-32 |
LED- |
LED Cathode |
|
33 |
L/R |
Horizontal inversion |
|
34 |
U/D |
Vertical inversion |
|
35 |
VGL |
Gate OFF Voltage |
|
36 |
NC |
No connection |
|
37 |
NC |
|
|
38 |
VGH |
Gate ON Voltage |
|
39-40 |
LED+ |
LED Anode |
|
PIN NO. |
Connection |
|
1 |
GND |
|
2 |
SCL |
|
3 |
SDA |
|
4 |
INT |
|
5 |
RST |
|
6 |
NC |
|
7 |
VDD |
|
8 |
NC |
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Power supply 1 |
VDD |
-0.5 |
3.96 |
V |
|
Power supply 2 |
Avdd |
-0.5 |
13.8 |
V |
|
Operating temperature |
TOPR |
-20 |
70 |
℃ |
|
Storage temperature |
TSTG |
-30 |
80 |
℃ |
|
VGH |
18V |
|
VGL |
-6V |
|
AVDD |
9.6V |
|
VCOM |
3.2V+/-0.1 |
|
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
LED module Forward voltage |
VLED |
- |
9.3 |
9.6 |
V |
|
LED module current |
ILED |
- |
180 |
- |
mA |
|
L/G Surface Luminance ★1 |
LS |
- |
350 |
- |
cd/m2 |
|
LCM Surface brightness uniform ★2 |
LD |
80 |
- |
- |
% |
