General Specification
Product Structure

Item |
Specification |

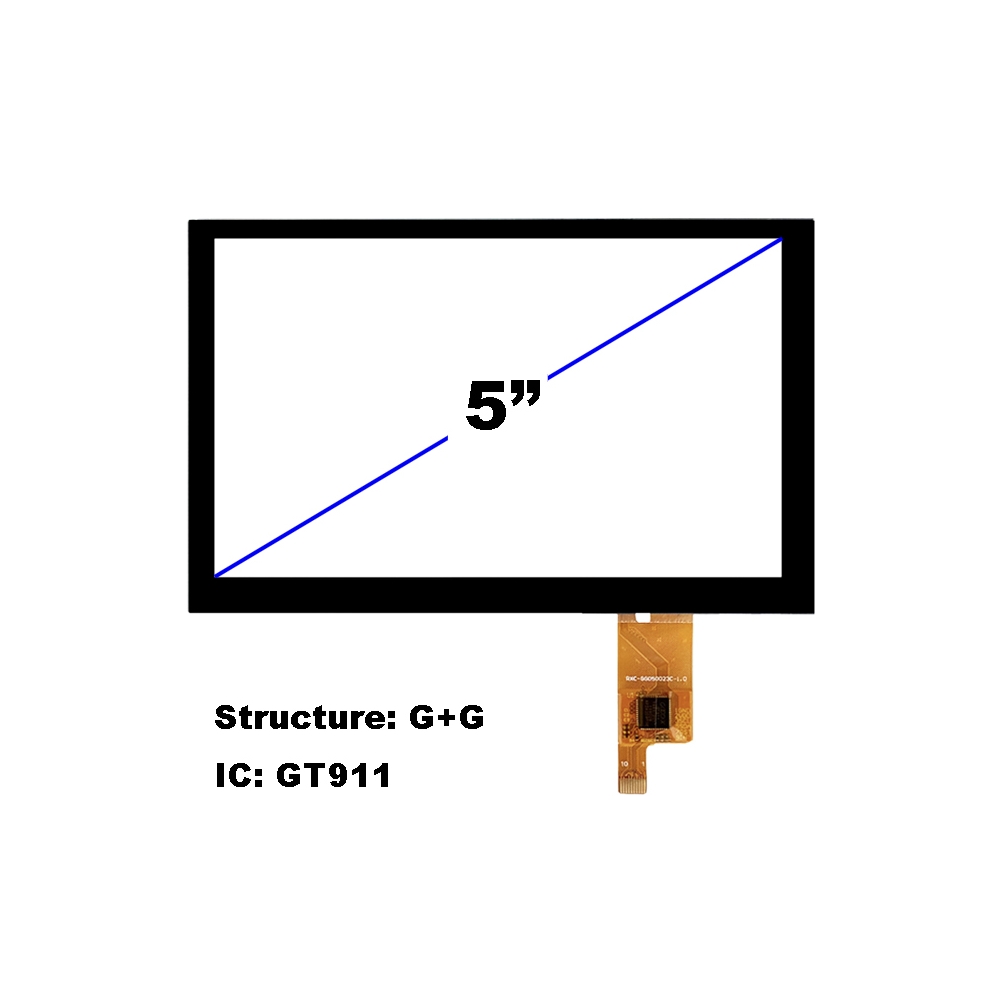

Touch Screen Size |
5.0" |
Touch controller |
Goodix GT911 |
Touch Interface |
I2C |
Pin Number |
10pin |
Structure |
Glass+Glass |
Glass thickness |
1.10 mm |
Sensor thickness |
0.55 mm |
Outline Dimension |
120.70x76.30x1.85 mm |
Valid Area |
109.00x65.80 mm |
Working Voltage |
2.8-3.3V |
Custom Touch |
Available |
Working Temperature |
-10℃~ 60℃ |
Storage Temperature |
-20℃~ 70℃ |
Product Structure

Interface Pin Function
PIN NO. |
Function |
1 |
VSS |
2 |
VDD |
3 |
SCL |
4 |
VSS |
5 |
SDA |
6 |
VSS |
7 |
RST |
8 |
NC |
9 |
INT |
10 |
VSS |
