General Specification
Product Structure

Item |
Specification |
Touch Screen Size |
8.0" |
Touch controller |
Goodix GT911 |
Touch Interface |
I2C |
Pin Number |
6pin |
Structure |
Glass+Glass |
Glass thickness |
0.70 mm |
Sensor thickness |
0.70 mm |
Outline Dimension |
115.10x184.10x1.60 mm |
Valid Area |
108.64x173.22 mm |
Working Voltage |
2.8-3.3V |
Custom Touch |
Available |
Working Temperature |
-20℃~ 50℃ |
Storage Temperature |
-30℃~ 60℃ |

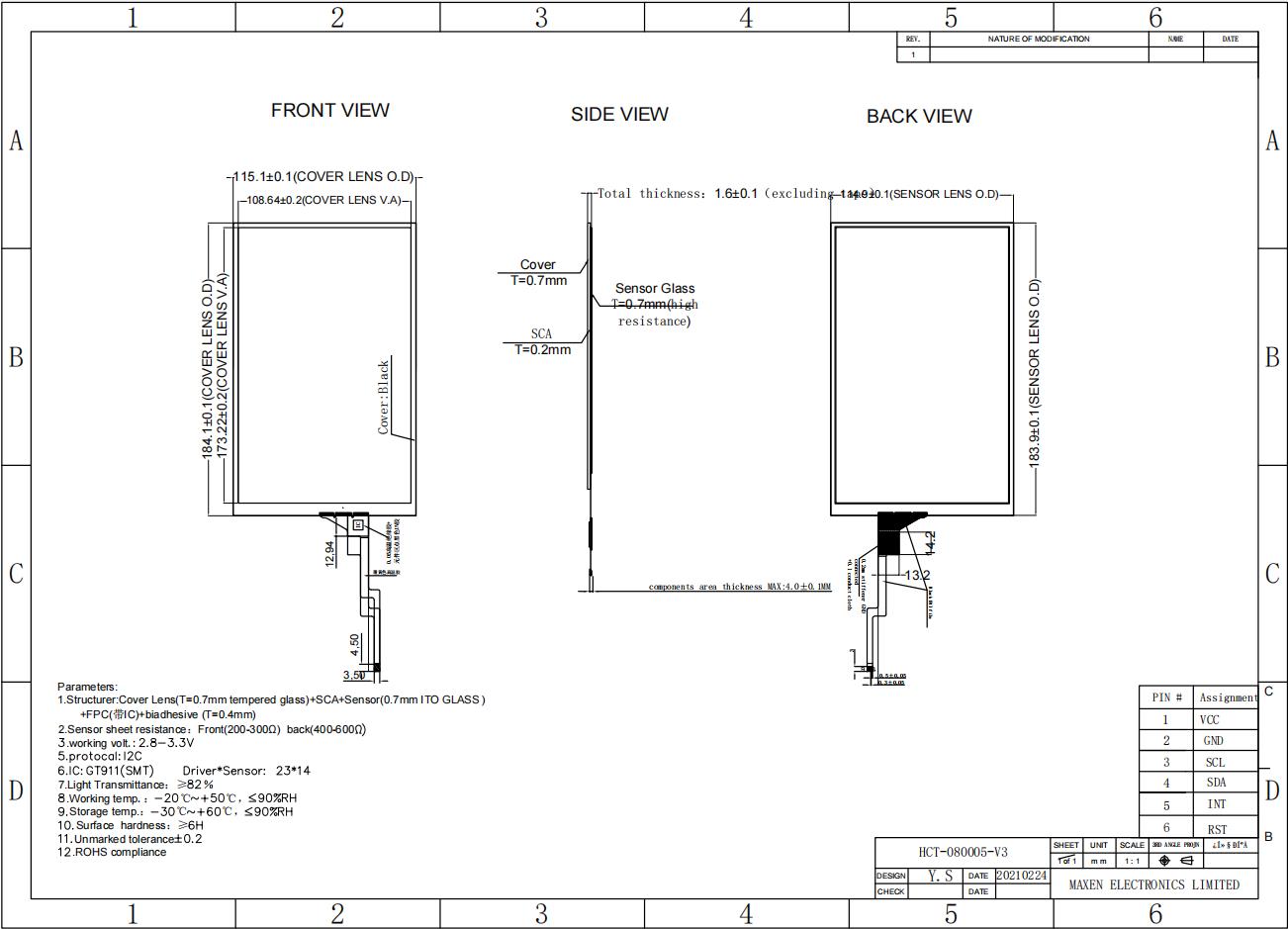

Product Structure

Interface Pin Function
PIN NO. |
Function |
1 |
VCC |
2 |
GND |
3 |
SCL |
4 |
SDA |
5 |
INT |
6 |
RST |
