MAXEN MX-B43HR-40IS141K-F1698 is OCA Bonding 4.3 inch IPS LCD Touch Screen with 800x480 resolution. Feature with 1000 nits sunlight readable high brightness, this 4.3 inch IPS LCD Touch Screen is a high-quality display that offers exceptional visual clarity and responsive touch sensitivity. Featuring an advanced OCA (Optically Clear Adhesive) bonding technology, this LCD touch screen provides excellent color accuracy and a wide viewing angle, making it perfect for a range of applications including gaming, navigation, and industrial automation. With its compact size and sleek design, the OCA Bonding 4.3 inch IPS LCD Touch Screen is easy to integrate into any project, and its robust construction ensures long-lasting durability and reliable performance. Whether you‘re looking to upgrade an existing device or create a new one from scratch, this LCD touch screen is an excellent choice that delivers exceptional quality and value.

ITEM	STANDARD VALUES
LCD Size	4.3"
Resolution	800x480
TFT Type	IPS
Interface Type	24 BIT-RGB
Touch Controller	HY4633
Touch Interface	I2C
LCD Pin Number	40pin
Outline Dimension	105.1(W)x66.8(H)x4.68(D) mm
Active Area	154.2(W)x85.92(H) mm
Current for LED Backlight	40mA
Voltage for LED Backlight	24V
Brightness	1000 Nits
Bonding Method	Optical Bonding (OCA)

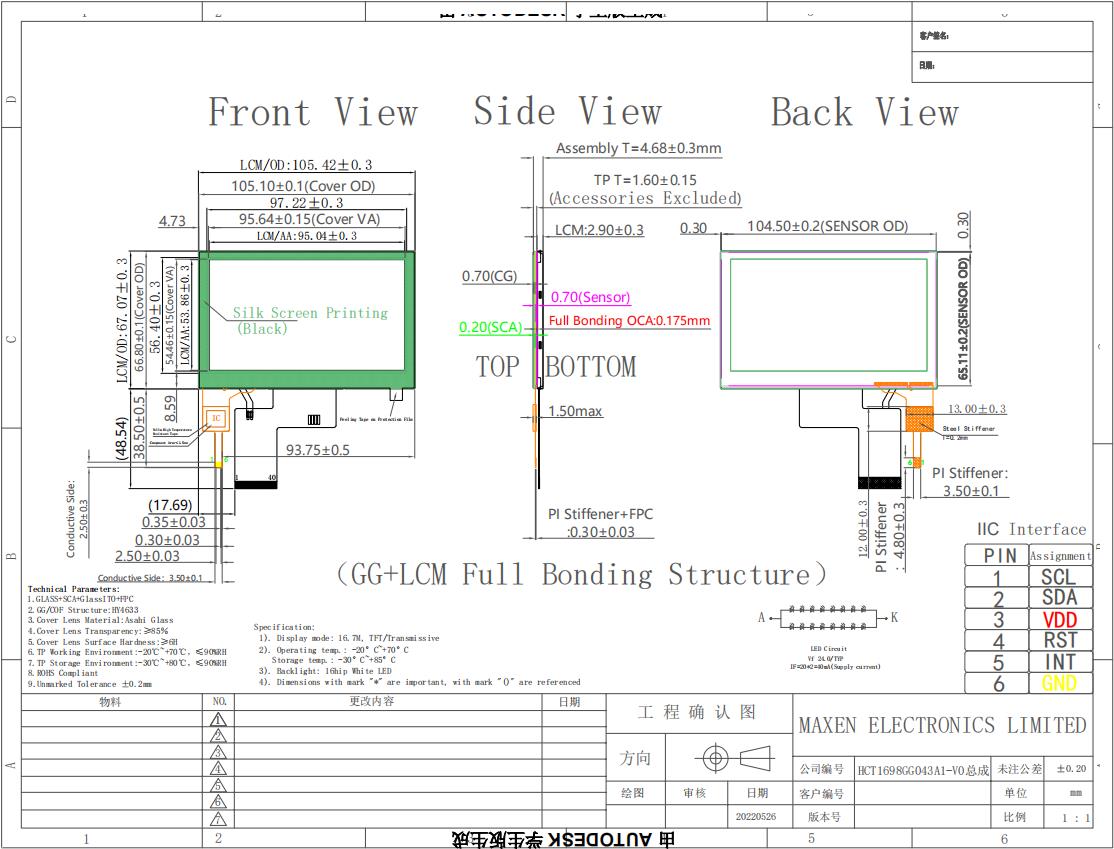

Product Structure


LCD PIN Function

Pin NO.	Symbol	Description.
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Stand by mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin
