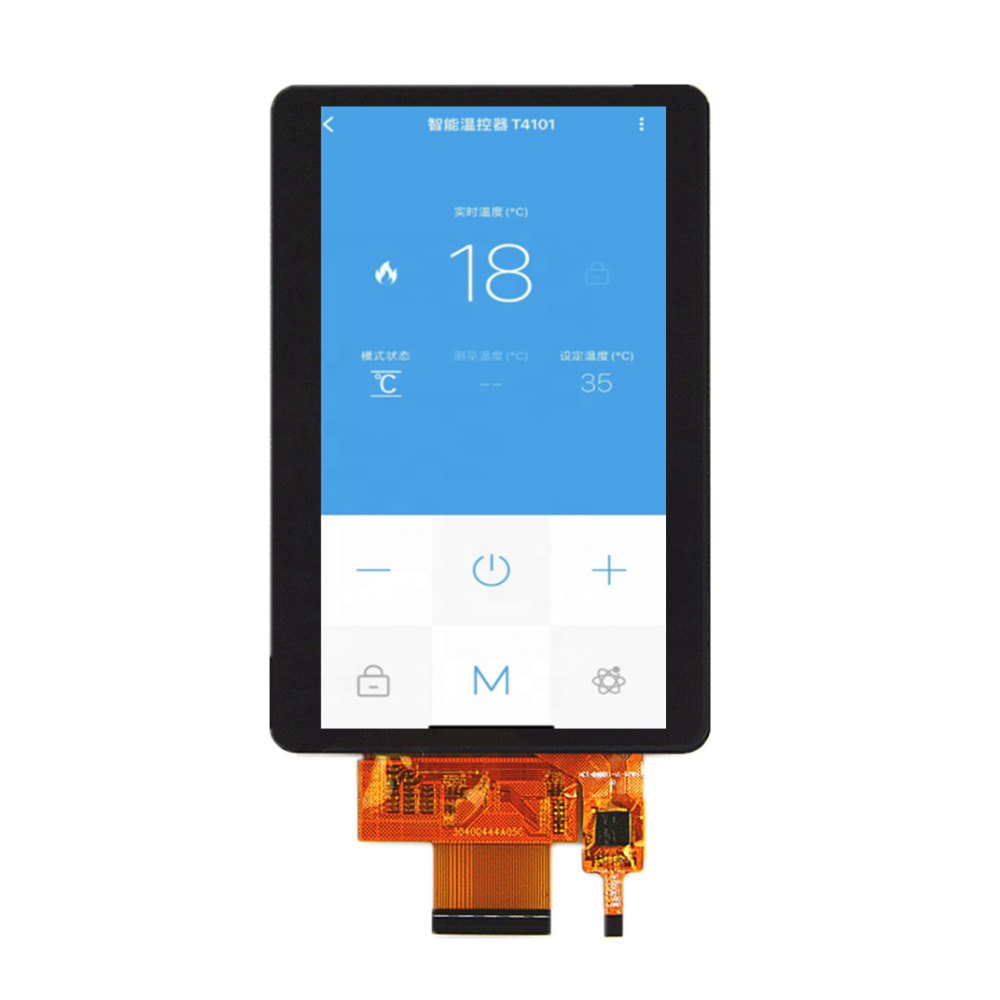

4.3 inch LCD Touch Display with OCA Bonding

480*800 IPS 4.3 inch LCD Touch Display with OCA Bonding
► Module NO: MX-N43HR42-IT30-F011
► Size: 4.3"
► Resolution: 480*800 Pixels
► Display Mode: IPS
► Brightness: 350 nits
► Interface: RGB 42 PIN
► Display Color: 16.7M
► Projected Capacitive Touch Screen
-G+G Structure
- I2C Interface
- Multi-Touch (5-10 points)
- GT911 Touch Screen

Make an inquiry

Datasheet Download

Description

MAXEN MX-N43HR42-IT30-F011 is 4.3 inch LCD Touch Display with OCA Bonding. This product is a 4.3-inch LCD touch display with IPS (In-Plane Switching) technology and a resolution of 480 * 800 pixels. It has a high definition picture quality and a bright color, with OCA bonding for improved image quality and resolution. With its high resolution and wide viewing angle, it provides a comfortable reading experience. It is designed for use in commercial and industrial applications, such as industrial automation, medical imaging systems, and photographic equipment. It also has multiple connection options, including USB, HDMI, I2C, and VGA to accommodate different applications. In addition, it features low power consumption, reduced noise interference and long-term stability.

ITEM	STANDARD VALUES
LCD Size	4.3 inch
Resolution	480*800
TFT Type	IPS
Interface Type	RGB
Touch Controller	GT911
Touch Interface	I2C
Outline Dimension	79.20(W)x120.30(H)x4.325(D) mm
Active Area	56.76(W)x94.20(H) mm
Current for LED Backlight	40mA
Voltage for LED Backlight	10.8V~13.6V
Brightness	350 Nits
Touch Screen	PCAP
Bonding Method	Optical Bonding

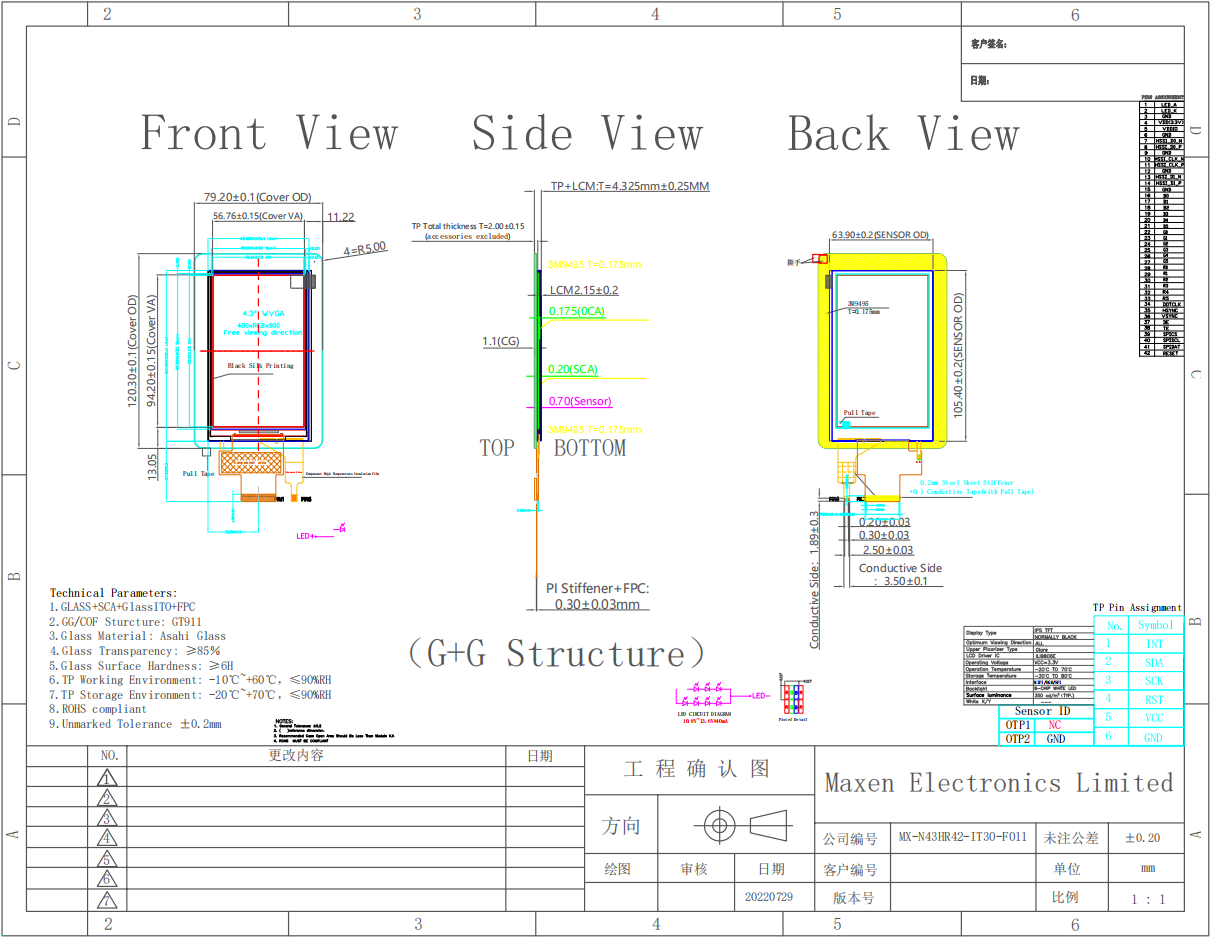

Product Structure

LCD PIN Function

Pin No.	Symbol	Description
1	LEDA	Anode of LED backlight
2	LEDK	Cathode of LED backlight
3	GND	Power ground
4	VCC(3.3V)	Supply voltage for analog
5	VDDIO	Supply voltage for logic
6	GND	Power ground
7	HDDI_D0_N	MIPI DSI differential data pair (D0-)
8	HDDI_D0_P	MIPI DSI differential data pair (D0+)
9	GND	Power ground
10	HDDI_CLK_N	MIPI DSI differential clock pair (CLK-)
11	HDDI_CLK_P	MIPI DSI differential clock pair (CLK+)
12	GND	Power ground
13	HDDI_D1_N	MIPI DSI differential data pair (D1-)
14	HDDI_D1_P	MIPI DSI differential data pair (D1+)
15	GND	Power ground
16~21	B0~B5	Blue data
22~27	G0~G5	Green data
28~33	R0~R5	Red data
34	DOTCLK	Pixel clock
35	HSYNC	Horizontal sync signal
36	VSYNC	Vertical sync signal
37	DE	Data enable
38	TE	Tearing effect output
39	SPICS	Chip select signal input terminal, active at “L”
40	SPISCL	Serial clock
41	SPIDAT	Serial data input pin
42	NC	No connection

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply voltage for analog	VCC	-0.3	4.6	V
Supply voltage for logic	VDDIO	-0.3	4.6	V
Supply current (One LED)	I_LED		30	mA
Operating temperature	T_OP	-20	70	℃
Storage temperature	T_ST	-30	80	℃

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit	Applicable terminal
Supply Voltage for Analog	VCC	2.5	3.8	3.6	V
Supply Voltage for Logic	VDDIO	1.65	1.8	3.6	V
Input Voltage	V_IL	-0.3	-	0.3 VDDIO	V
Input Voltage	V_IH	0.7 VDDIO	-	VDDIO	V
Input leakage Current	I_LKG	-1		1	μA

Backlight Characteristics

Item	Symbol	Value			Unit	Remark
Item	Symbol	Min.	Typ.	Max.	Unit	Remark
Voltage for LED Backlight	V_F	10.8	12.8	13.6	V	I_L=40mA
Current for LED Backlight	I_L		40		mA
Power Consumption	P		0.512		W
LED Life Time		30,000	50,000		Hr	Note
