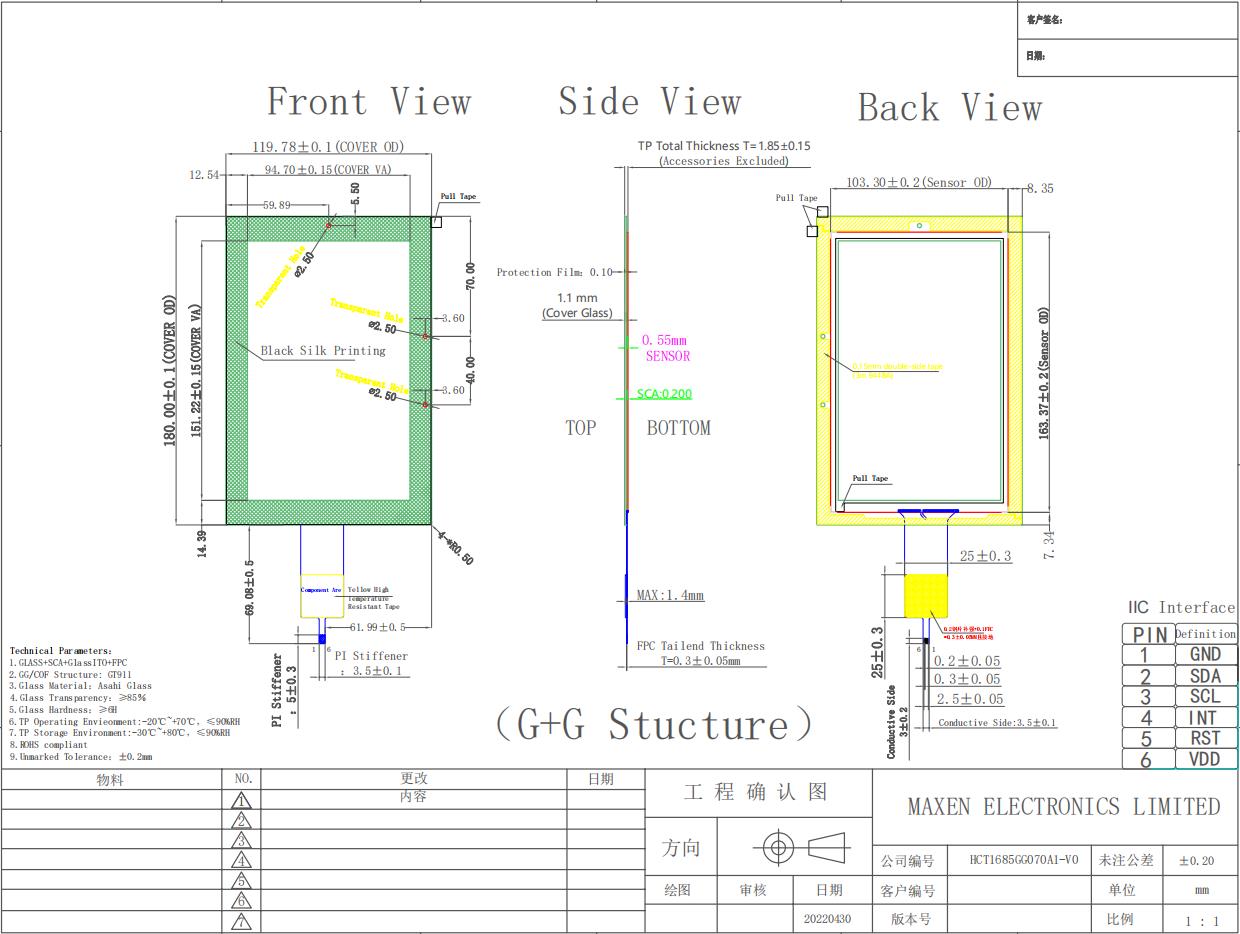

PIN NO

SYMBOL

DESCRIPTION

1

LEDA

Power for LED backlight (Anode)

2

LEDA

Power for LED backlight (Anode)

3

LEDA

Power for LED backlight (Anode)

4

NC

No connect

5

LEDK

Power for LED backlight (Cathode)

6

LEDK

Power for LED backlight (Cathode)

7

LEDK

Power for LED backlight (Cathode)

8

LEDK

Power for LED backlight (Cathode)

9

GND

Ground

10

GND

Ground

11

MIPI_D2+

HSSI_D2_Pare differential small amplitude signals

12

MIPI_D2-

HSSI_D2_Nare differential small amplitude signals

13

GND

Ground

14

MIPI_D1+

HSSI_D1_Pare differential small amplitude signals

15

MIPI_D1-

HSSI_D1_Nare differential small amplitude signals

16

GND

Ground

17

MIPI_CLK+

HSSI_CLK_Pare differential small amplitude signals

18

MIPI_CLK-

HSSI_CLK_Nare differential small amplitude signals

19

GND

Ground

20

MIPI_D0+

HSSI_D0_Pare differential small amplitude signals

21

MIPI_D0-

HSSI_D0_Nare differential small amplitude signals

22

GND

Ground

23

MIPI_D3+

HSSI_D3_Pare differential small amplitude signals

24

MIPI_D3-

HSSI_D3_Nare differential small amplitude signals

25

GND

Ground

26

NC

27

RESET

Reset signal

28

NC

29

VDD1V8

I/O power supply

30

VDD3V3

Power supply 3.0-3.6V

31

VDD3V3

Power supply 3.0-3.6V

Item

Symbol

Min.

Typ.

Max.

Unit

Analog Supply Voltage

VCI

3.0

3.3

3.6

V

I/O Operating Voltage

VDDI

1.7

1.8

1.9

V

TFT Gate High Voltage

VGH

14

15

18

V

TFT Gate Low Voltage

VGL

-12

-10

-8

V

TFT Common Electrode Voltage

VCOMDC

-2.5

-

0

V

TFT Feed-Through Voltage

△VP

0.34

1.34

2.34

V

Input Signal Voltage

VIH

0.7*VDDI

-

VDDI

VIH

VIL

GND

-

0.3*VDDI

VIL

Output Signal Voltage

VOH

0.8*VDDI

-

VDDI

VOH

VOL

GND

-

0.2*VDDI

VOL
