5.7 inch ~ 10.4 inch Industrial LCD Module-MAXEN - TFT LCD Display Manufacturer, LCD Panel Factory, Touch Screen Supplier

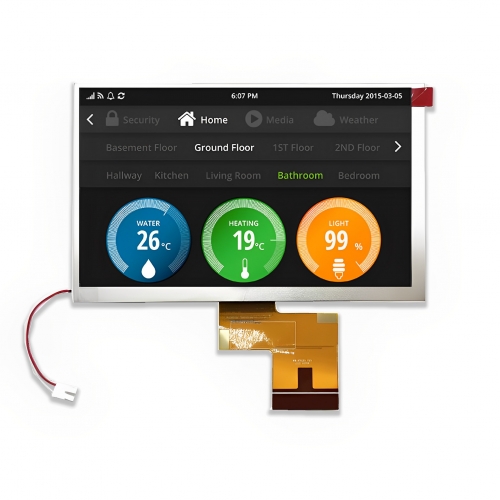

: 5.7" ~ 10.4" Industrial LCD Module

This section primarily showcases 5.7 inches, 7 inches, 8.4 inches, 9 inches, and 10.4 inches Industrial LCD Modules. These modules come in both TN and IPS types, with the capability of achieving a brightness of up to 1000 nits. If you wish to explore additional sizes or have any inquiries, please feel free to contact our dedicated sales team for more information.

SEND INQUIRY

Size	Resolution	Model No.	Type	PIN	Interface	Brightness	Technology	Viewing Angle(T/B/L/R)	O.T	L.T	Outline Dimension	Active Area
5.7"	640x480	MX-57NR40-TWT01	Landscape	40pin	RGB	700 nits	TN	60/40/70/70	-20~70 °C	50K Hr.	127.0098.435.80	115.20*86.40
5.7	640x480	MX-B57NR40-IT04	Landscape	40pin	RGB	700 nits	IPS	80/80/80/80	-30~80 °C	50K Hr.	127.0098.438.20	115.20*86.40
7.0"	800x480	MX-U70NT40-IG48(V02)	Landscape	40pin	RGB	350 nits	IPS	80/80/80/80	-20~70 °C	50K Hr.	165.00104.095.30	152.40*91.44
8.4"	800x600	MX-V84HL20-IW011K	Landscape	20pin	LVDS	1000 nits	TN	80/60/80/80	-20~70 °C	50K Hr.	203.00142.505.70	170.40*127.80
9.0"	1024x600	MX-B90HL60-IS07	Landscape	60pin	LVDS	500 nits	IPS	80/80/80/80	-20~70 °C	30K Hr.	210.70124.605.00	196.608*114.15
10.4"	800x600	MX-B104NL20-IB05	Landscape	20pin	LVDS	350 nits	IPS	80/80/80/80	-20~70 °C	30K Hr.	236.00176.905.60	211.20*158.40
10.4"	1024x768	MX-C104HL30-IY06	Landscape	30pin	LVDS	500 nits	IPS	88/88/88/88	-30~80 °C	50K Hr.	238.60175.806.50	210.43*157.82

5.7" ~ 10.4" Industrial LCD Module
