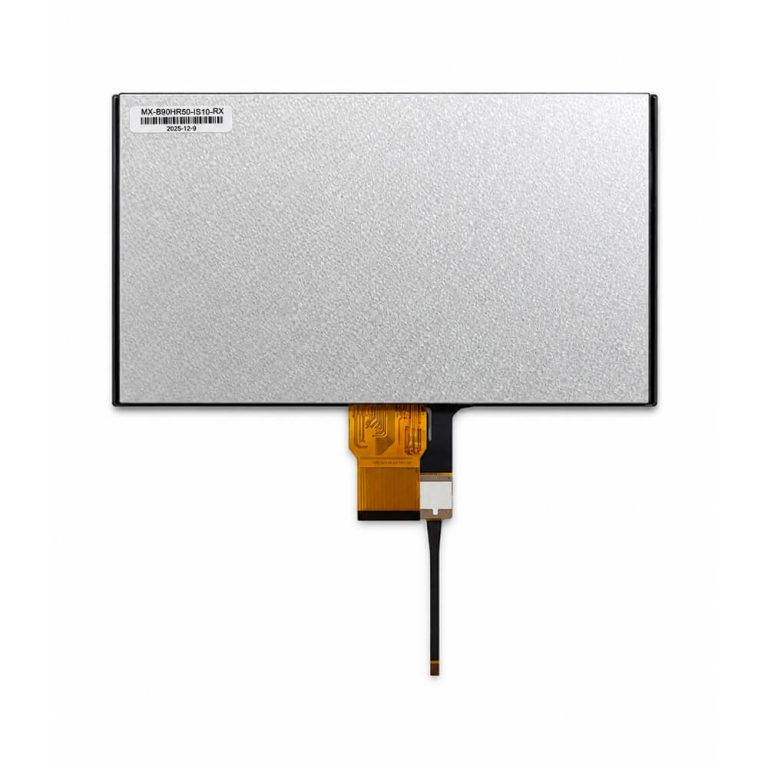

  • 9 inch IPS TFT touch screen display MX-B90HR50-IS10-RX thumbnail

9 inch Touch Screen Display

Ideal for smart locker control panels, vending machine interfaces, elevator operating panels, fitness equipment consoles, building intercom systems, and home appliance control screens.

Main Features

  • Part No. MX-B90HR50-IS10-RX
  • 9" IPS TFT Display Air Bonding with Touch Screen
  • 1024x600 resolution
  • Standard brightness 250 cd/m²
  • 80/80/80/80 all viewing angles (IPS)
  • 50-pin RGB interface
  • Capacitive Touch with GT911 Controller (I²C interface)
Get a Quote Download Specs.

MX-B90HR50-IS10-RX

9 inch Touch Screen Display MX-B90HR50-IS10-RX is an IPS touch display module designed for equipment control interfaces, self-service terminals, payment systems, smart retail devices, HMI panels, and embedded display products that need a wider interactive screen. With 1024x600 resolution, 450 nits brightness, IPS technology, and 196.61x114.15 mm active area, this 9 inch IPS TFT display provides clear image quality, stable color performance, and comfortable viewing for indoor applications. The LCD panel uses a 50-pin RGB interface for display signal transmission, while the PCAP touch panel works through a 6-pin I²C interface with GT911 touch IC for smooth touch operation. With Air Bonding and 219.93x127.92×6.60 mm module structure, this 9 inch Touch Screen Display is suitable for projects that require a reliable touch display solution with standard RGB interface and capacitive touch control.

9 inch 1024x600 ips display touch screen

  • Standard Brightness

    250 nits

  • Working Temp Range

    -10°C to 60°C

  • TFT Interface

    31-pin MIPI

  • Touch IC

    ST1633i

  • LCM Pin Definition (31-pin MIPI)
  • I²C-TP Interface

LCM Pin Definition (31-pin MIPI)

PIN NO. SYMBOL DESCRIPTION
1  LEDA Power for LED backlight(Anode)
2  LEDA Power for LED backlight(Anode)
3  LEDA Power for LED backlight(Anode)
4  NC No connect
5  LEDK Power for LED backlight(Cathode)
6  LEDK Power for LED backlight(Cathode)
7  LEDK Power for LED backlight(Cathode)
8  LEDK Power for LED backlight(Cathode)
9  GND Ground
10  GND Ground
11  MIPI_D2+ HSSI_D2_Pare differential small amplitude signals
12  MIPI_D2- HSSI_D2_Nare differential small amplitude signals
13  GND Ground
14  MIPI_D1+ HSSI_D1_Pare differential small amplitude signals
15  MIPI_D1- HSSI_D1_Nare differential small amplitude signals
16  GND Ground
17  MIPI_CLK+ HSSI_CLK_Pare differential small amplitude signals
18  MIPI_CLK- HSSI_CLK_N are differential small-amplitude signals
19  GND Ground
20  MIPI_D0+ HSSI_D0_Pare differential small amplitude signals
21  MIPI_D0- HSSI_D0_Nare differential small-amplitude signals
22  GND Ground
23  MIPI_D3+ HSSI_D3_Pare differential small amplitude signals
24  MIPI_D3- HSSI_D3_Nare differential small-amplitude signals
25  GND Ground
26  NC
27  RESET Reset signal
28  NC
29  VDD1V8 I/O power supply
30  VDD3V3 Power supply 3.0-3.6V
31  VDD3V3 Power supply 3.0-3.6V

I²C-TP Interface

PIN NO. Assignment
1  GND
2  SDA
3  SCL
4  INT
5  RST
6  VDD

Tags:

portrait TFT LCD module

step grinding PCAP

ST1633i waterproof touch IC

I2C PCAP touch panel

OCA bonded touch LCD

800x1280 touch display

MIPI TFT LCD

ips tft screen

7 inch Touch TFT LCD

7 inch IPS touch screen

vending machine touch screen

elevator panel display

building intercom screen

home appliance control display

smart locker display

FAQs

People Also Ask

Contact Us
Do you support optical bonding?

Yes. Optical bonding can be supported for projects that require better readability, reduced reflection, and improved visual stability. It is commonly considered in industrial and outdoor equipment where strong light, vibration, dust, or long-term field use place higher demands on display performance.

How can I start a custom project inquiry?

It is helpful to share the key project information at the beginning, such as screen size, resolution, interface, brightness target, touch requirement, operating environment, mounting structure, and estimated quantity. The clearer the project input is, the easier it is to recommend a more suitable display and touch solution.

What is the sample lead time?

Sample lead time depends on inventory availability and the level of customization required. Standard products typically have a fast delivery time of 1-2 weeks. Custom projects may require additional engineering design and material preparation time.

How can I choose the right TFT display solution for my project?

The right solution depends on the application environment, screen size, brightness requirement, touch function, interface, installation space, and reliability target. Sharing the project requirements early helps us recommend a more suitable display and touch configuration.

Can you support small MOQ for new projects?

Yes. We can support smaller MOQ for new designs and pilot runs, then ramp up with your mass production plan.
