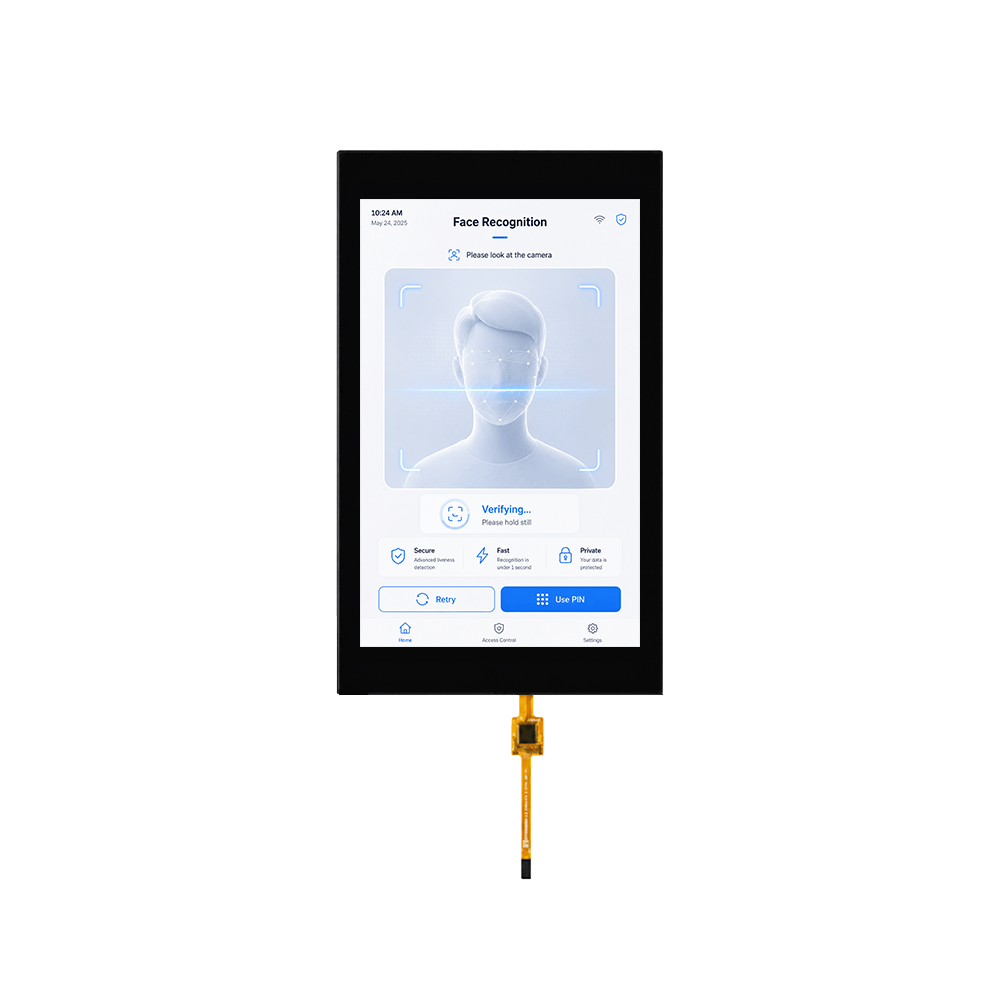

8 inch TFT LCD with Capacitive Touch Screen

Yes. MAXEN can provide portrait TFT LCD and touch display solutions in other sizes depending on project requirements. Resolution, brightness, interface, touch structure and cover glass can be selected according to the mechanical design and mainboard of the equipment. Exact available sizes should be confirmed based on the project specification.

Yes. If capacitive touch is not required, the MX-080FM40KFS-N17 can be supplied as an 8 inch TFT LCD module without the integrated touch panel. It uses the same 800×1280 portrait format and MIPI interface, making it an alternative for projects that only require display functionality. For projects requiring touch, different cover glass, bonding, brightness or interface configurations can also be evaluated based on the application.

OCA bonding helps create a more integrated LCD and touch structure by eliminating the air gap between the two layers. This can improve optical clarity, reduce internal reflections and make the display assembly more compact. For applications such as face recognition and access control terminals, it also helps deliver a cleaner front appearance and more consistent visual performance. The drawing for MX-080FM40KFS-N17-2575 specifies full OCA lamination between the touch panel and LCD.

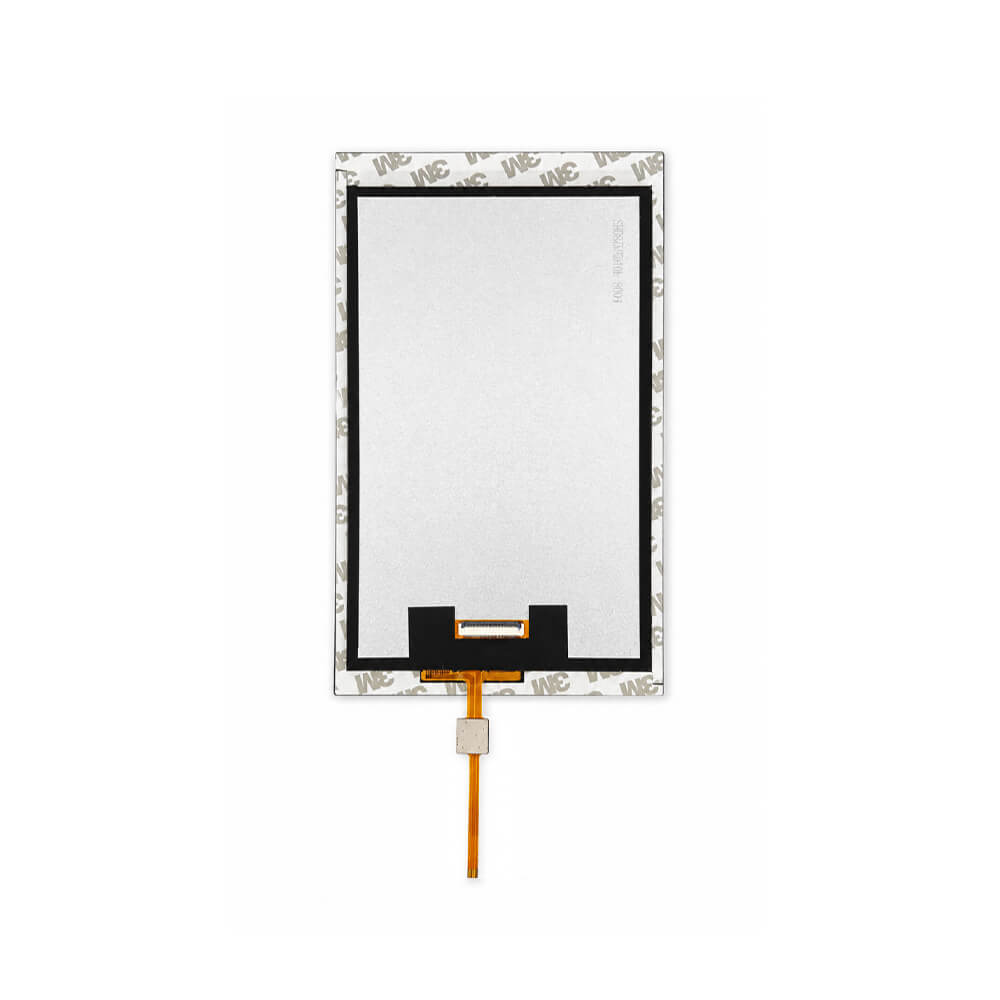

Yes. The current module uses a G+G capacitive touch structure with GT911 controller, and the drawing also defines cover glass, sensor, adhesive and FPC structure. Based on project requirements, items such as cover glass outline, black printing, bonding method, touch FPC and connector arrangement can be evaluated for customization.
