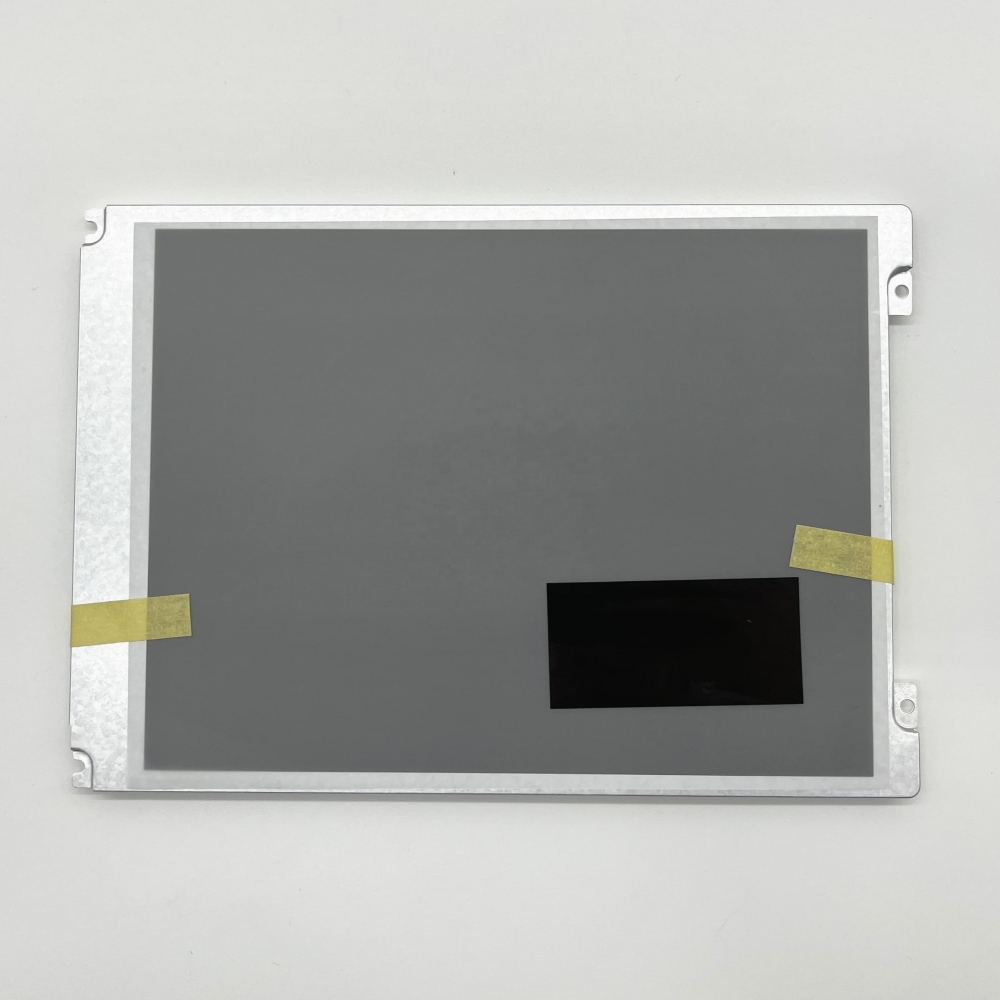

Product Structure
LCD PIN Function (LVDS 20 PIN)
|
Pin No. |
Symbol |
Description |
|
1~2 |
VDD |
Power Supply 3.3V (typical) |
|
3 |
UD |
Vertical Reverse Scan control |
|
4 |
LR |
Horizontal Reverse Scan control |
|
5 |
RxIN1- |
-LVDS differential data input (R0-R5, G0) |
|
6 |
RxIN1+ |
+LVDS differential data input (R0-R5, G0) |
|
7 |
GND |
Ground |
|
8 |
RxIN2- |
-LVDS differential data input (G1-G5, B0-B1) |
|
9 |
RxIN2+ |
+LVDS differential data input (G1-G5, B0-B1) |
|
10 |
GND |
Ground |
|
11 |
RxIN3- |
-LVDS differential data input (B2-B5, HS, VS, DE) |
|
12 |
RxIN3+ |
+LVDS differential data input (B2-B5, HS, VS, DE) |
|
13 |
GND |
Ground |
|
14 |
RxCLKIN- |
-LVDS differential clock input |
|
15 |
RxCLKIN+ |
+LVDS differential clock input |
|
16 |
GND |
Ground |
|
17 |
SEL68 |
6/8 bits LVDS data input selection (H:8bit L/NC:6bit) |
|
18 |
BIST |
H:BIST MODE, L/NC:Normal MODE |
|
19 |
RxIN4- |
-LVDS differential data input (R6-R7,G6-G7,B6-B7) |
|
20 |
RxIN4+ |
+LVDS differential data input (R6-R7,G6-G7,B6-B7) |
|
Item |
Symbol |
Min. |
Max. |
Unit |
|
Operating Temperature |
TOP |
-20 |
70 |
℃ |
|
Storage Temperature |
TST |
-30 |
80 |
℃ |
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
|
LCD Drive Voltage (Logic) |
VDD |
3.0 |
3.3 |
3.6 |
V |
|
|
VDD Current |
Black Pattern |
IDD |
- |
- |
0.097 |
A |
|
VDD Power |
Black Pattern |
PDD |
- |
- |
0.35 |
W |
|
Rush Current |
IRUSH |
- |
- |
2 |
A |
|
|
Allowable Logic/LCD Drive Ripple Voltage |
VVDD-RP |
- |
- |
200 |
mA |
|
LED backlight specification
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
|
LED Input Voltage |
VLED |
10.8 |
12 |
13.2 |
V |
|
|
LED Power Consumption |
PLED |
- |
- |
2.31 |
W |
|
|
LED Forward Voltage |
VF |
2.8 |
3.3 |
3.6 |
V |
|
|
LED Forward Current |
IF |
- |
17 |
- |
mA |
|
|
LED Life Time |
- |
30000 |
50000 |
- |
Hr |
|
|
White Luminance |
Center point |
L |
800 |
1000 |
- |
Cd/m2 |
|
Luminance Uniformity |
9 Points |
- |
70 |
75 |
- |
% |
