5 inch Optical Bonding LCD Touch Screen

Model NO: MX-I50HM40-IL04-F1022
► Size: 5.0"
► Resolution: 720*1280 Pixels
► Display Mode: IPS
► Brightness: 450 Nits
► Interface: MIPI 40 PIN
► Projected Capacitive Touch Screen
- Glass+Glass Structure
- I2C Interface
- GT911 Touch Controller

Make an inquiry

Datasheet Download

Description

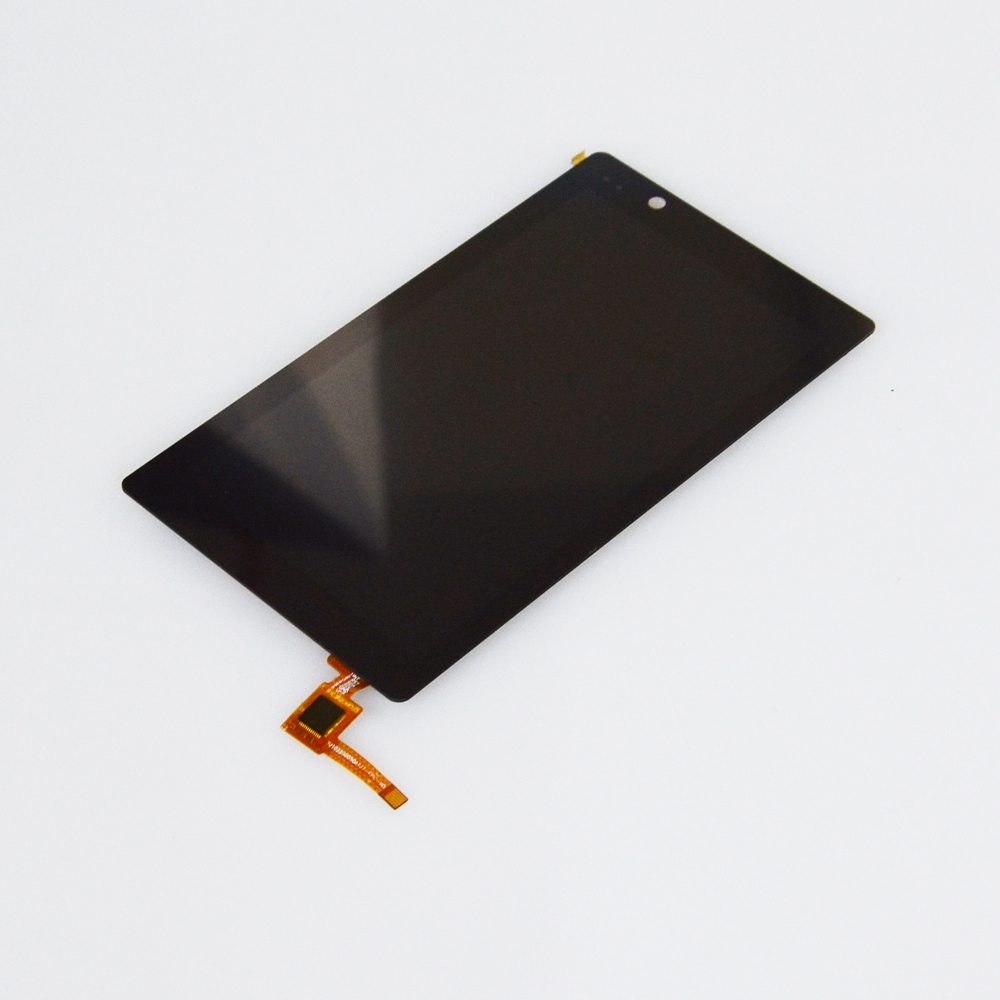

MX-I50HM40-IL04-F1022 is a 5 inch Optical Bonding LCD Touch Screen, merging a 5 inch LCD with a 5 inch capacitive touch screen using OCA bonding. The 5 inch LCD display features a 720x1280 resolution, IPS technology for wide viewing angles, a standard MIPI 40 PIN interface, and a brightness level of 450 nits. Integrated with a capacitive touch screen using OCA bonding, the G+G structure touch screen comes with a built-in GT911 IC. Optical bonding enhances the 5 inch LCD Touch Screen visibility in bright conditions, offers better touch sensitivity, increased durability, and prevents condensation and fogging, ensuring a clearer and more vibrant display.

Product Structure

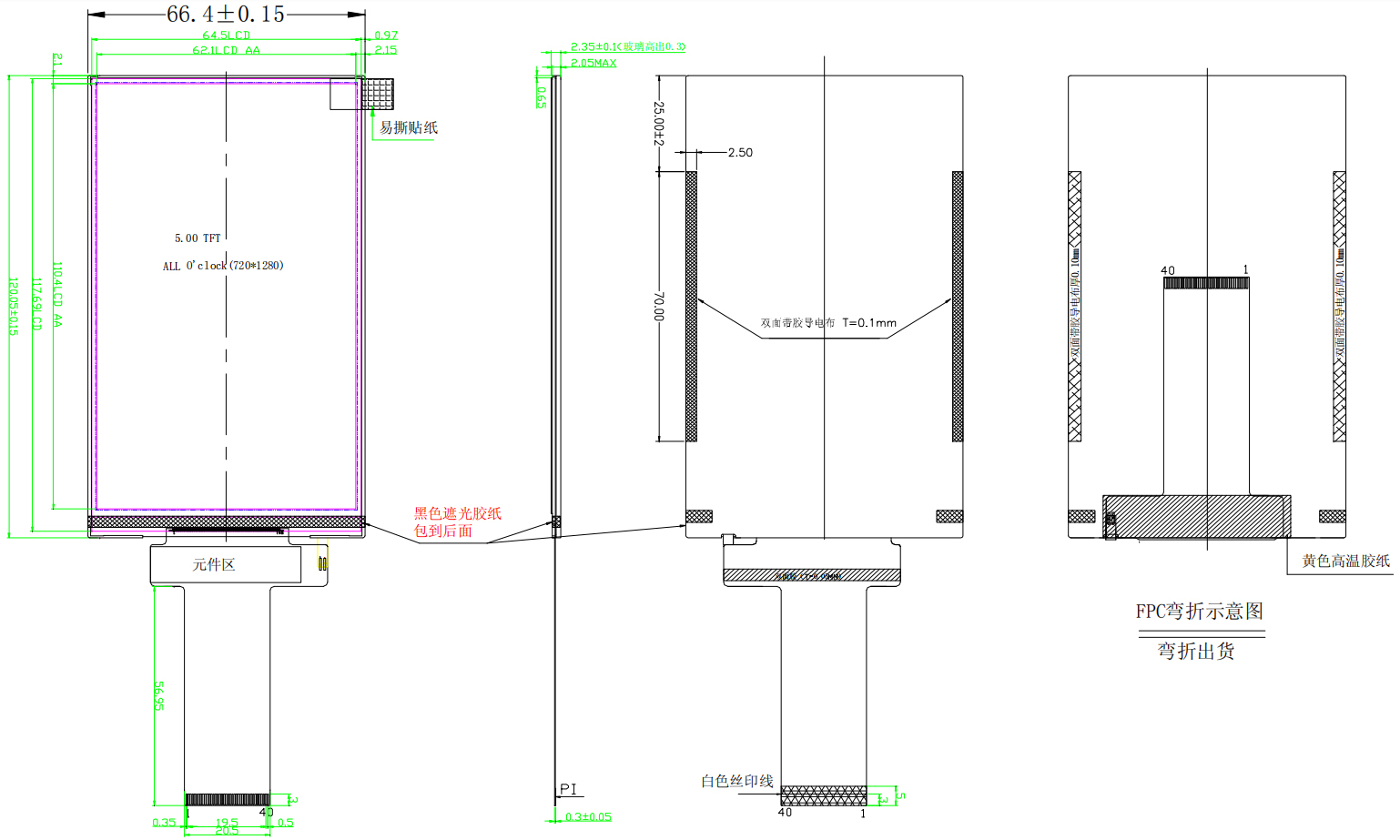

Drawing of 5 inch 720x1280 lcd display

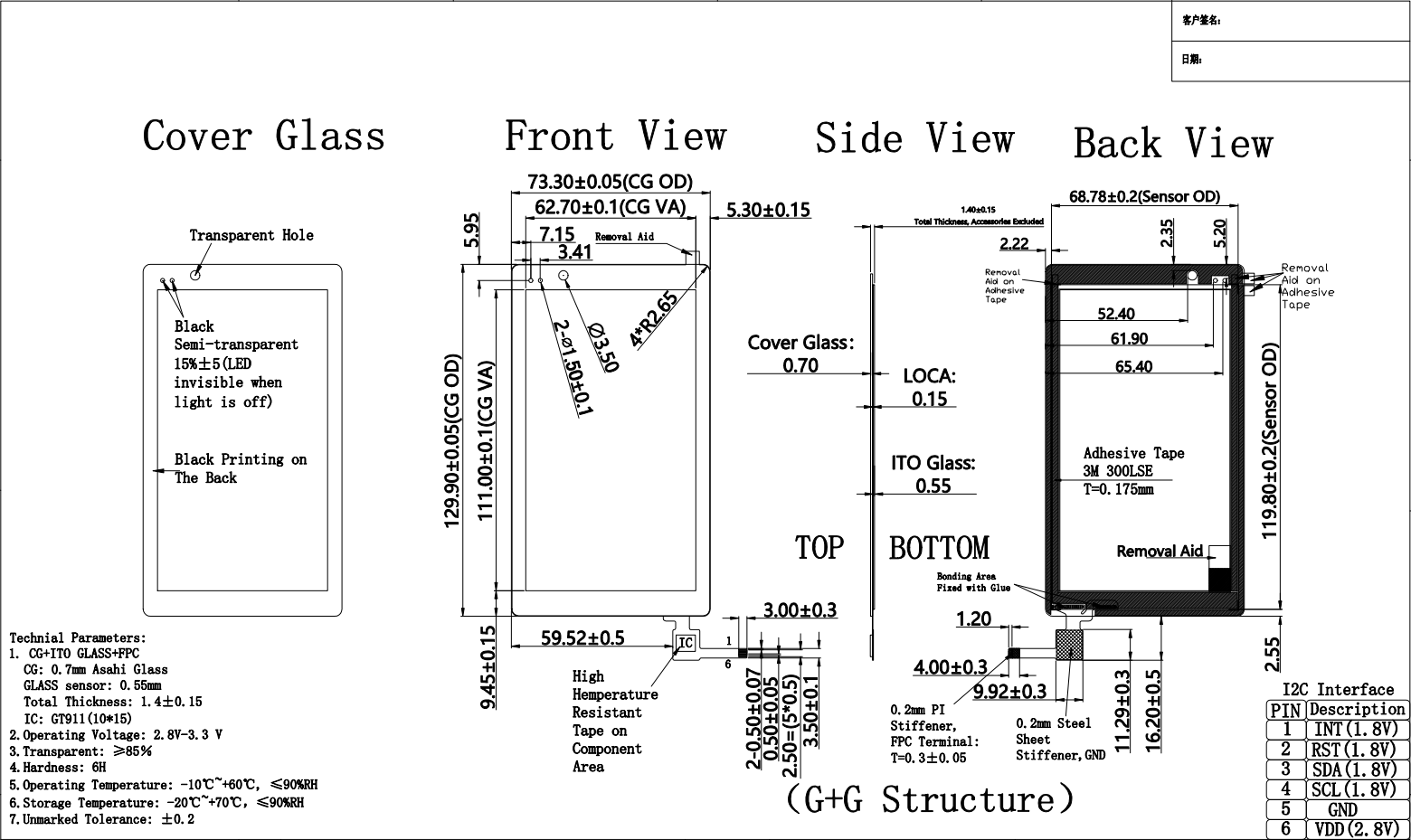

Drawing of 5 inch capacitive touch screen

LCD PIN Function (MIPI 40 PIN)

PIN No.	SYMBOL	Function
1	GND	Ground
2	DSI-D0P	DSI Data differential signal input pins (Data lane 0)
3	DSI-D0N	DSI Data differential signal input pins (Data lane 0)
4	GND	Ground
5	DSI-D1P	DSI Data differential signal input pins (Data lane 1)
6	DSI-D1N	DSI Data differential signal input pins (Data lane 1)
7	GND	Ground
8	DSI-CLKP	DSI CLOCK differential signal input pins
9	DSI-CLKN	DSI CLOCK differential signal input pins
10	GND	Ground
11	DSI-D2P	DSI Data differential signal input pins (Data lane 2)
12	DSI-D2N	DSI Data differential signal input pins (Data lane 2)
13	GND	Ground
14	DSI-D3P	DSI Data differential signal input pins (Data lane 3)
15	DSI-D3N	DSI Data differential signal input pins (Data lane 3)
16-17	GND	Ground
18-19	VIO18	Power supply (1.8V)
20-23	NC	NC
24	RESET	Reset Signal pin (“Low” is enable)
25-26	NC	NC
27	GND	Ground
28-29	LEDK	Backlight LED Cathode
30	GND	Ground
31	NC	NC
32-33	GND	Ground
34	NC	NC
35-36	LEDA	Backlight LED Anode
37	GND	Ground
38-39	VIO28	Power supply (2.8V)
40	NC	NC

Absolute Maximum Ratings

Item	Symbol	Rating			Unit
Item	Symbol	MIN.	TYP.	MAX.	Unit
Supply Voltage range	VDD	-0.3	-	VDD+0.3	V
Power supply for gate drive	VGH	-	15	-	V
Power supply for gate drive	VGL	-	-8	-	V
TFT Common Voltage	VcomH	2.5	-	4	V
TFT Common Voltage	VcomL	-2	-	0	V
Operating Temperature range	T_OP	-20	-	70	℃
Storage Temperature range	T_ST	-30	-	80	℃

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
Logic Supply Voltage	VDD	-	2.8	3.3	V
I/O Supply Voltage	IOVCC	1.65	1.8	3.0	V

Backlight Characteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	IF=40mA	-	19.2	-	V
Uniformity	△Bp	-	80	-	-	%
Luminance for LCD	Lv	IF=40mA	400	450	-	cd/m²
LED Life Time	-	-	30000	50000	-	Hr
