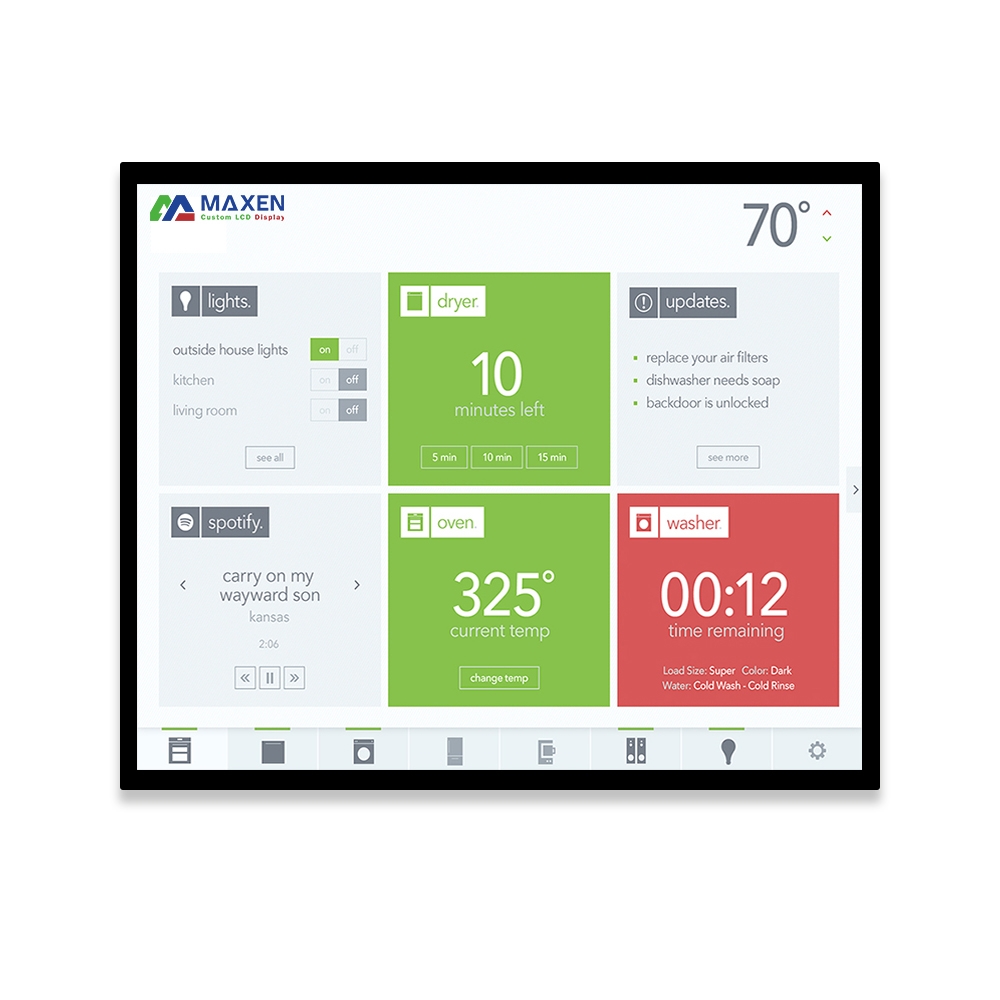

Wide Temperature 19 inch LCD Display

Part NO: G190ETN01.4-G1KD
► Size: 19"
► Resolution: 1280*1024 Pixels
► Display Mode: TN
► Brightness: 1000 Nits
► Interface: LVDS 30 PIN
► Touch Screen: Without (Optional)
► Operating Temperature: -30℃~85℃ (Wide Temperature)

Make an inquiry

Datasheet Download

Description

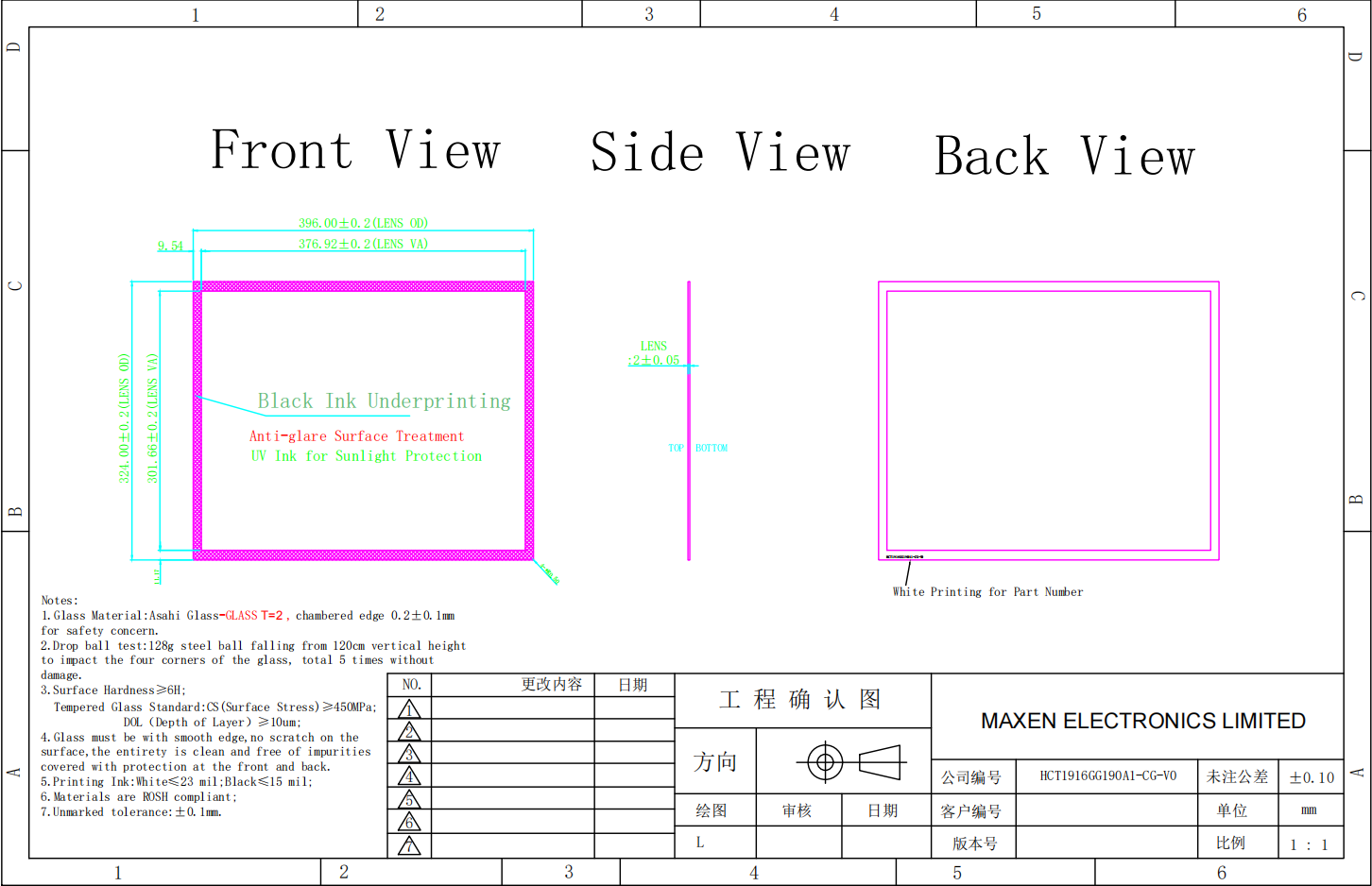

G190ETN01.4-G1KD is a wide temperature 19 inch industrial LCD display with a sunlight-readable high brightness of 1000 nits, offering clear visibility in bright conditions. Featuring a resolution of 1280x1024 pixels, LVDS interface, and an anti-glare surface with a hardness of 3H, this LCD screen is well-suited for demanding industrial environments. Additionally, this 19 inch LCD display is designed for use in a wide range of temperatures, with both operating and storage temperatures ranging from -30℃ to 85℃. The 19 inch LCD screen is further enhanced by a 2mm thick tempered glass cover lens, bonded with OCR technology, that provides anti-glare, UV resistance, and IK07 impact resistance, ensuring protection for the LCD panel.

Product Structure

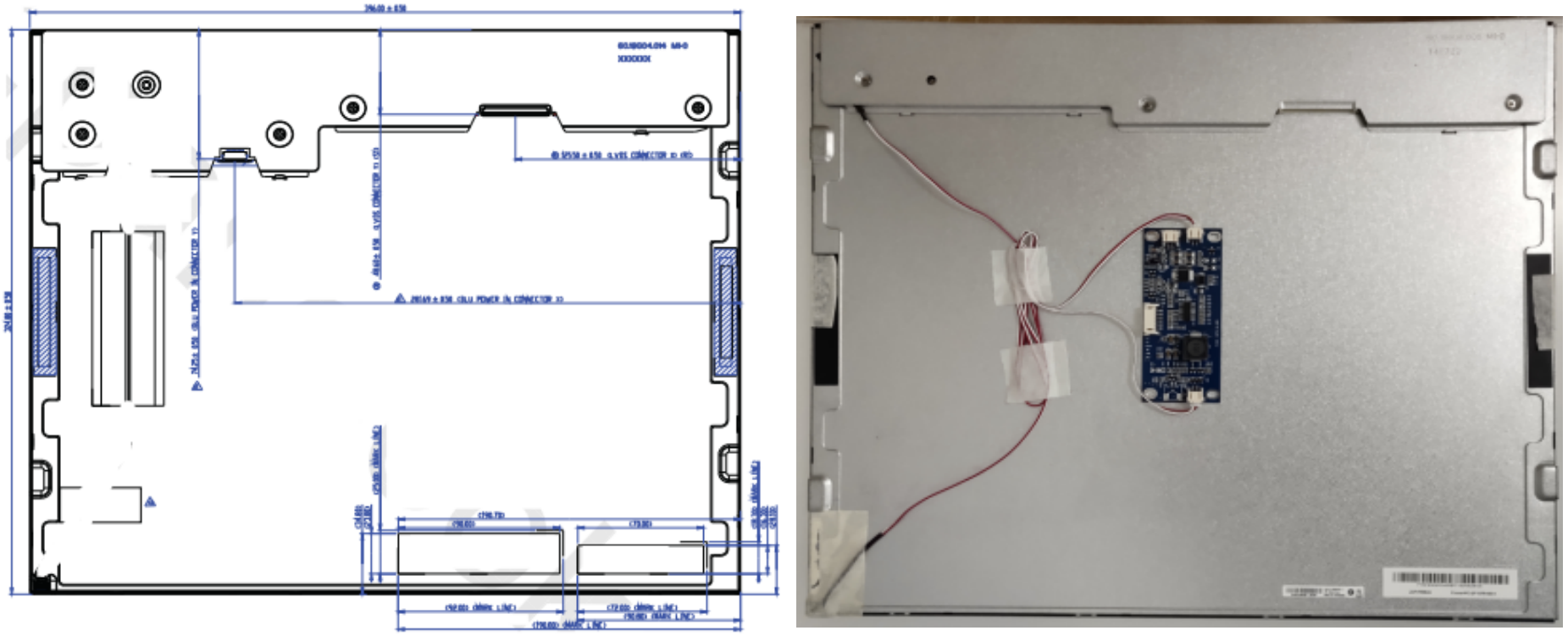

Drawing of 19 inch Industrial LCD Display

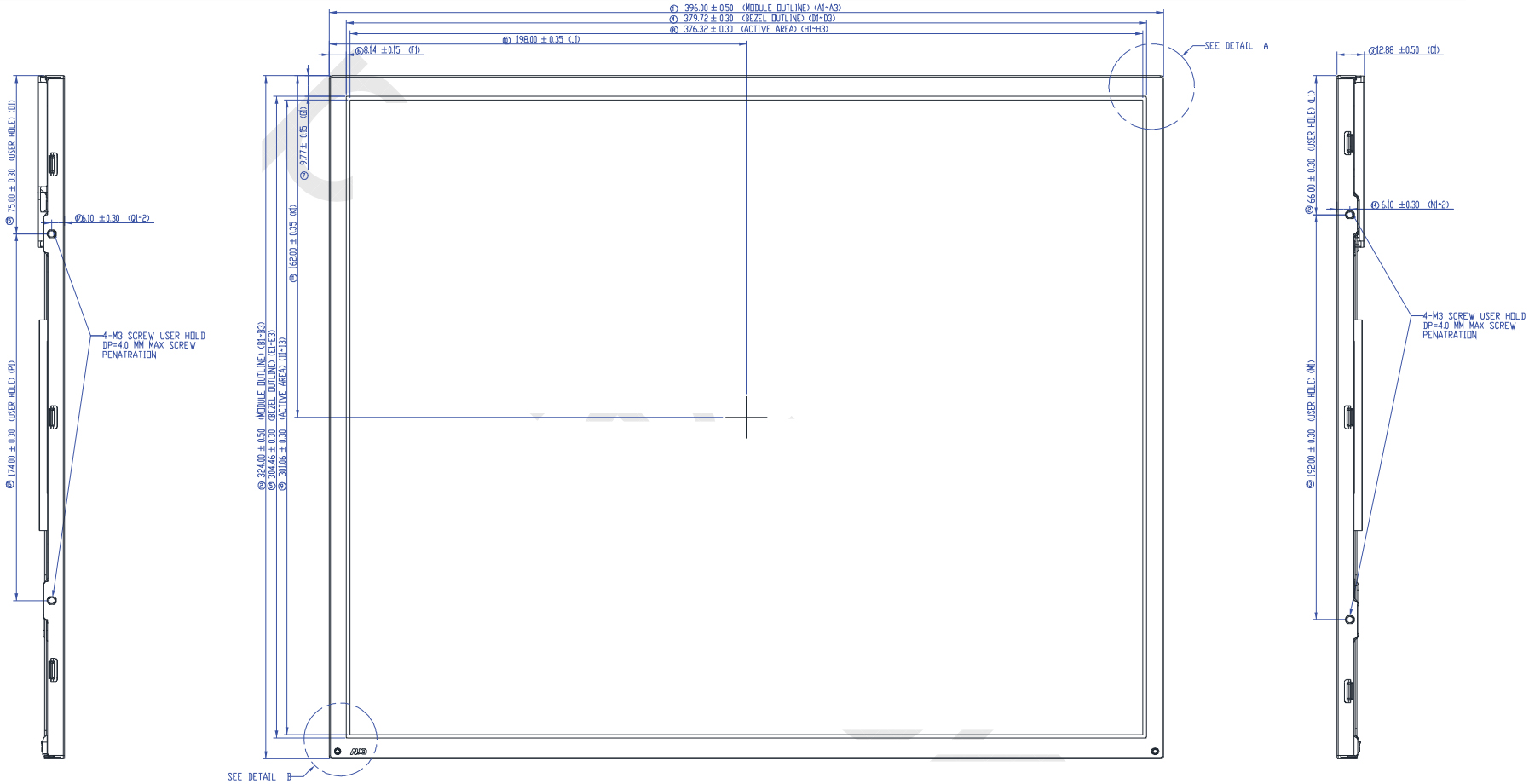

Drawing of 19 inch Industrial LCD screen

LCD PIN Function (LVDS 30 PIN)

PIN #	Signal Name	Description
1	RxOIN0-	Negative LVDS differential data input (Odd data)
2	RxOIN0+	Positive LVDS differential data input (Odd data)
3	RxOIN1-	Negative LVDS differential data input (Odd data)
4	RxOIN1+	Positive LVDS differential data input (Odd data)
5	RxOIN2-	Negative LVDS differential data input (Odd data, DSPTMG)
6	RxOIN2+	Positive LVDS differential data input (Odd data, DSPTMG)
7	GND	Power Ground
8	RxOCLKIN-	Negative LVDS differential clock input (Odd clock)
9	RxOCLKIN+	Positive LVDS differential clock input (Odd clock)
10	RxOIN3-	Negative LVDS differential data input (Odd data)
11	RxOIN3+	Positive LVDS differential data input (Odd data)
12	RxEIN0-	Negative LVDS differential data input (Even data)
13	RxEIN0+	Positive LVDS differential data input (Even data)
14	GND	Power Ground
15	RxEIN1-	Negative LVDS differential data input (Even data)
16	RxEIN1+	Positive LVDS differential data input (Even data)
17	GND	Power Ground
18	RxEIN2-	Negative LVDS differential data input (Even data)
19	RxEIN2+	Positive LVDS differential data input (Even data)
20	RxECLKIN-	Negative LVDS differential data input (Even clock)
21	RxECLKIN+	Positive LVDS differential data input (Even clock)
22	RxEIN3-	Negative LVDS differential data input (Even data)
23	RxEIN3+	Positive LVDS differential data input (Even data)
24~27	GND	Power Ground
28~30	POWER	Power +5V

Absolute Ratings of Environment

Item	Symbol	Min.	Max.	Unit
Operating Temperature	T_OP	-30	85	℃
Storage Temperature	T_ST	-30	85	℃

Electrical Characteristic

Parameter	Symbol	Min.	Typ.	Max.	Unit
Logic/LCD Driver Voltage	VDD	4.5	5.0	5.5	V
Input Current	IDD	-	1	1.2	A
VDD Power	PDD	-	5	6	W
Inrush Current	IRush	-	-	3.0	A
Allowable Logic/LCD Drive Ripple Voltage	VDDrp	-	-	100	mV

Backlight Unit

Parameter	Symbol	Min.	Typ.	Max.	Unit
LED Forward Current	IF	-	100	-	mA
LED Forward Voltage	VF	33.6	38.4	43.2	V
LED Power Consumption	PLED	-	-	20	W
Central Luminance	-	950	1000	-	cd/m2
Luminance Uniformity	-	75	80	-	%
LED Life Time	-	-	50000	-	Hrs
