1000 Nits 5 inch IPS LCD Panel

Sunlight readable 5 inch IPS LCD Panel, 24bit RGB interface, full viewing angle.
► Model NO: MX-B50HR40-TIS09
► Size: 5.0"
► Resolution: 800*480 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: RGB 40 PIN
► Module Size: 120.70x75.90x3.05 mm
► Active Area: 110.88x62.83 mm
► Display Color: 16.7M
► LED Life Time: 50,000 Hr (Typ.)
► Touch Screen: Without (Optional)

Make an inquiry

Description

MAXEN MX-B50HR40-TIS09 is 5" LCD Panel with IPS Technology that provides a wide viewing angle, true colors, and high brightness for sunlight readability. The 5 inch LCD Panel features 800x480 pixels resolution and 1000cd/m2 brightness that helps in delivering brilliant images. The MX-B50HR40-TIS09 5" LCD Panel comes with a RGB interface. The MX-B50HR40-TIS09 TFT display offers a Projected Capacitive (PCAP) touch panel and controller GT911 for 5 finger operation. The 5 inch LCD Panel operates at a 3.3V single supply voltage and a -20°C to 70°C temperature range.

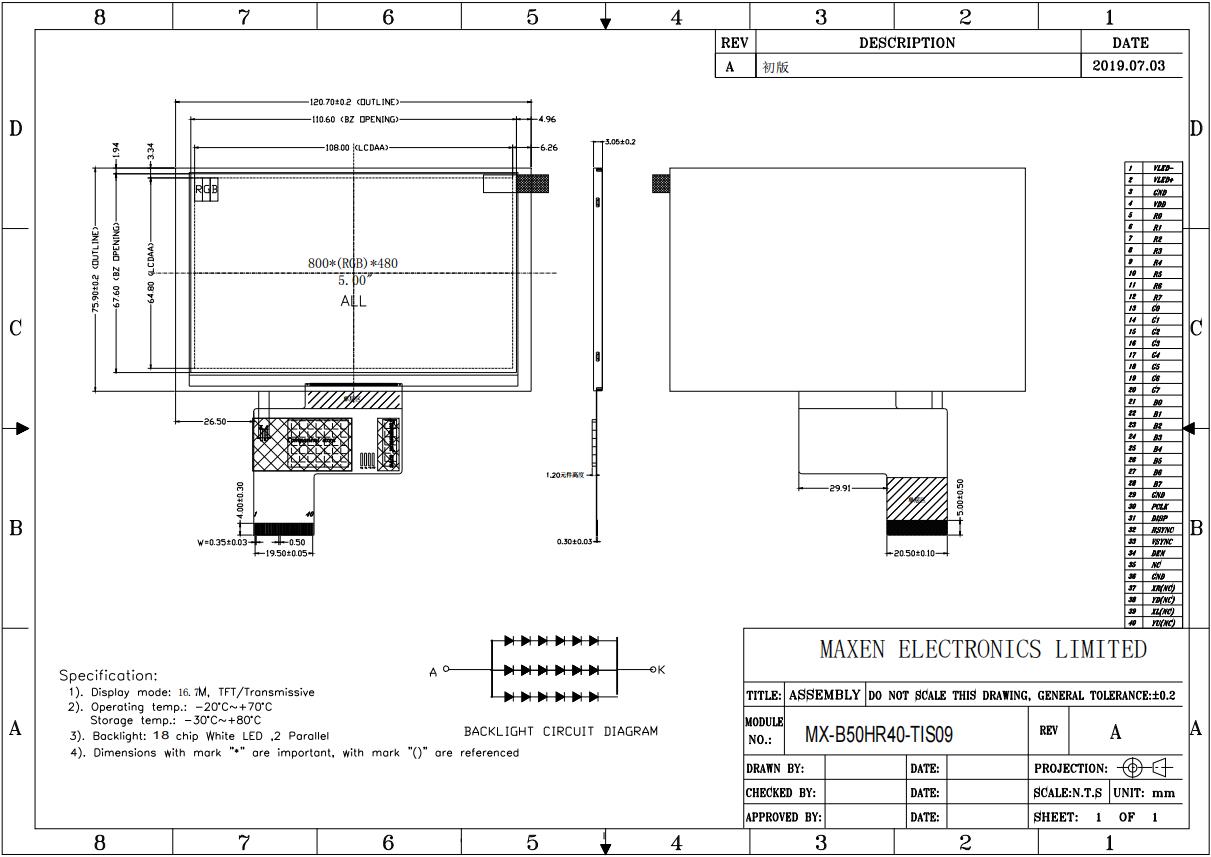

Product Structure

LCD PIN Function

Pin	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Stand by mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin

Electrical Absolute Maximum Ratings (Vss=0V ,Ta=25℃)

Item	Symbol	Min.	Max.	Unit	Note
Power Supply Voltage	VDD	-0.3	3.6	V	1，2
Input Voltage	V_In	-0.3	VDD+0.5	V
Current of LED	I_LED	0	20	mA

Notes:

1. If the module is above these absolute maximum ratings. It may become permanently damaged.

Using the module within the following electrical characteristic conditions are also exceeded, the

module will malfunction and cause poor reliability.

2. VDD>V_SS must be maintained.

3. Please be sure users are grounded when handing LCD Module.

Environmental Absolute Maximum Ratings

Item	Storage		Operating		Note
Item	MIN.	MAX.	MIN.	MAX.	Note
Ambient Temperature	-30℃	80℃	-20℃	70℃	1,2
Humidity	-	-	-	-	3

Notes:

1. The response time will become lower when operated at low temperature.

2. Background color changes slightly depending on ambient temperature.

The phenomenon is reversible.

3. Ta<=40℃: 85%RH MAX.

Ta>=40℃: Absolute humidity must be lower than the humidity of 85%RH at 40℃.

Electrical characteristics (Vss=0V ,Ta=25℃)

Parameter		Symbol	Condition	Min.	Typ.	Max.	Unit	Note
Power supply		VDD	Ta=25℃	2.8	3.3	3.6	V
Input	‘H’	V_IH	VDD=3.3V	0.7VDD	-	VDD	V
voltage	‘L’	V_IL	VDD=3.3V	0	-	0.3VDD	V
Current Consumption		I_CC1	Normal mode	-	-	-	mA	2
Current Consumption		I_CC2	Sleep mode	-	0.03	0.09	mA	2
LED Life Time		Hr		30000	50000		Hr
