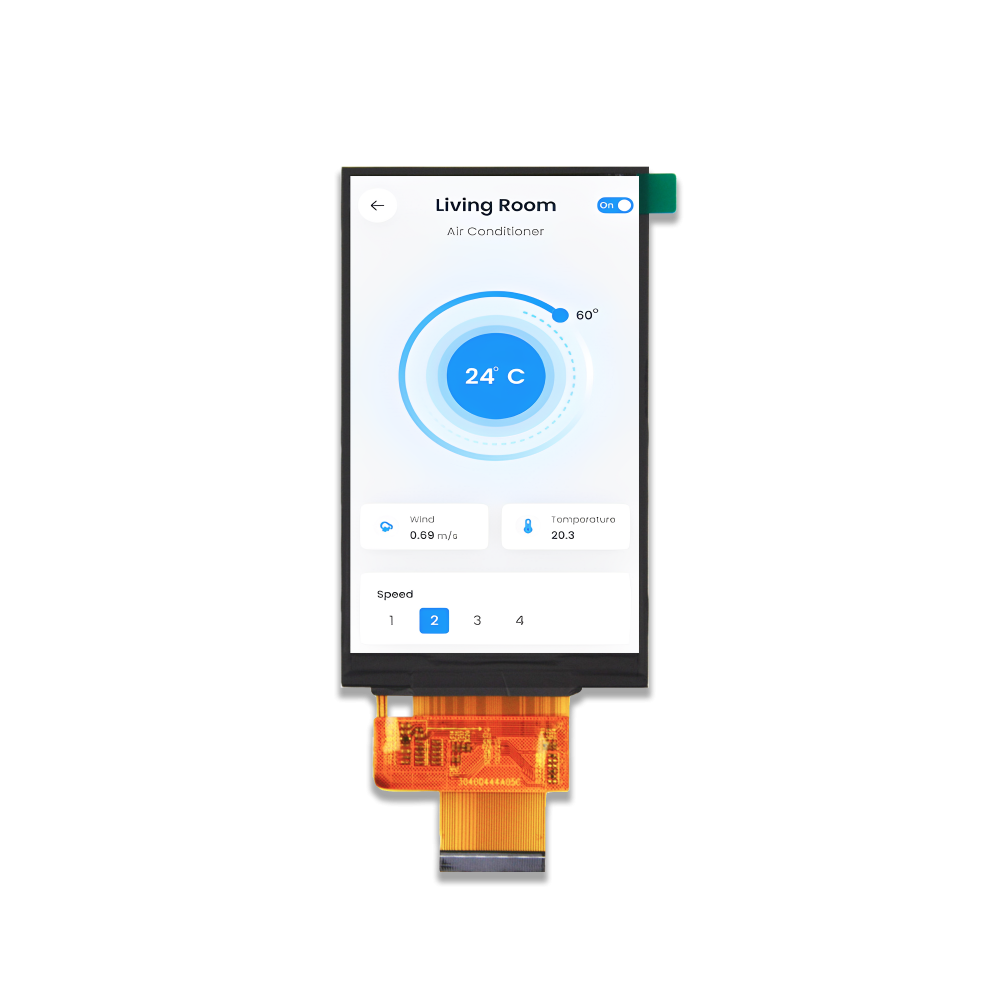

4.3 inch LCD Panel

Model NO: MX-N43HR42-IT30
► Size: 4.3"
► Resolution: 480*800 Pixels
► Display Mode: IPS
► Brightness: 350 Nits
► Interface: RGB 42 PIN
► Module Size: 62.40x105.40x2.15 mm
► Active Area: 56.16x93.60 mm
► Display Color: 16.7M
► Driver IC: ILI9806E
► LED Life Time: 50,000 Hr (Typ.)
► Touch Screen: Without (Optional)

Make an inquiry

Description

MAXEN MX-N43HR42-IT30 4.3 inch LCD Panel is portrait mode, if you would like to use landscape mode please contact with us for more technical support. This 4.3 inch LCD Panel is with full color 480*800 resolution and built in ILI9806E driver IC. It supports MIPI/RGB/SPI Input Data. The 4.3 inch TFT Display is featured with 350 nits brightness, it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. It is very suitable for smart home applications, medical devices, portable devices, wearable devices, energy controls and data transfers etc.

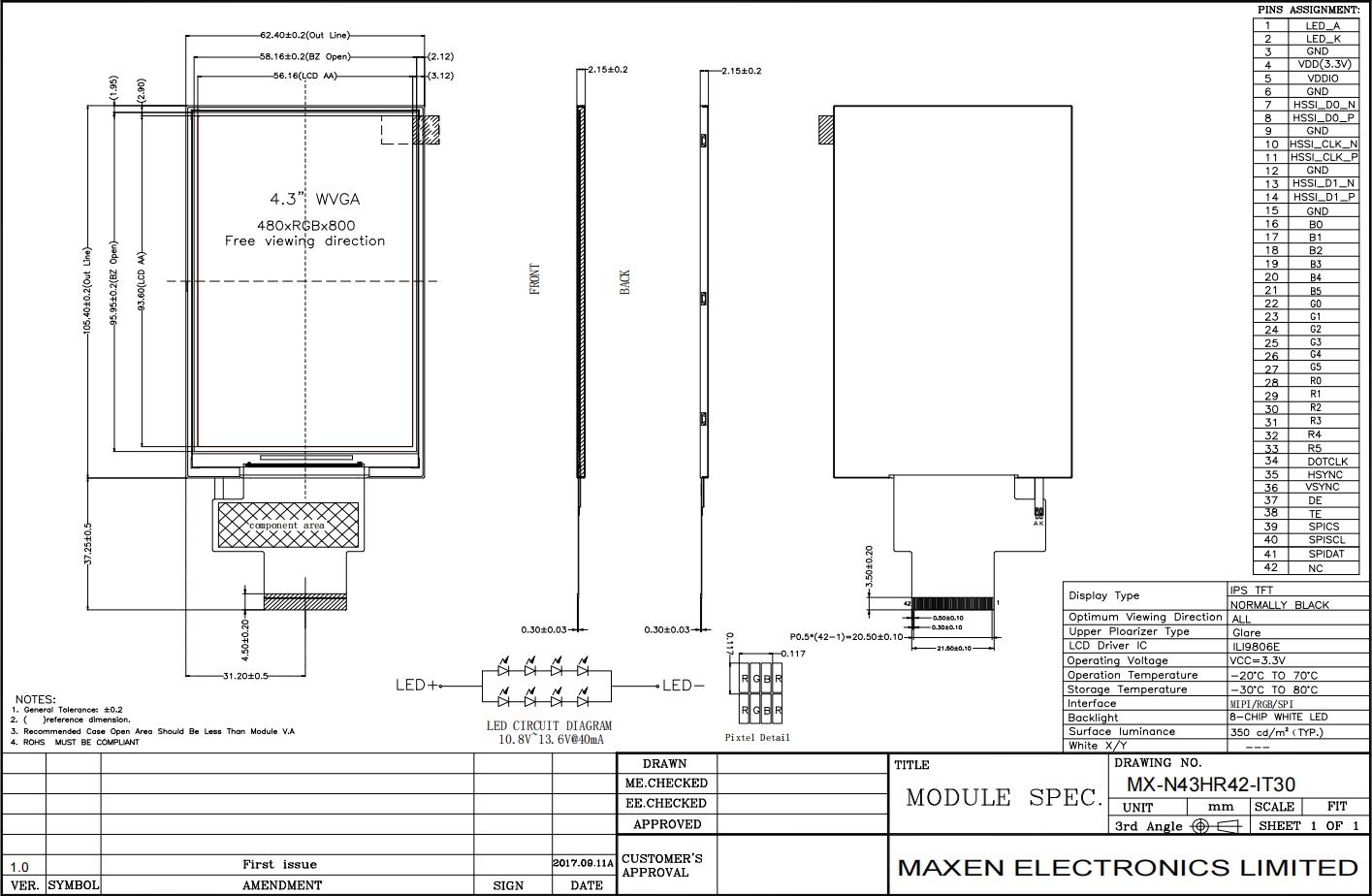

Product Structure

LCD PIN Function

Pin No.	Symbol	Description
1	LEDA	Anode of LED backlight
2	LEDK	Cathode of LED backlight
3	GND	Power ground
4	VCC(3.3V)	Supply voltage for analog
5	VDDIO	Supply voltage for logic
6	GND	Power ground
7	HDDI_D0_N	MIPI DSI differential data pair (D0-)
8	HDDI_D0_P	MIPI DSI differential data pair (D0+)
9	GND	Power ground
10	HDDI_CLK_N	MIPI DSI differential clock pair (CLK-)
11	HDDI_CLK_P	MIPI DSI differential clock pair (CLK+)
12	GND	Power ground
13	HDDI_D1_N	MIPI DSI differential data pair (D1-)
14	HDDI_D1_P	MIPI DSI differential data pair (D1+)
15	GND	Power ground
16~21	B0~B5	Blue data
22~27	G0~G5	Green data
28~33	R0~R5	Red data
34	DOTCLK	Pixel clock
35	HSYNC	Horizontal sync signal
36	VSYNC	Vertical sync signal
37	DE	Data enable
38	TE	Tearing effect output
39	SPICS	Chip select signal input terminal, active at “L”
40	SPISCL	Serial clock
41	SPIDAT	Serial data input pin
42	NC	No connection

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit
Supply voltage for analog	VCC	-0.3	4.6	V
Supply voltage for logic	VDDIO	-0.3	4.6	V
Supply current (One LED)	I_LED		30	mA
Operating temperature	T_OP	-20	70	℃
Storage temperature	T_ST	-30	80	℃

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit	Applicable terminal
Supply Voltage for Analog	VCC	2.5	3.8	3.6	V
Supply Voltage for Logic	VDDIO	1.65	1.8	3.6	V
Input Voltage	V_IL	-0.3	-	0.3 VDDIO	V
Input Voltage	V_IH	0.7 VDDIO	-	VDDIO	V
Input leakage Current	I_LKG	-1		1	μA

Backlight Characteristics

Item	Symbol	Value			Unit	Remark
Item	Symbol	Min.	Typ.	Max.	Unit	Remark
Voltage for LED Backlight	V_F	10.8	12.8	13.6	V	I_L=40mA
Current for LED Backlight	I_L		40		mA
Power Consumption	P		0.512		W
LED Life Time		30,000	50,000		Hr	Note
