2.4 inch LCD Display

Model NO: MX-24NS18-TWZ04
► Size: 2.4"
► Resolution: 240*320 Pixels
► Display Mode: TN
► Brightness: 300 Nits
► Interface: SPI 18 PIN
► Module Size: 42.72x60.26x3.75 mm
► Active Area: 36.72x48.96 mm
► Display Color: 262K
► Driver IC: ILI9341
► LED Life Time: 50,000 Hr (Typ.)
► Touch Screen: Without (Optional)

Make an inquiry

Description

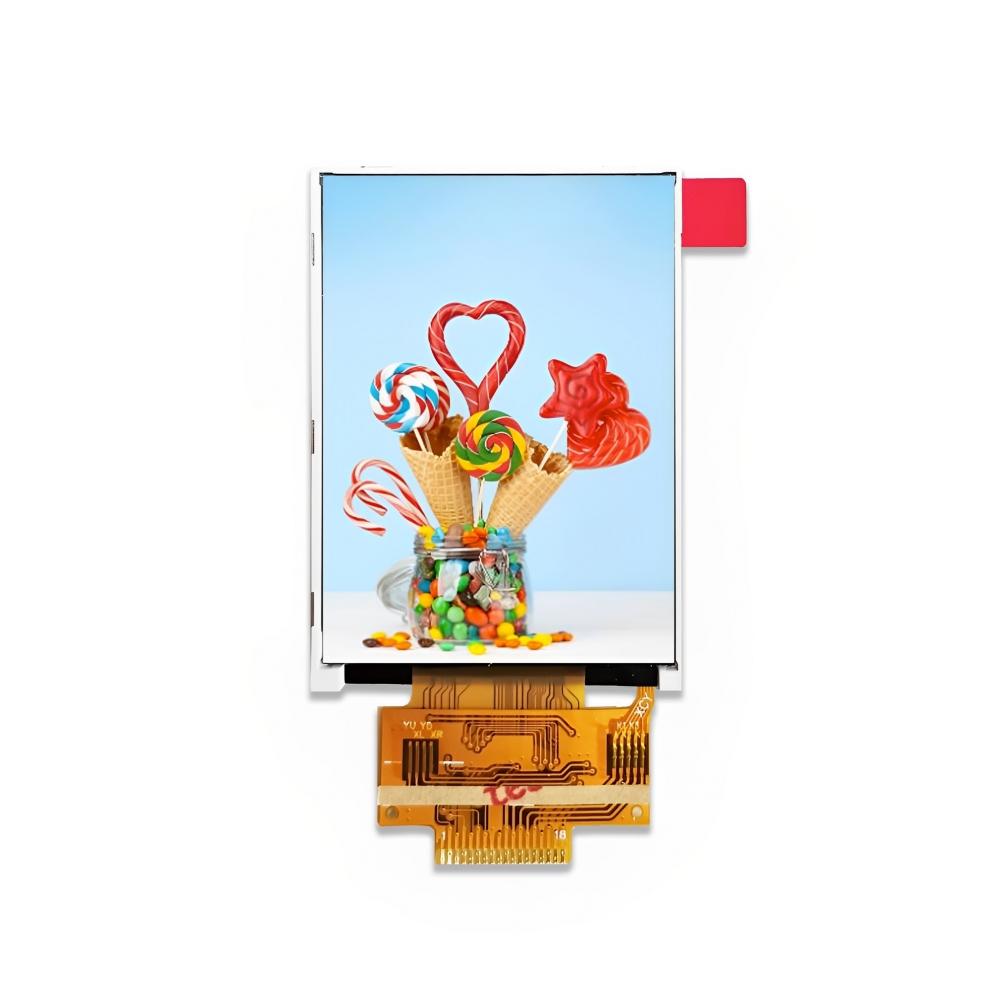

MAXEN MX-24NS18-TWZ04 is 2.4 inch TFT Display with full color 240x320 resolution. This 2.4” TFT Display is built in ILI9341 driver IC. It supports SPI-4wire Input Data. The 2.4 inch TFT Display is featured with 300 nits brightness. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The MX-24NS18-TWZ04 is available for resistive touch screen and capacitive touch panel. It is very suitable for smart home applications, portable devices, wearable devices, etc.

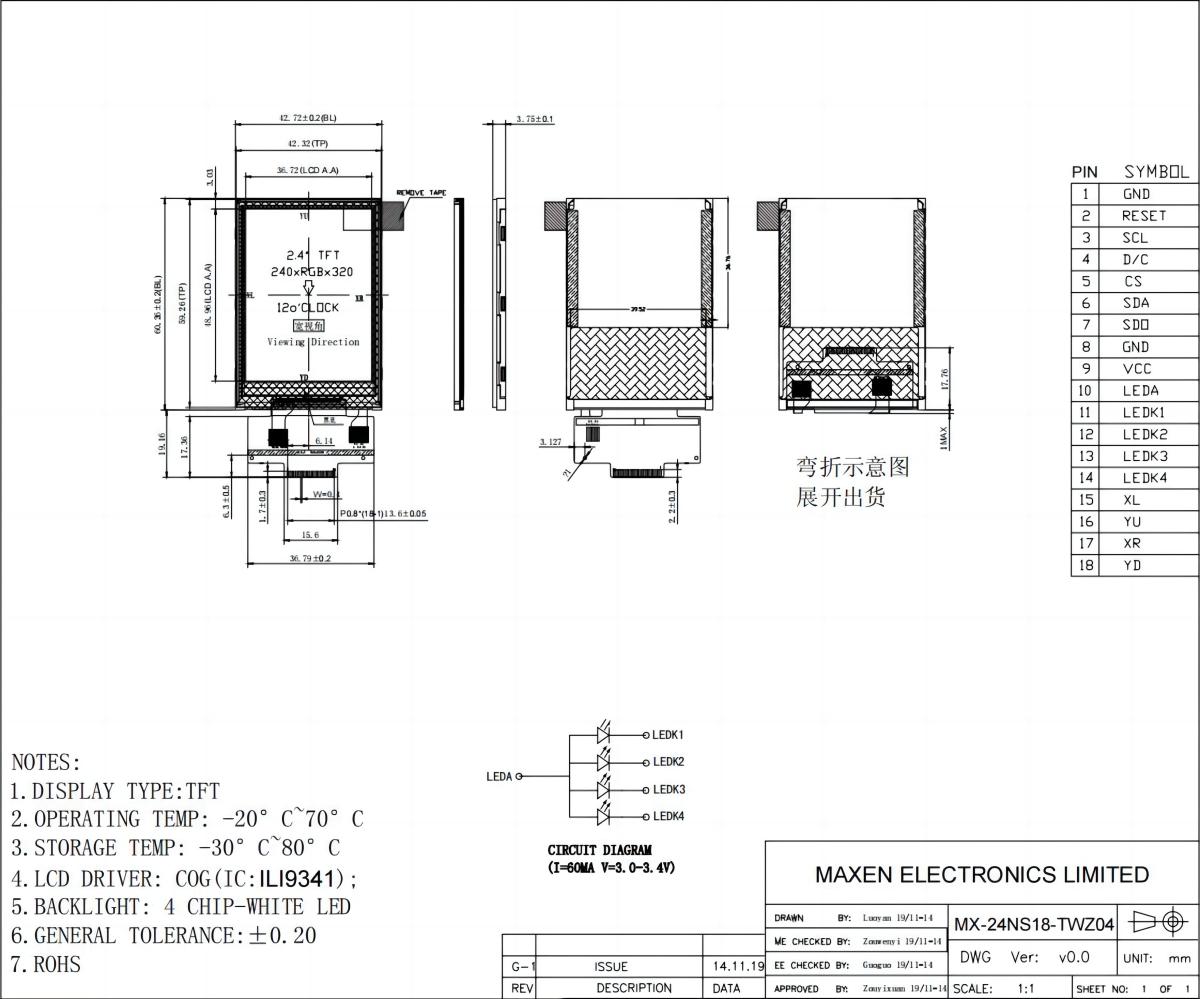

Product Structure

LCD PIN Function

PIN No.	Symbol	Description
1	GND	Ground
2	RESET	LCM Reset pin Signal is active low.
3	SCL	This pin is used serial interface clock in 4-wire 8-bit serial data interface. If not used, this pin should be connected to IOVCC or GND.
4	D/C	4-line system (D/CX): Serves as command or parameter select. Fix to IOVCC level when not in use.
5	CS	Chip select pin (“Low” enable)
6	SDA	Serial input signal. The data is applied on the rising edge of the SCL signal. If not used, fix this pin at IOVCC or GND.
7	SDO	Serial output signal. The data is outputted on the falling edge of the SCL signal. If not used, open this pin.
8	GND	Ground
9	VCC	Power supply for LCM(2.8V-3.3V)
10	LEDA	Anode of Backlight (3.0V-3.4V Typical: 3.2V)
11	LEDK1	Cathode of Backlight
12	LEDK2	Cathode of Backlight
13	LEDK3	Cathode of Backlight
14	LEDK4	Cathode of Backlight
15	XL	Touch panel control pin
16	YU	Touch panel control pin
17	XR	Touch panel control pin
18	YD	Touch panel control pin

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit	Note
Supply voltage	V	-0.3	4.6	V
Operating temperature	V_T	-0.3	Vcc+0.3	V
Storage temperature	T_OPR	-20	70	℃
Storage temperature	T_STR	-30	80	℃

Electrical Characteristics

Item		Symbol	Condition	Min.	Typ.	Max.	Unit
Supply voltage	Logic	V_CC		2.7	2.8	3.3	V
Input Voltage	H level	T_IH		0.8*IOVCC		IOVCC	V
Input Voltage	L level	T_IL		-0.3		0.2* IOVCC	V
Storage temperature		I_DD	With internal voltage generation V_CC=2.8V; T_emp=25℃.			TBD	mA

Backlight Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
LED module Forward voltage	V_LED	3.0	3.2	3.4	V
LED module current	V_LED		60		mA
L/G Surface Luminance ★1	L_S	300			Cd/m²
LCM Surface brightness uniform ★2	L_D	80			%
