10.4" ~ 21.5" High Brightness LCD Display


This section primarily features high brightness LCD displays ranging from 10.4 inches to 32 inches, specifically designed for industrial applications. These displays are of the IPS type and utilize an LVDS interface. If you require information on different sizes or have any inquiries, please don‘t hesitate to reach out to our professional sales team.

SEND INQUIRY
Product
Size Resolution Image Model No. Type PIN Interface Brightness Technology Viewing Angle(T/B/L/R) O.T L.T Outline Dimension Active Area
10.4" 1024x768 1000 Nits 10.4 inch LCD Display HCT-H104L30-32H02I Landscape 30pin LVDS 1000 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 225.80*174.30*6.70 211.20*158.48

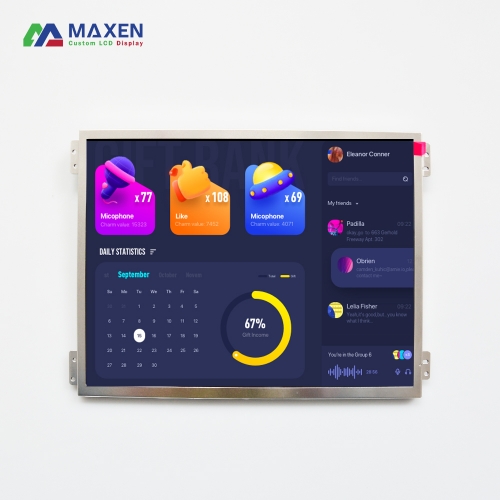

10.4" 1024x768 1000 Nits 10.4 inch LCD Panel MX-C104HL30-ID071K Landscape 30pin LVDS 1000 nits IPS 80/80/80/80 -20~70 °C 50K Hr. 227.00*175.80*9.20 210.432*157.824
12.1" 1280x800 1000 Nits 12.1 inch LCD Module MX-B121FL20-IS81K Landscape 20pin LVDS 1000 nits IPS 85/85/85/85 -20~70 °C 50K Hr. 277.70*180.60*8.70 261.12*163.20
19.0" 1280x1024 1000 Nits 19 inch LCD Display G190ETN01.4-G1KD Landscape 30pin LVDS 1000 nits TN 80/80/85/85 -30~85 ℃ 50K Hr. 396.00*324.00*12.88 376.32*301.06

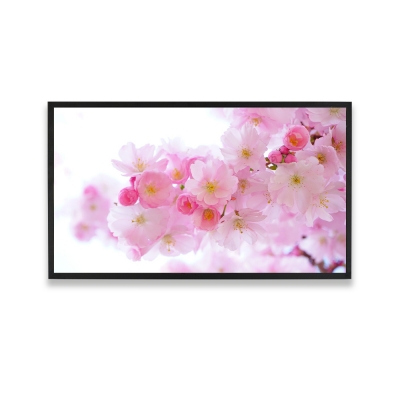

32" 1920x1080 1000 Nits 32 inch LCD Display Module MX320CD05-G1KD Landscape 51pin LVDS 1000 nits IPS 89/89/89/89 -20~80 °C 50K Hr. 730.40*425.00*18.50 698.40*392.85
