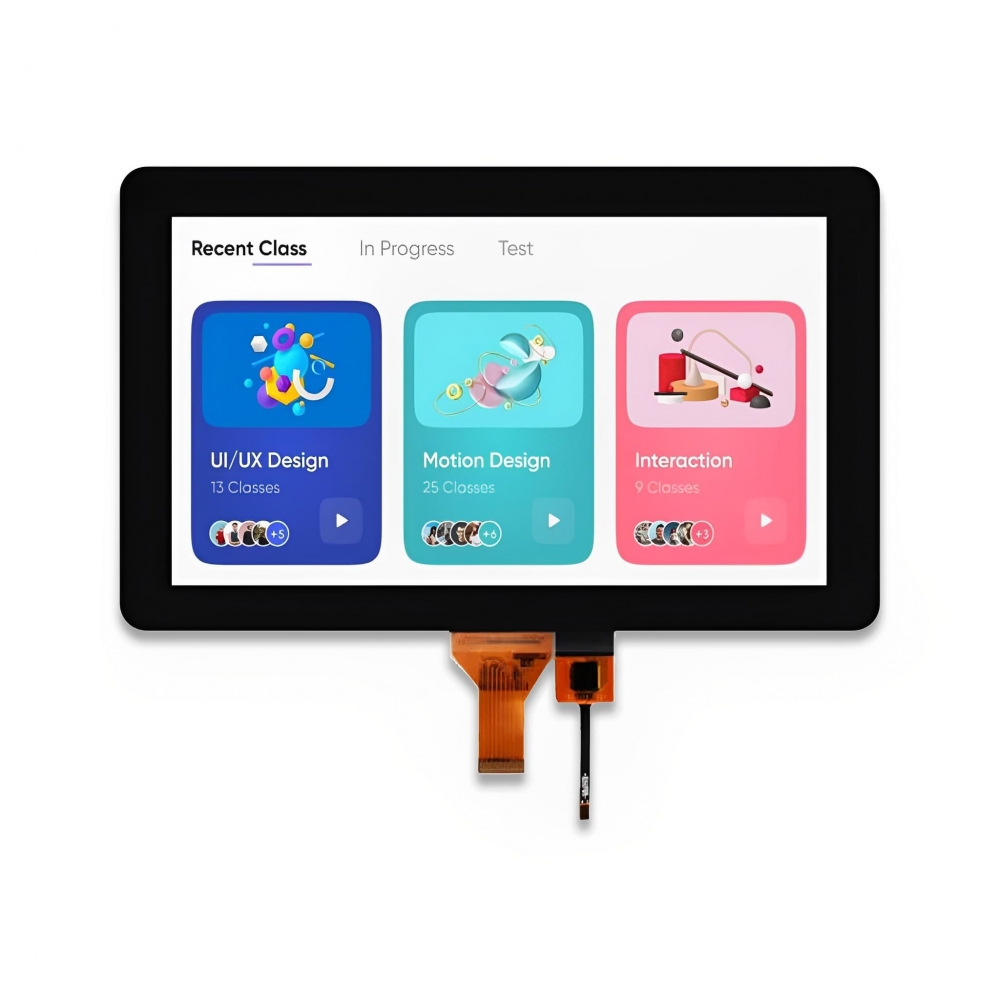

MX-B101HM30-TWX25 is a 10.1 inch TN LCD display with a resolution of 1024x600 pixels and an MIPI interface. The 10.1 inch TFT LCD offers a brightness level of 230 nits. While it may not be suitable for extremely bright or outdoor environments, it performs well in moderate lighting conditions. With an operating temperature range of -20 to 60 degrees Celsius and a storage temperature range of -30 to 60 degrees Celsius, this 10.1 inch LCD screen is designed to withstand different temperature environments. This 10.1" display is an excellent choice for applications that require a reliable and high-quality 10.1 inch display solution in indoor or moderately lit settings.

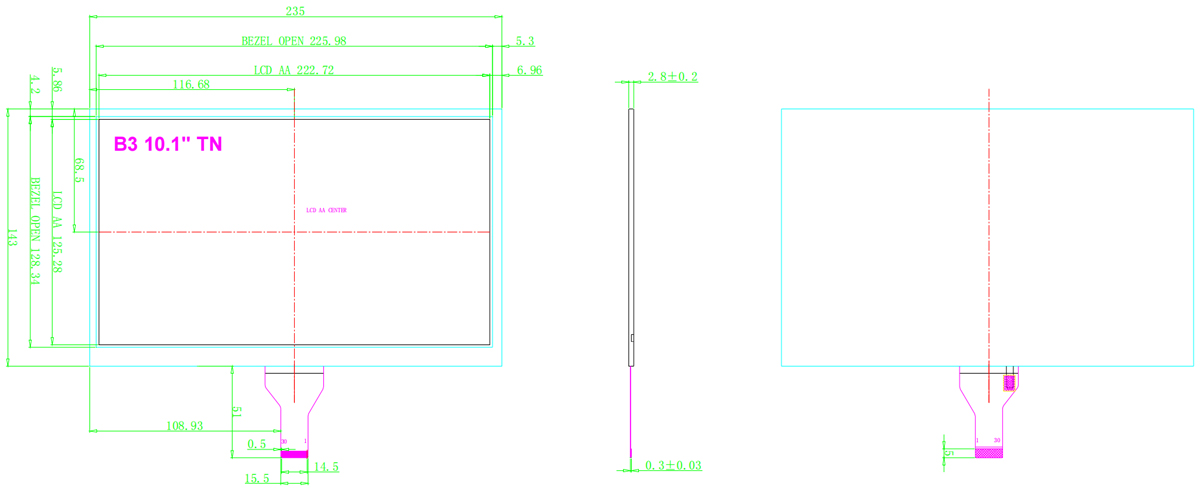

Product Structure
.jpg)
.jpg)

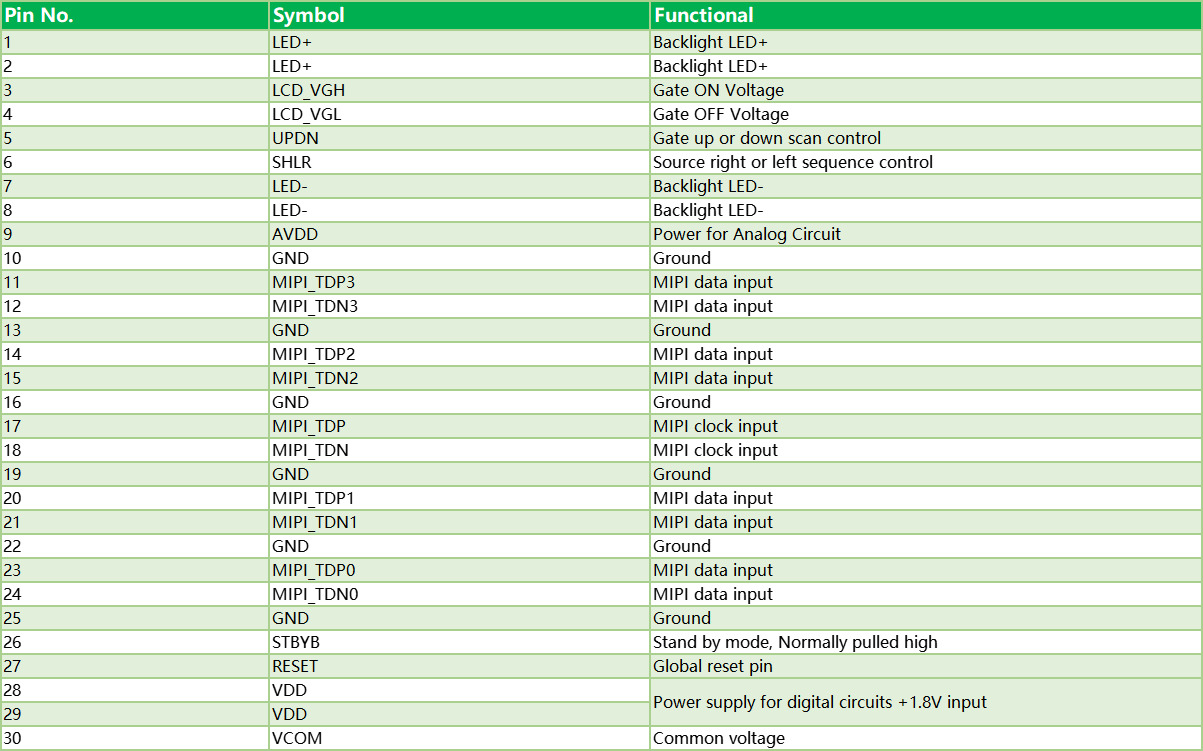

LCD Pin Function (MIPI 30 PIN)

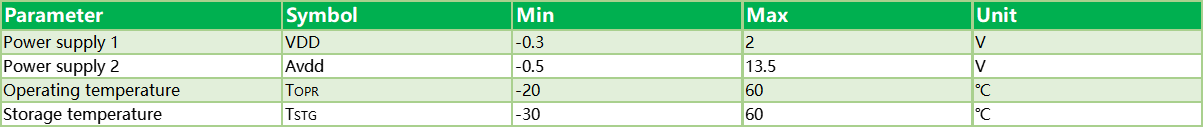

Absolute Maximum Ratings

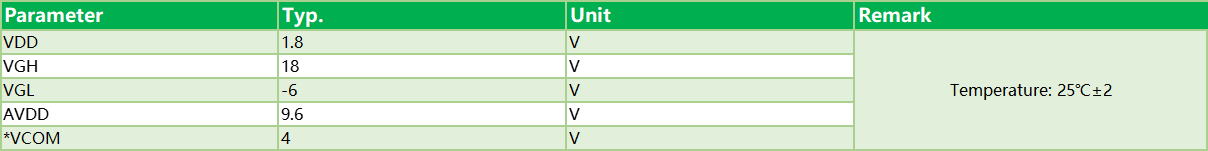

Input driver voltage for LCD

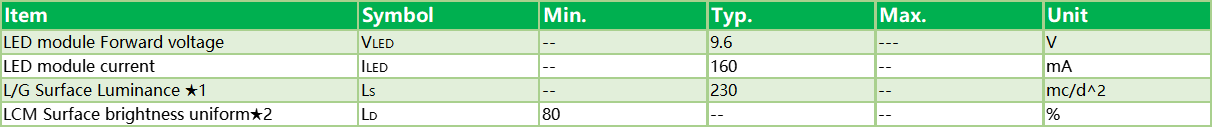

Backlight Characteristic
