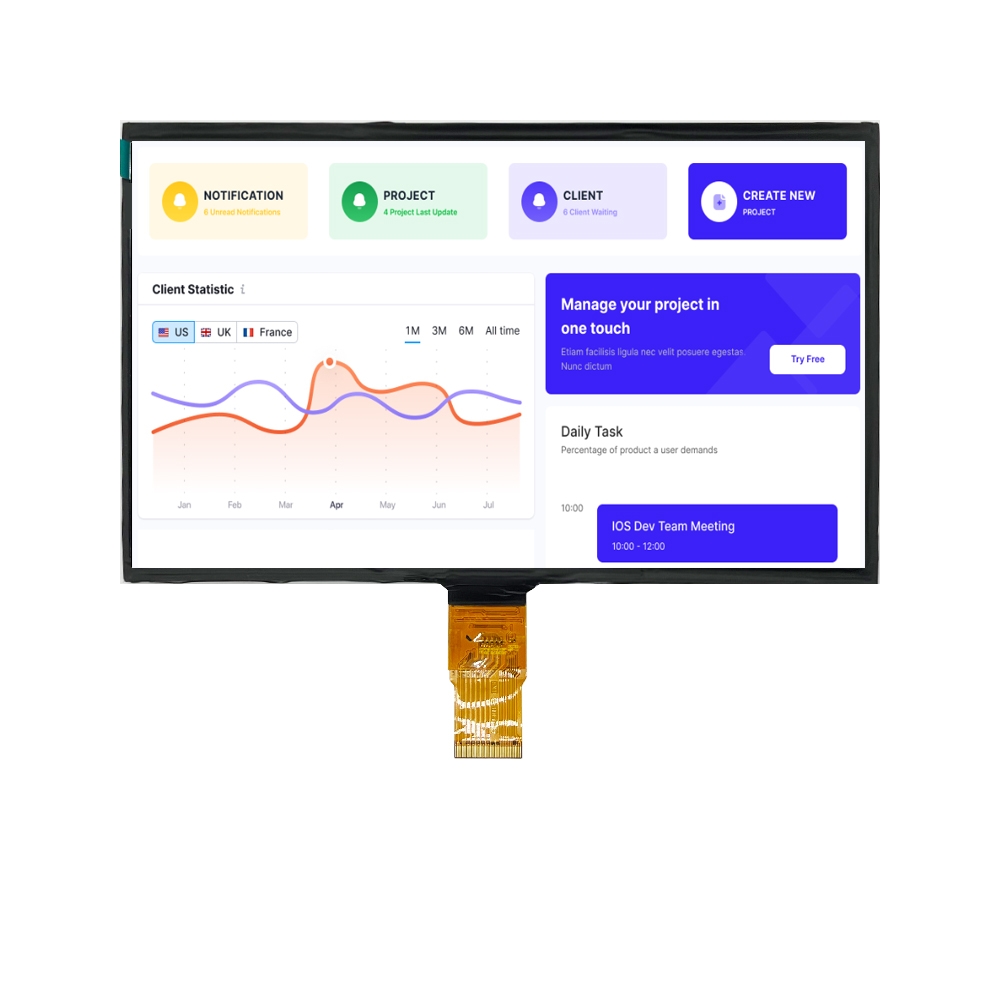

10.1 inch TFT LCD Display

Part NO: MX-B101HL40-TNX19
► Size: 10.1"
► Resolution: 1024*600 Pixels
► Display Mode: TN
► Brightness: 400 Nits
► Interface: LVDS 40 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MX-B101HL40-TNX19 is a 10.1 inch TN LCD display with a resolution of 1024x600 pixels. The 10.1 inch TFT LCD features an LVDS interface and comes with the HX8282-A14 driver IC built-in. With optimized viewing direction at 6 o‘clock and a standard brightness of 400 nits, this display delivers clear visuals. This 10.1" LCD Screen operates reliably in temperatures ranging from -20℃ to 70℃ and can withstand storage temperatures from -30℃ to 80℃. The 10.1 inch TFT LCD Display is a versatile and durable display suitable for industrial, automotive, and various other applications.

Product Structure

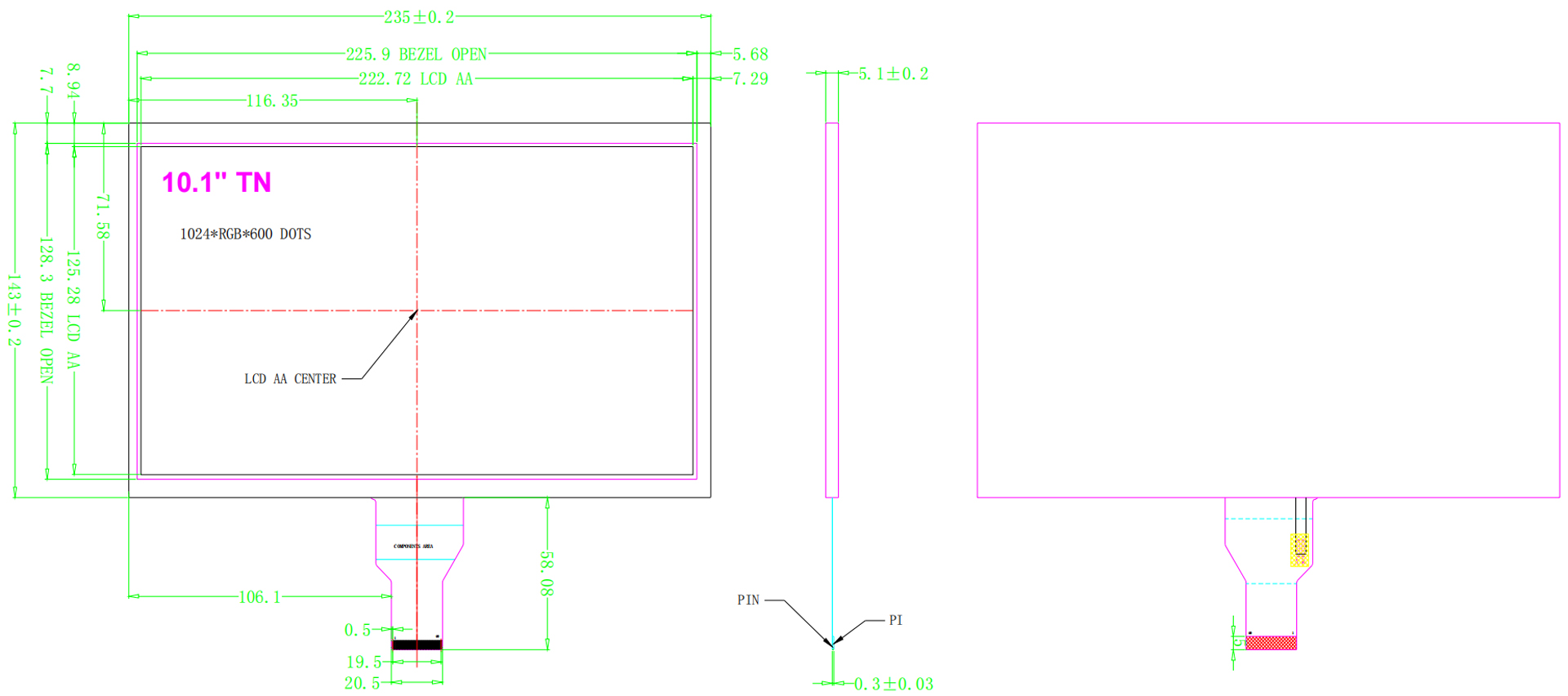

Drawing of 10.1 inch TFT lcd display

LCD PIN Function (LVDS 40 PIN)

Pin No.	Symbol	Functional
1	VCOM	Common Voltage
2~3	VDD	Power Supply for digital circuit
4	NC	No connection
5	RESET	Global reset pin
6	STBYB	Stand by mode, Normally pulled high
7	GND	Ground
8	Rin0-	-LVDS differential data input
9	Rin0+	+LVDS differential data input
10	GND	Ground
11	Rin1-	-LVDS differential data input
12	Rin1+	+LVDS differential data input
13	GND	Ground
14	Rin2-	-LVDS differential data input
15	Rin2+	+LVDS differential data input
16	GND	Ground
17	RclkIN-	-LVDS differential clock input
18	RclkIN+	+LVDS differential clock input
19	GND	Ground
20	Rin3-	-LVDS differential data input
21	Rin3+	+LVDS differential data input
22	GND	Ground
23-24	NC	No connection
25	GND	Ground
26	NC	No connection
27	NC	NC
28	SELB	6bot/8bit mode select, L=8 BIT, H=6BIT
29	AVDD	Power for Analog Circuit
30	GND	Ground
31-32	LED-	LED Cathode
33	L/R	Horizontal inversion
34	U/D	Vertical inversion
35	VGL	Gate OFF Voltage
36	NC	NC
37	NC	NC
38	VGH	Gate ON Voltage
39-40	LED+	LED Anode

Absolute maximum ratings

Parameter	Symbol	Min	Max	Unit
Power supply 1	V_DD	-0.5	3.96	V
Power supply 2	A_vdd	-0.5	13.85	V
Operating temperature	T_OPR	-20	70	℃
Storage temperature	T_STG	-30	80	℃

Input driver voltage

Parameter	Symbol	Value	Unit
TFT Gate ON Voltage	VGH	21	V
TFT Gate Off Voltage	VGL	-8	V
Analog Power Supply Voltage	AVDD	10.8	V
TFT Common Electrode Voltage	VCOM	3.8	V

Backlight Characteristic

Item	Symbol	Min	Typical	Max	Unit
LED module Forward voltage	V_LED	9	9.3	9.6	V
LED module current	I_LED	-	280	-	mA
LCM Surface Luminance★1	L_S	-	400	-	Cd/m²
LCM Surface brightness uniform★2	L_D	80	-	-	%
LED Life Time	-	30,000	50,000	-	Hr
