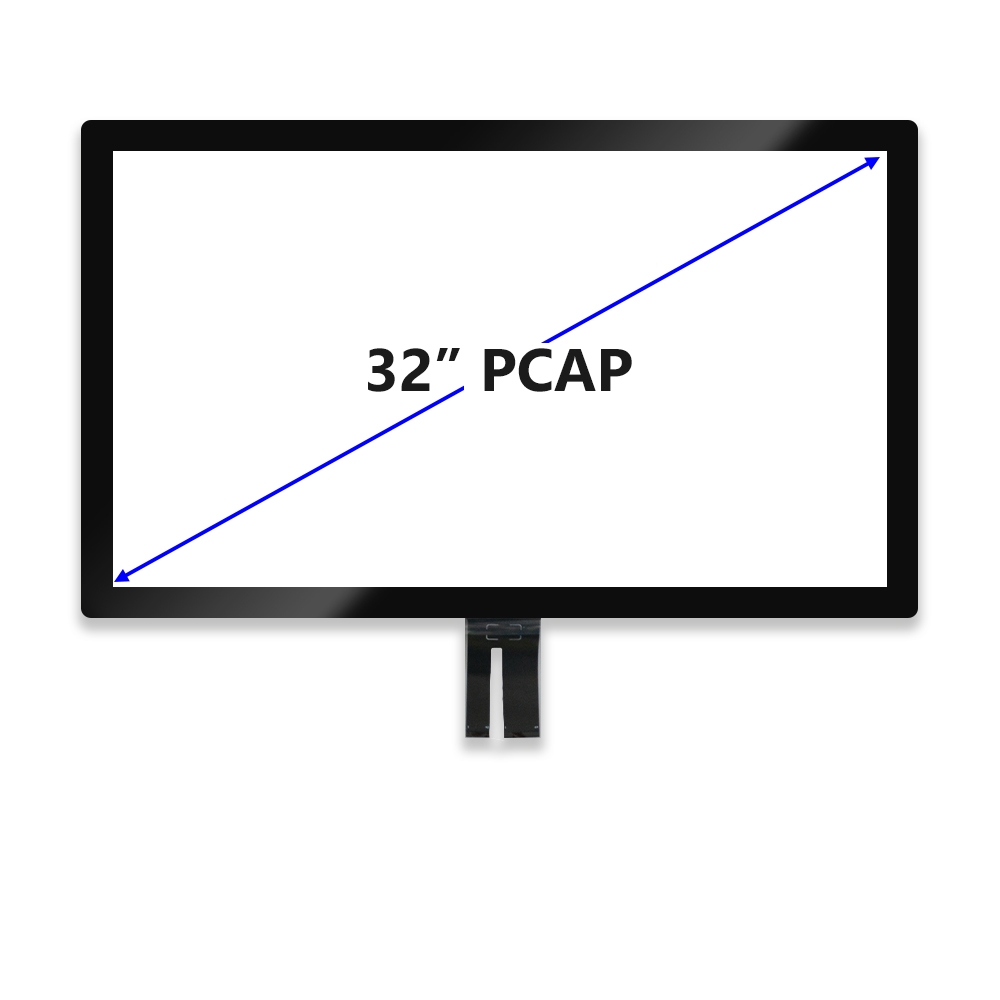

HCT32000QH-3A is a 32 inch capacitive touch screen, boasting a C0B+PCB touch panel type and employing the G+G structure. The cover lens was crafted from strengthened glass, enhancing durability and scratch resistance. Operating seamlessly at a voltage of 5V, this 32" touch screen marvel supports 10-point touch capability, providing users with a highly responsive and intuitive interaction experience. The touch functionality is orchestrated by the WD8752 touch IC, ensuring precision and accuracy in capturing user inputs. The surface hardness measure at least 6H on the Mohs scale. Moreover, with a light transmittance rating exceeding 85%, this touch screen guarantees vivid and clear visuals, making it ideal for a wide range of applications. The glass cover undergoes AG processing, an Anti-Glare treatment, which mitigates reflections and glare, ensuring excellent visibility even in brightly lit environments.
Item | Specification |
Touch Screen Size | 32" |
Touch controller | WD8752 |
Touch Interface | I2C, USB |
Structure | Glass+Glass |
Glass thickness | 2.00 mm |
Sensor thickness | 1.10 mm |
Outline Dimension | 757.12x450.60x3.40 mm |
Valid Area | 699.40x393.84 mm |
Working Voltage | 5V |
Custom Touch | Available |
Working Temperature | -20℃~ 70℃ |
Storage Temperature | -20℃~ 70℃ |

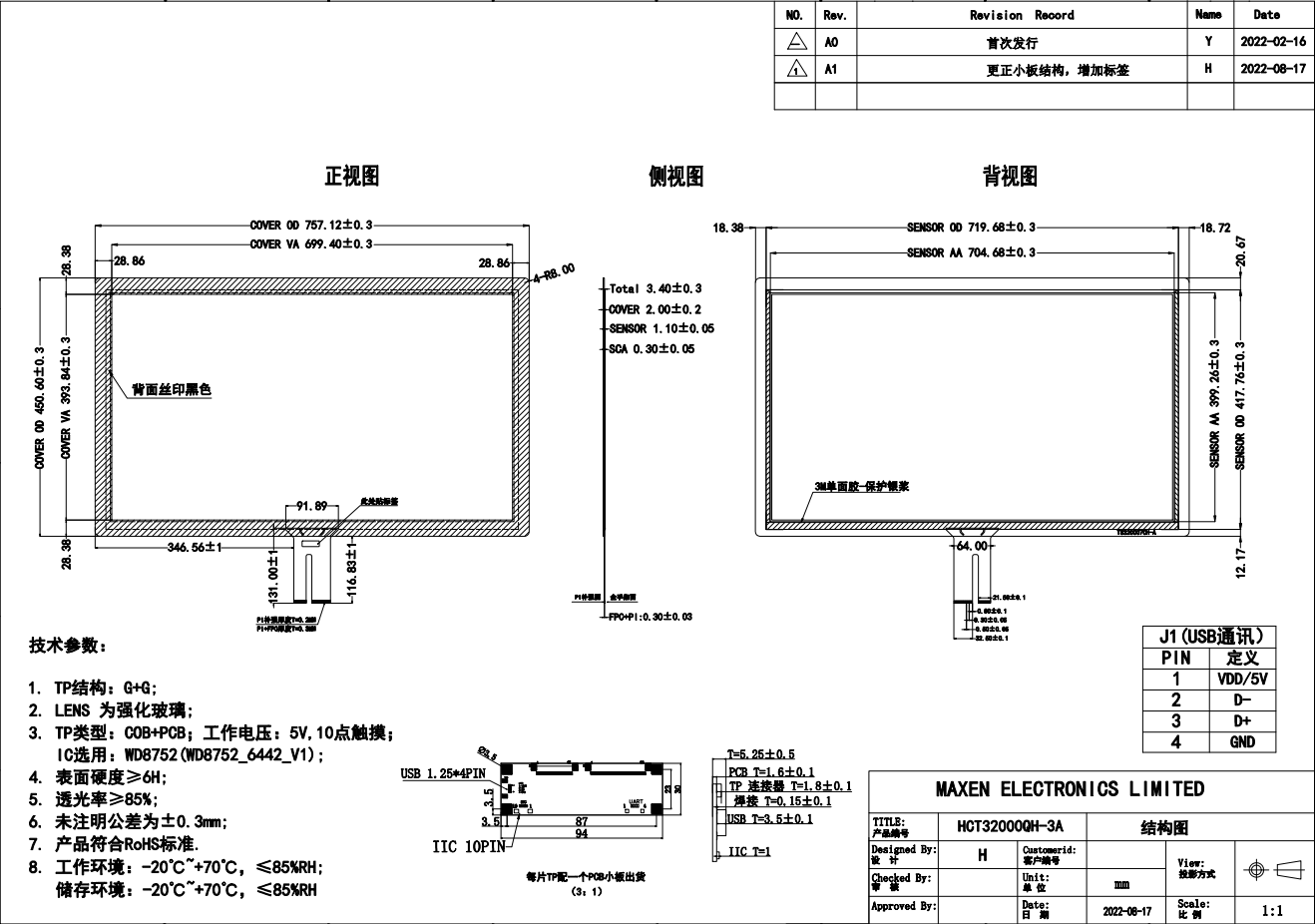

Product Structure
