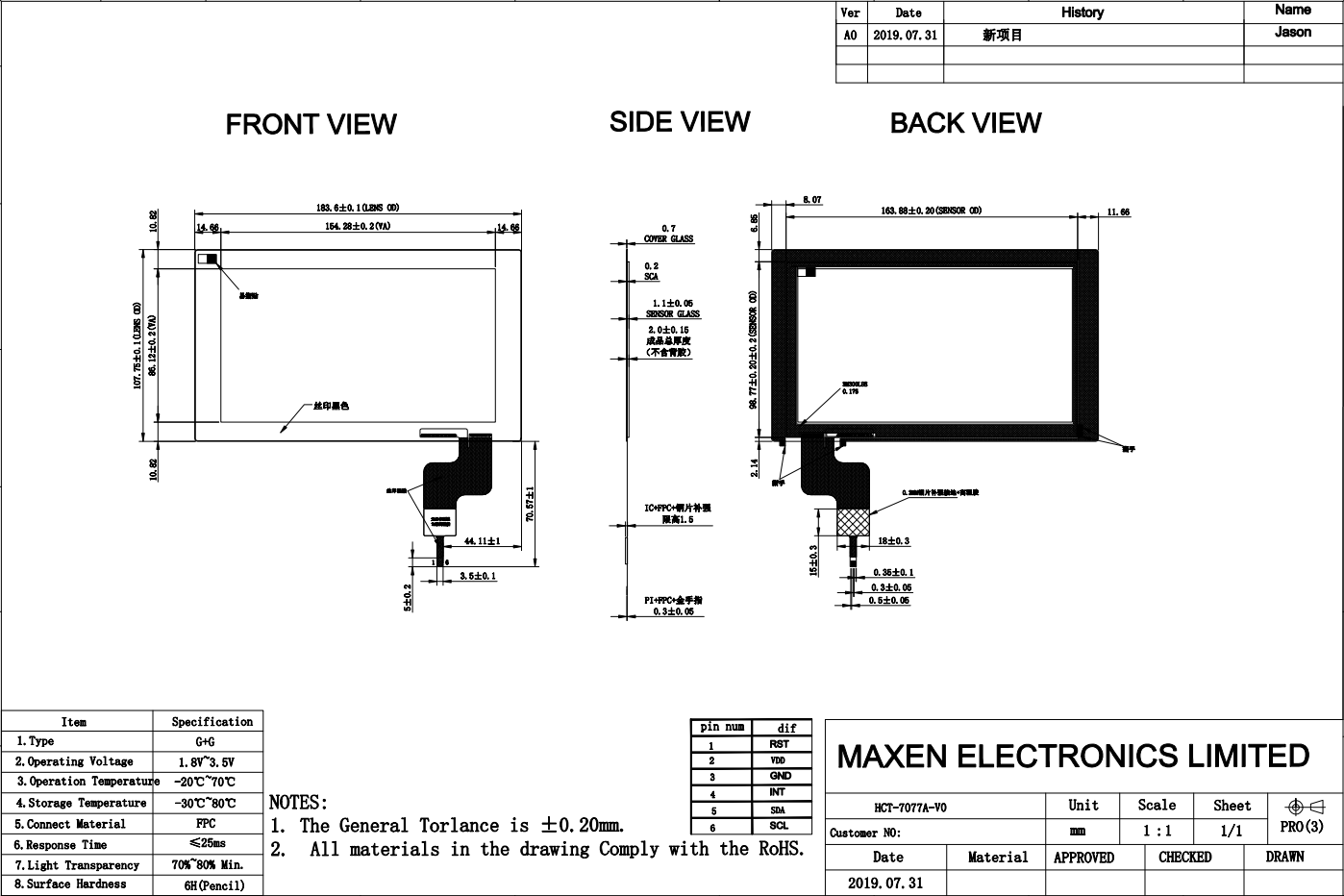

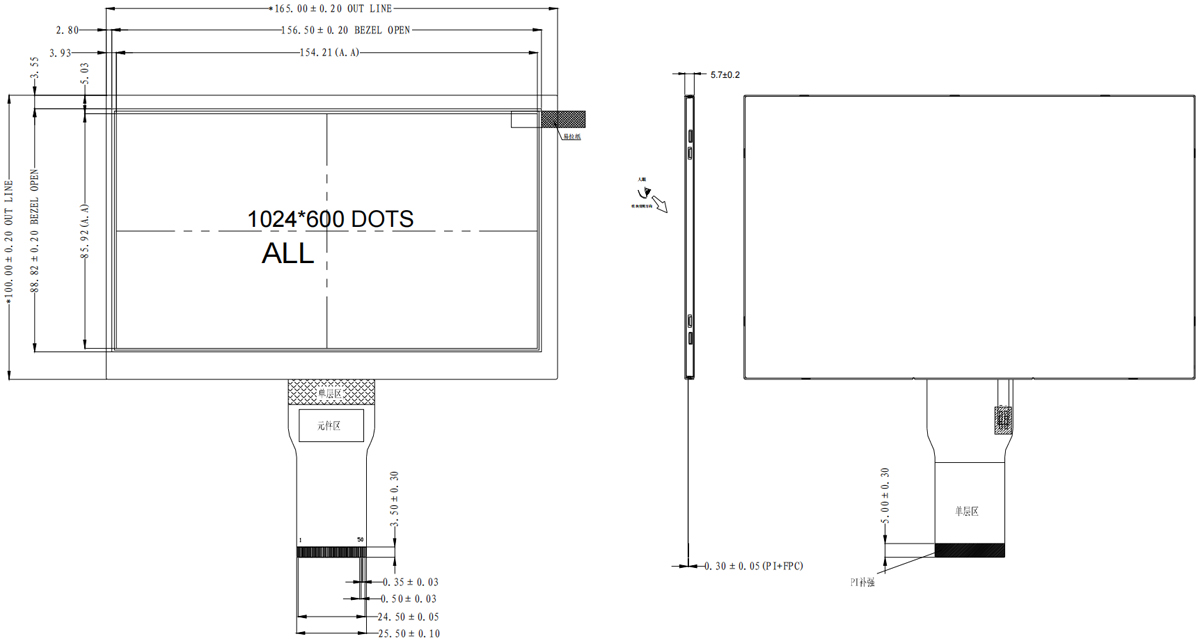

Pin NO.

SYMBOL

I/O

DESCRIPTION

1~2

VLED+

P

Power for LED backlight (Anode)

3~4

VLED-

P

Power for LED backlight (Cathode)

5

GND

P

Power ground

6

VCOM

I

Common Voltage

7

DVDD

P

Digital Power

8

MODE

I

DE/SYNC mode select

9

DE

I

Data Enable signal

10

VSYNC

I

Vertical sync input

11

HSYNC

I

Horizontal sync input

12

B7

I

Blue data (MSB)

13~18

B6~B1

I

Blue data

19

B0

I

Blue data (LSB)

20

G7

I

Green data (MSB)

21~26

G6~G1

I

Green data

27

G0

I

Green data (LSB)

28

R7

I

Red data (MSB)

29~34

R6~R1

I

Red data

35

R0

I

Red data (LSB)

36

GND

P

Power ground

37

DCLK

I

Clock input

38

GND

P

Power ground

39

SHLR

I

Left/Right Selection

40

UPDN

I

Up/Down Selection

41

VGH

P

Gate ON Voltage

42

VGL

P

Gate OFF Voltage

43

AVDD

P

Power for Analog Circuit

44

RESET

I

Global reset pin

45

NC

-

Not connection

46

VCOM

I

Common Voltage

47

DITH

I

Dithering function enable control

48

GND

P

Power ground

49~50

NC

-

Not connection

Item

Symbol

Min.

Max.

Unit

Digital Supply Voltage

VDD

-0.3

3.6

V

Analog Supply Voltage

AVDD

-0.5

14.85

V

TFT Gate ON Voltage

VGH

0.3

20

V

TFT Gate OFF Voltage

VGL

-20

0.3

V

TFT Common Electrode Voltage

VCOM

0

6

V

Operating Temperature

T_OP

-20

70

°C

Storage Temperature

T_ST

-30

80

°C
