Wide Temperature 12.1 inch LCD Screen

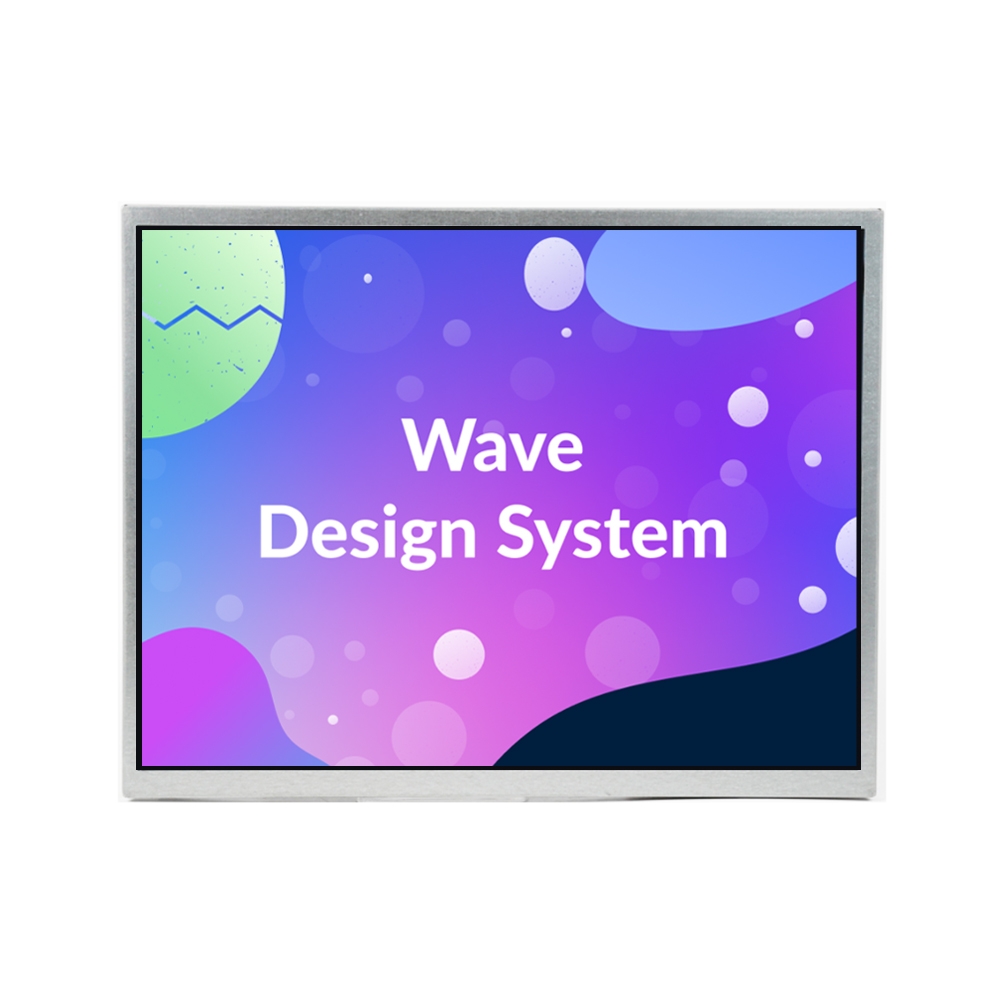

Wide Temperature 12.1 inch LCD Screen, IPS type, LVDS interface, XGA 1024x768.
► Model NO: MX-H121HL20-IW01
► Size: 12.1"
► Resolution: 1024*768 Pixels
► Display Mode: IPS
► Brightness: 600 Nits
► Interface: LVDS 20 PIN
► Module Size: 260.50x204.00x8.60 mm
► Active Area: 245.76x184.32 mm
► Display Color: 16.7M
► LED Life Time: 30,000 Hr (Min.)
► Touch Screen: Without (Optional)

Make an inquiry

Description

MAXEN MX-H121HL20-IW01 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. The 12.1 inch LCD Screen model is composed of a TFT LCD panel, a driving circuit and a backlight system. This TFT LCD has a 12.1 inch diagonally measured active display area with XGA (1024 horizontal by 768 vertical pixel) resolution and it supports LVDS interface. MX-H121HL20-IW01 is adopted IPS panel which is having the advantage of wider view angle of 85/85/85/85, contrast ratio 900:1 (typical value), brightness 600 nits (typical value), anti-glare surface panel, aspect ratio 4:3. MX-H121HL20-IW01 model is also available in projected capacitive touch screen (PCAP) and resistive touch screen (RTP).

The supply voltage(VDD) of MX-H121HL20-IW01 is from 3.0V to 3.6V, the typical value of 3.3V. It can be operating at temperatures from -30℃ to+ 80℃ and storage temperatures from -30℃ to +80℃. It is a wide temperature LCD Screen which is suitable for use in industrial and extreme environments.

Product Structure

LCD PIN Function

Pin NO.	Symbol	Description	Note
1	RX3+	Differential Data Input, CH3 (Positive)
2	RX3-	Differential Data Input, CH3 (Negative)
3	BIST	Normal operation/BIST pattern select.	Note*
		BIST="1" : BIST mode.
		BIST="0" : Normal operation.
4	SEL68	6bit/8bit mode select,	Note*
		SELB = “1” : LVDS input data is 8bits
		SELB = “0” : LVDS input data is 6bits
5	GND	Ground
6	RXC+	Differential Clock Input (Positive)
7	RXC-	Differential Clock Input (Negative)
8	GND	Ground
9	RX2+	Differential Data Input, CH2 (Positive)
10	RX2-	Differential Data Input, CH2 (Negative)
11	GND	Ground
12	RX1+	Differential Data Input, CH1 (Positive)
13	RX1-	Differential Data Input, CH1 (Negative)
14	GND	Ground
15	RX0+	Differential Data Input, CH0 (Positive)
16	RX0-	Differential Data Input, CH0 (Negative)
17	reLR	Left or right display control	Note*
		SHLR="1" : Right → Left
		SHLR="0" :Left → Right
18	reUD	Up / down display control	Note*
		UPDN="1" : Down → Up
		UPDN="0" : Up → Down
19	VDD	Power supply, 3.3V
20	VDD	Power supply, 3.3V

Note* : The high level voltage “1” is 3.3V, and the low level voltage “0” is GND.

TFT LCD Module Electrical Absolute Ratings

Item	Symbol	Min.	Max.	Unit	Note
Logic supply voltage	V_DD	-0.3	5	V
Back-light supply voltage	V_i	-0.3	28	V

Environment Absolute Ratings

Item	Symbol	Min.	Max.	Unit	Note
Operating Temperature	T_opa	-30	80	℃
Storage Temperature	T_stg	-30	80	℃

ELECTRICAL CHARACTERISTICS

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Supply Voltage	V_DD	3.0	3.3	3.6	V
Current of Power supply	I_DD	-	0.25	-	A	VDD =3.3V white pattern (L255)
VDD Power	P_DD	-	0.8	1.2	W	VDD =3.3V white pattern (L255)
Inrush current	I_RUSH	-	-	2.0	A	Note*

Note* : Inrush current test circuit and rising time setting (power on)

Backlight Unit

Parameter	Symbol	Min.	Typ.	Max.	Units	Condition
Input Current	I_i	-	850	1200	mA	Ta=25℃
Input Voltage	V_i	10	12	16	Volt	Ta=25℃
LED Life Time	N/A	30,000	-	-	Hour	Ta=25℃, I_F=52.5mA, Note(2)
