: HDMI TFT LCD Modules, HDMI LCD Displays

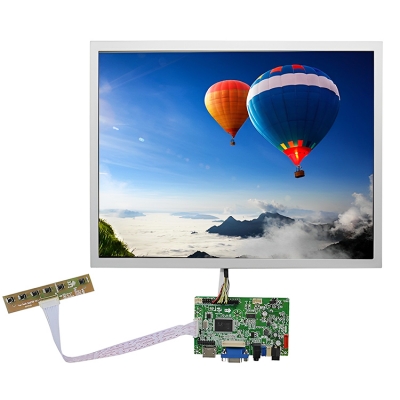

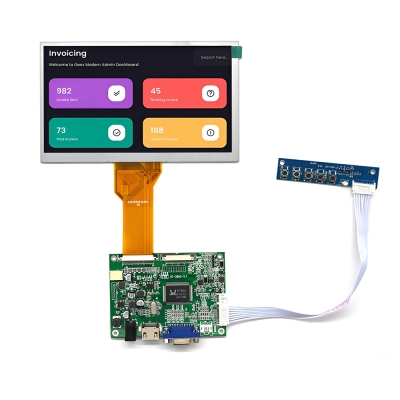

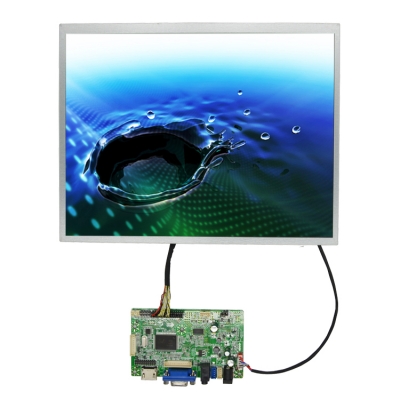

MAXEN HDMI TFT LCD Modules consist of HDMI conversion boards and MAXEN TFT LCD Display. The HDMI conversion boards have been developed to provide an all-in-one solution, allowing developers and makers to quickly add a TFT LCD display to their designs. Rather than using an FPC (Flexible Printed Circuit) ribbon cable, users can connect a standard HDMI cable from their desired board or computer right into the TFT module. MAXEN HDMI TFT LCD Modules are available in 7" to 43" versions. These LCD Display Modules all offer the choice of capacitive, resistive, or no-touch panel. Standard, Premium, or Sunlight Readable TFT Display options are also available in selected sizes. The non-touch panel variant of the HDMI Display Modules has just two simple connections required to get the module up and running, DC power and the HDMI interface. The touch panel variants need just an additional USB connection to automatically load up their touch functionality via the USB-HID (USB Human Interface Device) interface.

SEND INQUIRY

Size	Resolution	Model No.	Type	PIN	Interface	Brightness	Technology	Viewing Angle(T/B/L/R)	O.T	L.T	Outline Dimension	Active Area

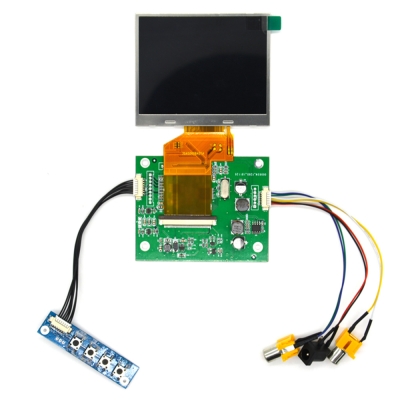

3.5"	320x240	MX-035NT54-PB	TFT	/	AV (CVBS)	550 nits	IPS	80/80/80/80	-30~85 °C	50K Hr.	76.9063.903.20	70.08*52.56

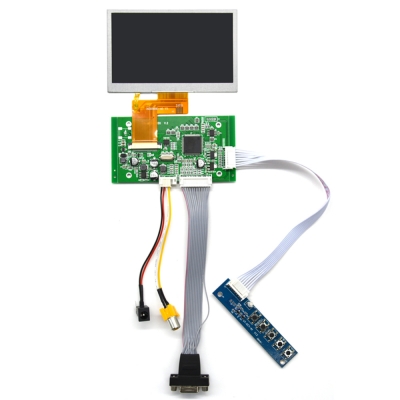

4.3"	480x272	MX-043NR40-PB	TFT	/	VGA	350 nits	TN	45/50/70/70	-20~70 °C	50K Hr.	105.5067.203.00	95.04*53.86

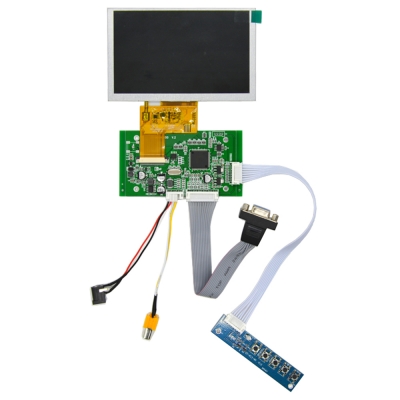

5.0"	800x480	MX-050HR40-PB	TFT	/	VGA	500 nits	TN	70/50/70/70	-20~70 °C	50K Hr.	120.7075.903.05	108.00*64.80

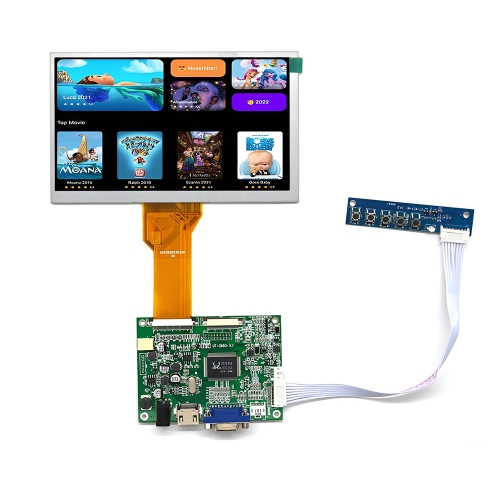

7.0"	800x480	MX-070NR50-PB	TFT	/	HDMI	300 nits	TN	50/70/70/70	-20~70 °C	50K Hr	164.90100.003.50	154.08*85.92

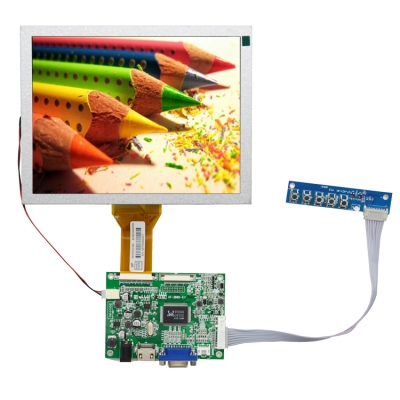

8.0"	800x600	MX-080NR50-PB	TFT	/	HDMI	1000 nits	TN	50/70/70/70	-20~70 °C	50K Hr.	183.00141.005.80	162.00*121.50

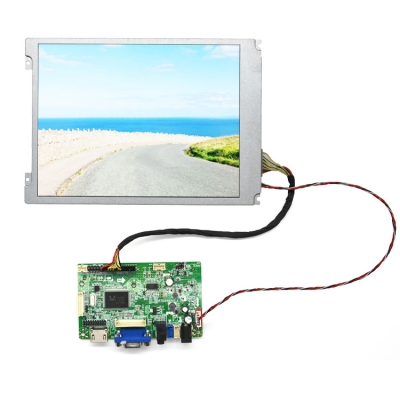

8.4"	800x600	MX-084HL20-PB	TFT	/	HDMI	350 nits	TN	80/60/80/80	-20~70 °C	50K Hr.	203.00142.505.70	170.40*127.80

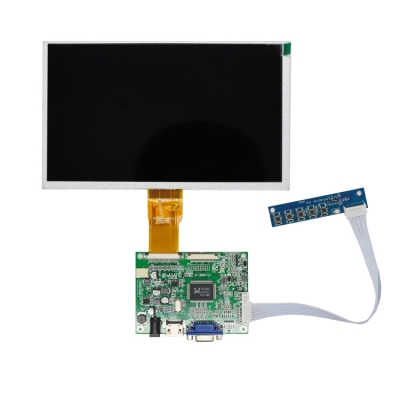

9.0"	1024x600	MX-090HR50-PB	TFT	/	HDMI	450 nits	IPS	80/80/80/80	-20~70 ℃	50K Hr.	210.70126.405.00	196.61*114.15
10.1"	1024x600	MX-101HR50-PB	TFT	/	HDMI	1000 nits	IPS	85/85/85/85	-20~70 °C	50K Hr.	235.00143.005.20	222.72*125.28
12.1"	1024x768	MX-121HL20-PB	TFT	/	HDMI	600 nits	IPS	85/85/85/85	-30~80 °C	30K Hr.	260.50204.008.60	245.76*184.32
15.0"	1024x768	MX-150HL20-PB	TFT	/	HDMI	1000 nits	IPS	89/89/89/89	-20~70 °C	50K Hr.	326.50253.509.70	304.13*228.10

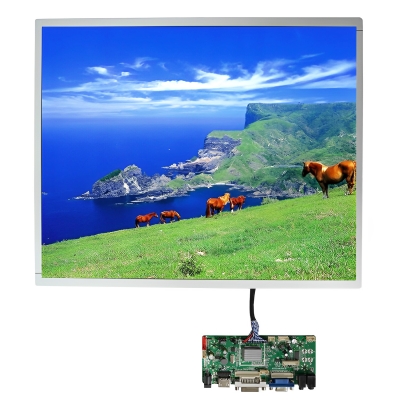

19.0"	1280x1024	MX-190FL30-PB	TFT	/	HDMI	250 nits	IPS	89/89/89/89	0~50 ℃	30K Hr.	396.00324.009.90	374.78*299.83
