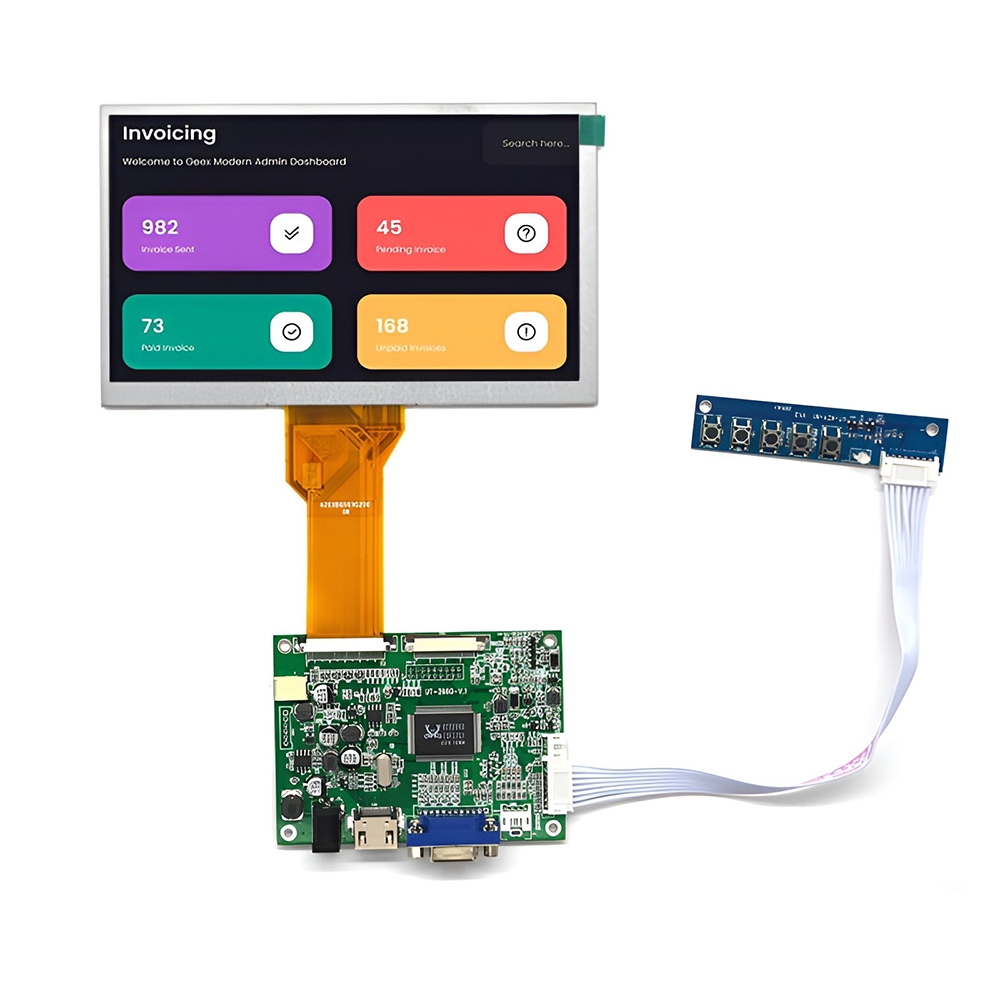

MX-070NR50-PB is a 7 inch HDMI LCD module, composed with 7 inch 800x480 LCD display (MX-70T5080018L14SRI) and HDMI driver board, equipped with the following key features:

• A vibrant TFT LCD screen for clear, vivid displays.
• An HDMI driver board and external cables for efficient setup and connectivity.
• Acceptance of VGA, CVBS, and HDMI video signal inputs for versatile multimedia connections.
• A DC+12V power supply input for reliable operation.
• A multifunctional On-Screen Display (OSD) menu for comprehensive control of settings.
• Utilizes the robust RTD2660 controller chipset for high performance.
• An optional remote control feature for added convenience.
• Energy-efficient with automatic power-off functionality when no signal input is detected.
• Can be used as a general-purpose HDMI monitor, such as connecting with a computer HDMI as a secondary display.

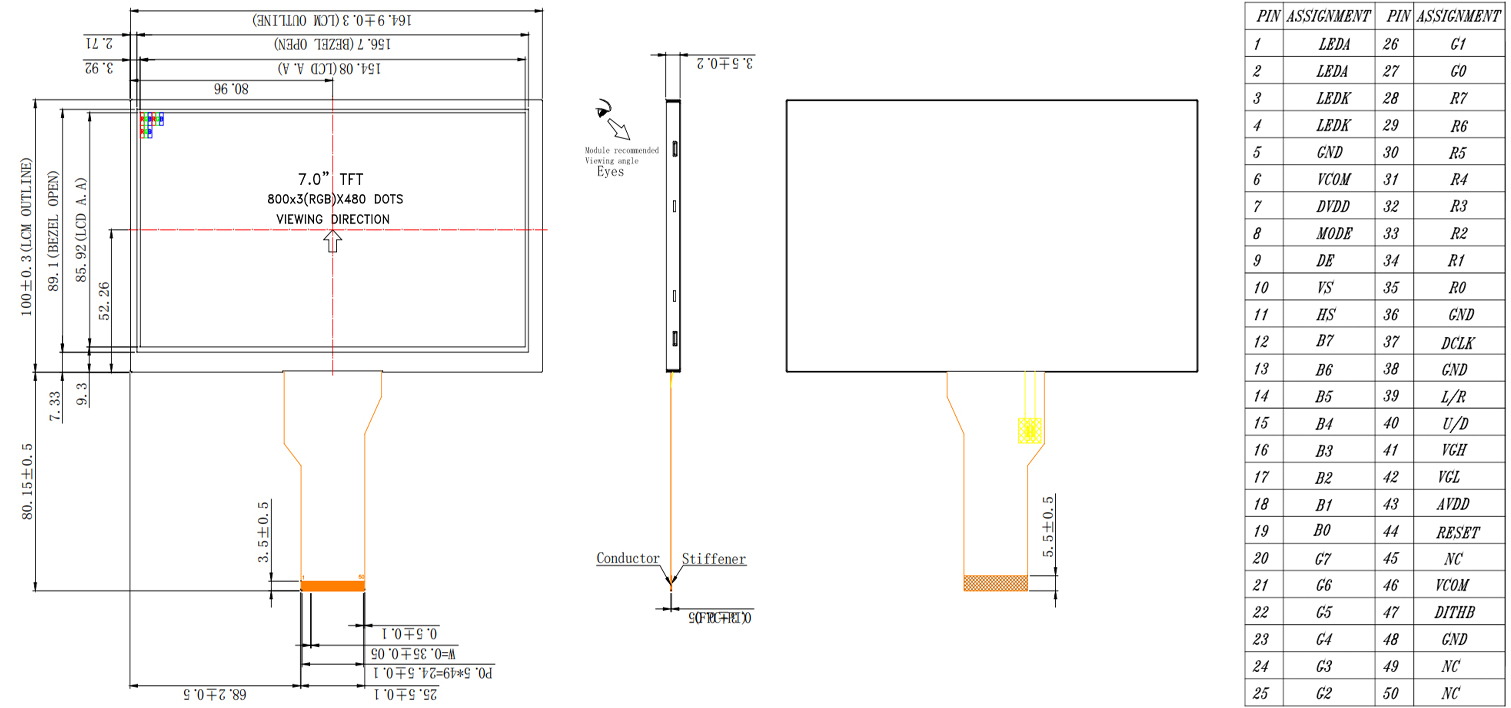

Product Structure


HDMI BOARD OUTLINE DESIGN
