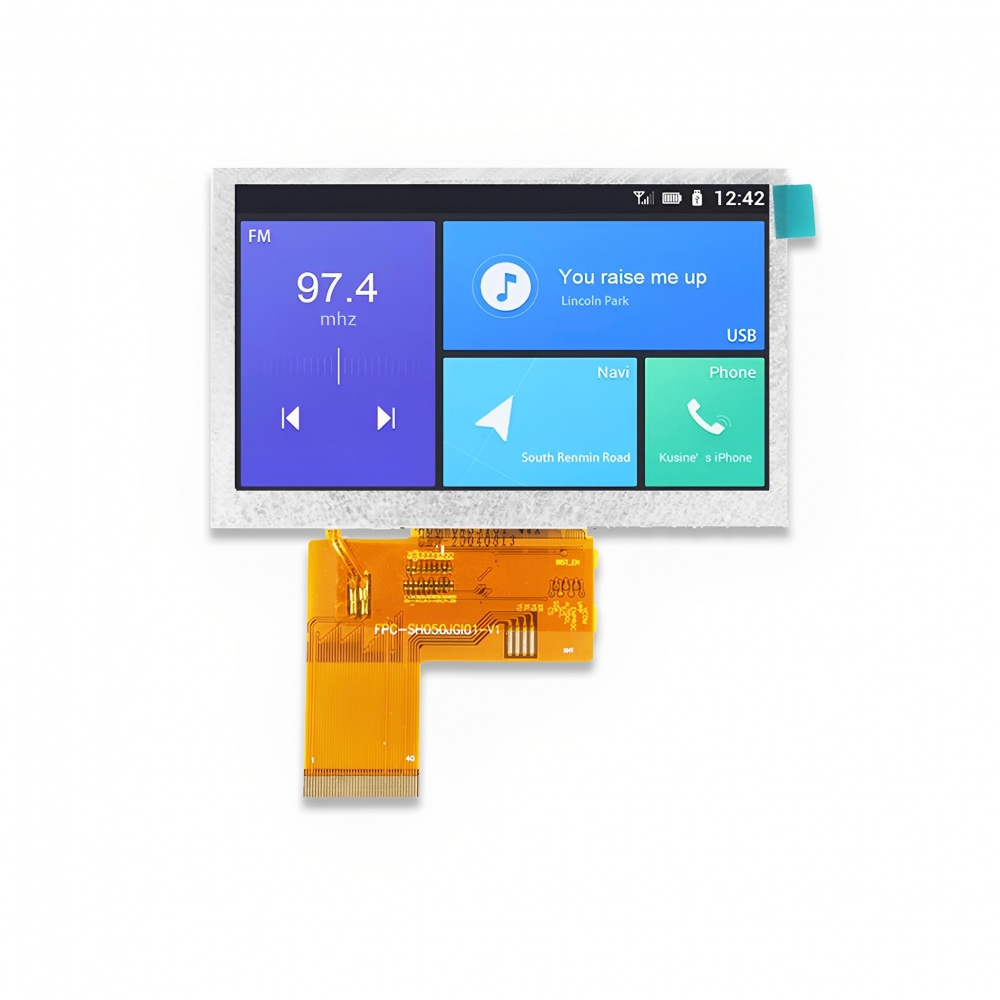

4.3 inch IPS LCD Display

Model NO: MX-B43HR-40IS13
► Size: 4.3"
► Resolution: 800*480 Pixels
► Display Mode: IPS
► Brightness: 500 Nits
► Interface: RGB 40 PIN
► Module Size: 105.42x67.07x2.90 mm
► Active Area: 95.04x53.86 mm
► Display Color: 16.7M
► Driver IC: /
► LED Life Time: 30,000 Hr (Min.)
► Touch Screen: Without (Optional)

Make an inquiry

Description

MAXEN MX-B43HR-40IS13 4.3 inch LCD Display features In-Plane Switching (IPS) and high brightness screen with 800x480 resolution. The 4.3 inch IPS LCD Display supports RGB interface which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). This 4.3 inch LCD Display also offers high contrast, high brightness, and wider viewing angles. The MX-B43HR-40IS13 displays are available in different touchscreen options including capacitive or without a touchscreen. These IPS LCD displays are all RoHS compliant.

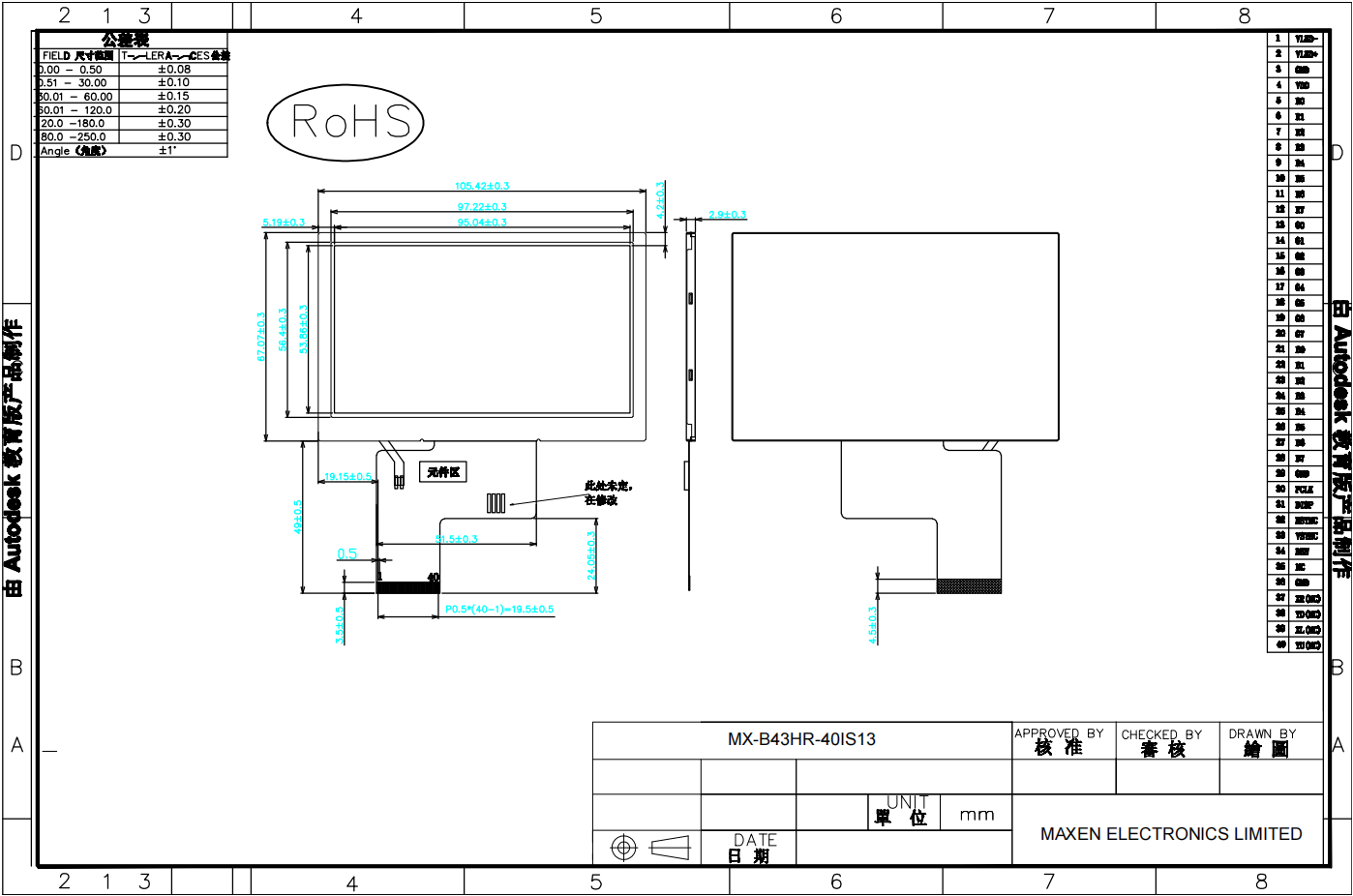

Product Structure

LCD PIN Function

Pin NO.	Symbol	Description.
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Stand by mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Power supply	VDD	-0.3	-	3.96	V
	AVDD	-0.5	-	14.85	V
	VGL	-	-10.5	-	V
	VGH	-	13	-	V
Operating Temperature	T_OP	-20	-	70	°C
Storage Temperature	T_ST	-30	-	85	°C

Electrical Characteristics

Parameter		Symbol	Condition	Min	Typ	Max	Unit	Note
Power supply		VDD	Ta=25℃	2.8	3.3	3.6	V
Input voltage	‘H’	V_IH	VDD=3.3V	0.7VDD	-	VDD	V
Input voltage	‘L’	V_IL	VDD=3.3V	0	-	0.3VDD	V
Current Consumption		I_CC1	Normal mode	-	-	-	mA	2
Current Consumption		I_CC2	Sleep mode	-	0.03	0.09	mA	2
