3.5 inch LCD Display Panel

Model NO: MX-35T5432024006L01T
► Size: 3.5"
► Resolution: 320*240 Pixels
► Display Mode: TN
► Brightness: 350 Nits
► Interface: RGB 54 PIN
► Module Size: 76.80x63.80x3.26 mm
► Active Area: 70.08x52.56 mm
► Display Color: 16.7M
► Driver IC: HX8238-D
► LED Life Time: 50,000 Hr (Typ.)
► Touch Screen: Without (Optional)

Make an inquiry

Description

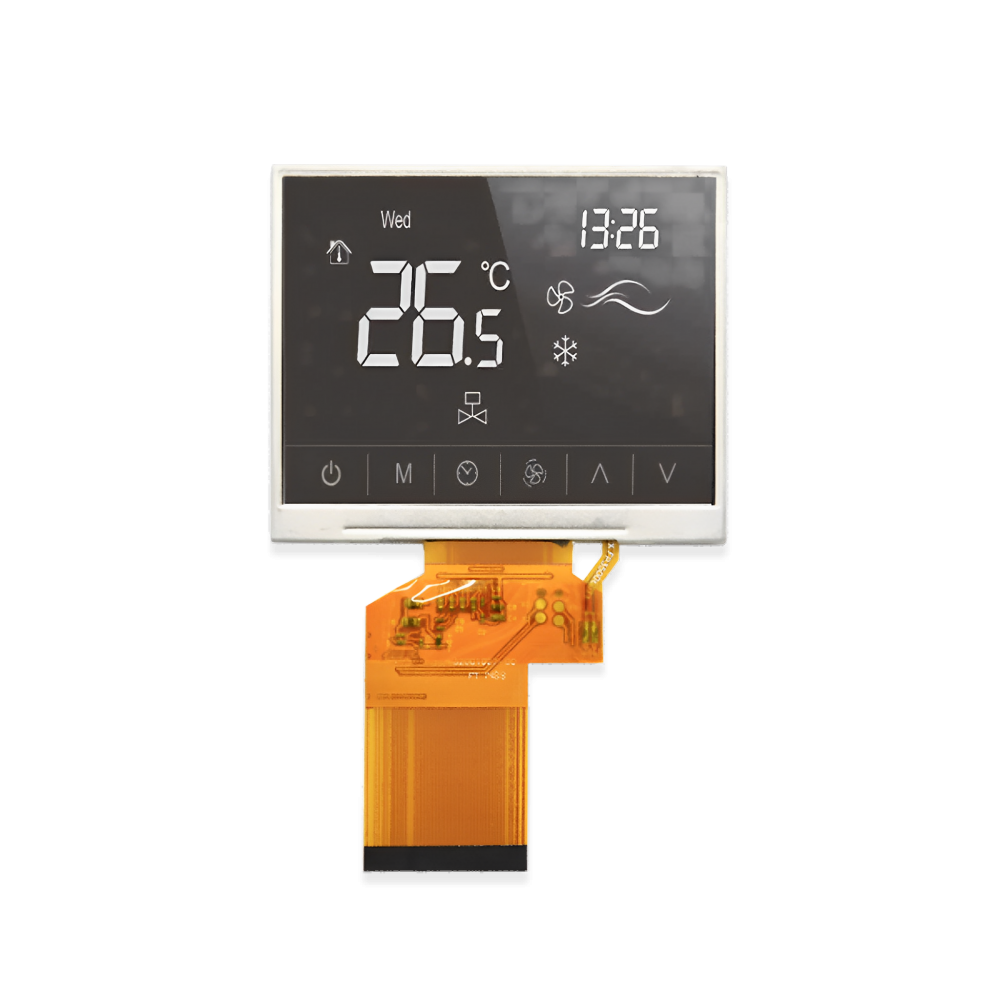

MAXEN MX-35T5432024006L01T is 3.5 inch LCD Display Panel. It is a replacement LCD Display of Innolux LQ035NC111. This 3.5" LCD Display Panel supports display 320(RGB)x240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)x52.56(H) mm, outline size of 76.80(W)x63.80(H)x3.26(T) mm. As a TN, Normally White, Transmissive LCM product, MX-35T5432024006L01T can provides 350 cd/m² display brightness 400:1 transimissive contrast ratio, 50/60/70/75 (Typ.)(CR≥10) (U/D/L/R) viewing angle, best view direction on 6 o‘clock.

Product Structure

LCD PIN Function

PIN NO.	PIN NAME	DESCRIPTION
1	LEDK	LED backlight cathode
2	LEDK	LED backlight cathode
3	LEDA	LED backlight cathode
4	LEDA	LED backlight cathode
5	YU	RTP (No connection)
6	XR	RTP (No connection)
7	NC	No connection
8	RESET	Reset signal input terminal, active at ‘L’.
9	CS	Chip select signal input terminal, active at ‘L’.
10	SCK	Write signal input terminal, Active at ‘L’. Synchronizing clock signal in SPI mode.
11	SDA	SPI interface input pin
12	B0	Data bus
13	B1	Data bus
14	B2	Data bus
15	B3	Data bus
16	B4	Data bus
17	B5	Data bus
18	B6	Data bus
19	B7	Data bus
20	G0	Data bus
21	G1	Data bus
22	G2	Data bus
23	G3	Data bus
24	G4	Data bus
25	G5	Data bus
26	G6	Data bus
27	G7	Data bus
28	R0	Data bus
29	R1	Data bus
30	R2	Data bus
31	R3	Data bus
32	R4	Data bus
33	R5	Data bus
34	R6	Data bus
35	R7	Data bus
36	HSYNC	Line synchronizing signal for RGB interface operation.
37	VSYNC	Frame synchronizing signal for RGB interface operation.
38	DCLK	Dot clock signal for RGB interface operation.
39	NC	No connection
40	NC	No connection
41	VCC	System power supply.
42	VCC	System power supply.
43	YD	RTP (No connection)
44	XL	RTP (No connection)
45	NC	No connection
46	NC	No connection
47	NC	No connection
48	IF2	Define the input interface (Note1)
49	IF1	Define the input interface (Note1)
50	IF0	Define the input interface (Note1)
51	NC	No connection
52	DE	Data ENEABLE signal for RGB interface operation.
53	GND	Power ground
54	GND	Power ground

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Analog Supply Voltage	VCC	-0.3	4	V
Input Voltage	Vin	GND-0.3	5	V
Operating Temperature	TOP	-20	70	°C
Storage Temperature	TST	-30	80	°C
Storage Humidity	HD	-	90	%RH

Electrical Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit	Remark
Analog Supply Voltage	VCC	2.5	-	3.6	V	-
Input High Voltage	V_IH	0.8	-	-	V	-
Input Low Voltage	V_IL	0	-	0.2	V	-
Output High Voltage	V_OH	0.9	-	-	V	-
Output Low Voltage	V_OL	0	-	0.1	V	-
Logic Input Current	I_IL/I_IH	-1	-	1	uA	-

Backlight Characteristics

Item	Symbol	MIN.	TYP.	MAX.	UNIT	Test Condition
Supply Voltage	Vf	18.6	19.2	21	V	If=20mA
Supply Current	If	15	20	25	mA	-
Luminous Intensity For LCM	-	300	350	-	Cd/m²	If=20mA
Power consumption	-	0.279	0.384	0.525	W	If=20mA
Uniformity for LCM	-	80	-	-	％	If=20mA
Life time	-	30,000	50,000	-	Hr
Backlight Color	White
