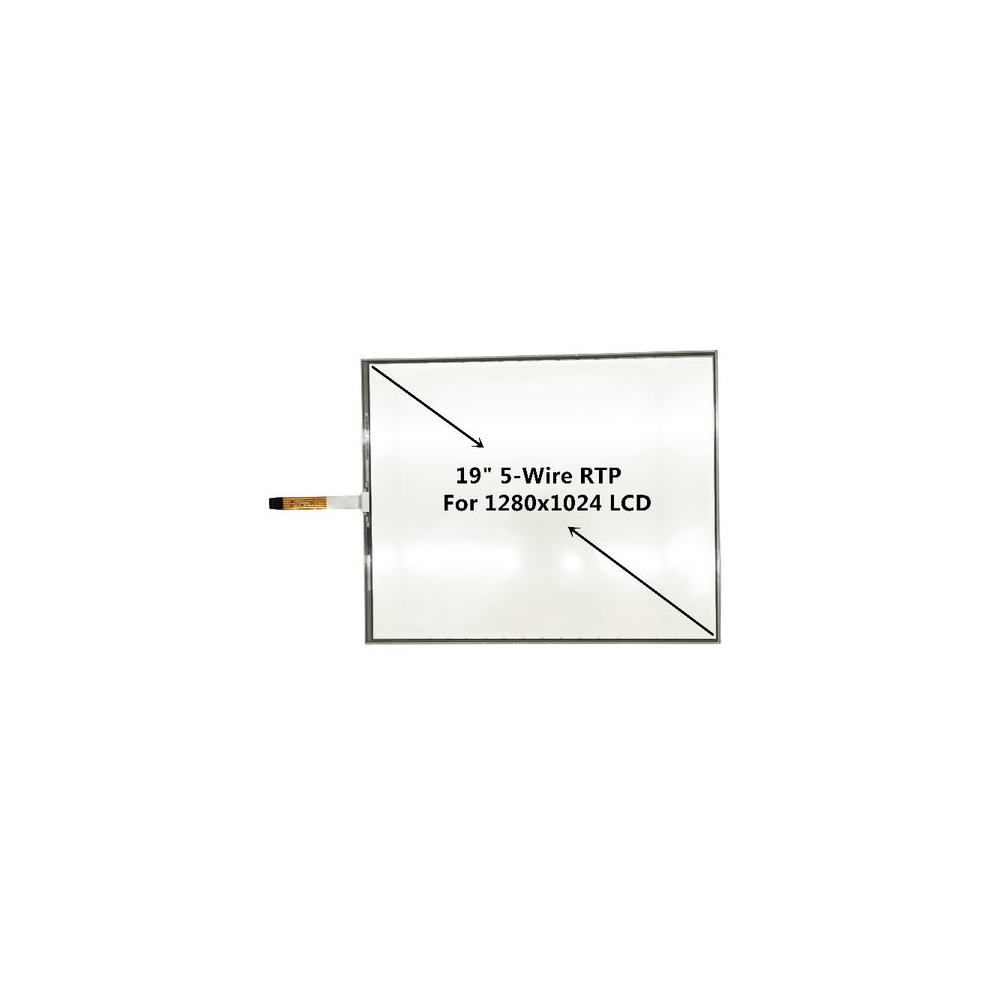

HCT190A5B003-A is a standard 19 inch 5-wire resistive touch screen constructed from ITO on 0.188 mm film substrate, providing an extremely robust structure with excellent optical properties. This touch sensor is typically optically bonded to a 1.80 mm thick strengthened cover lens with surface hardness 3H and light transmission over 78%. The flex cable is assembled with a 2.54mm 4Pin socket, can be converted to USB 2.0 interface with EETI USB controller board. This resistive is compatible with a 19 inch TFT LCD 1280x1024 resolution.

Item	Specification
Touch Screen Size	19"
Touch Interface	5-wire USB
Structure	Film to glass
Outline Dimension	396.00x323.00x2.10 mm
Valid Area	381.00x310.00 mm
ITO Film Thickness	0.188m
ITO Glass Thickness	1.80mm
Light Transmission	≥78%
Linearity	≤2.5%
Operating Force	100g or less
Operating Voltage	3~7V
Operating Temperature	-10°C~ 50°C
Storage Temperature	-20°C~ 50°C

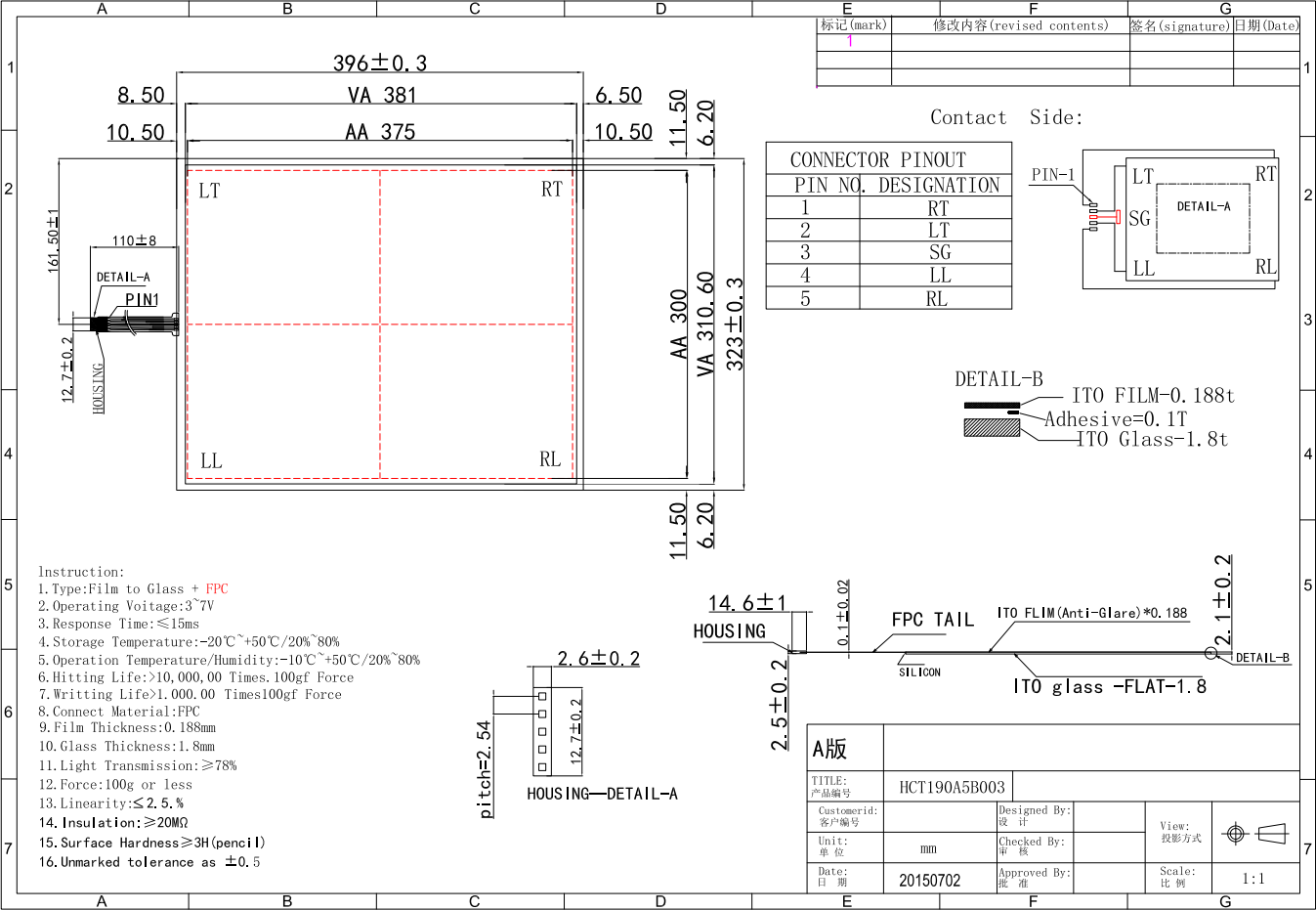

Product Structure
