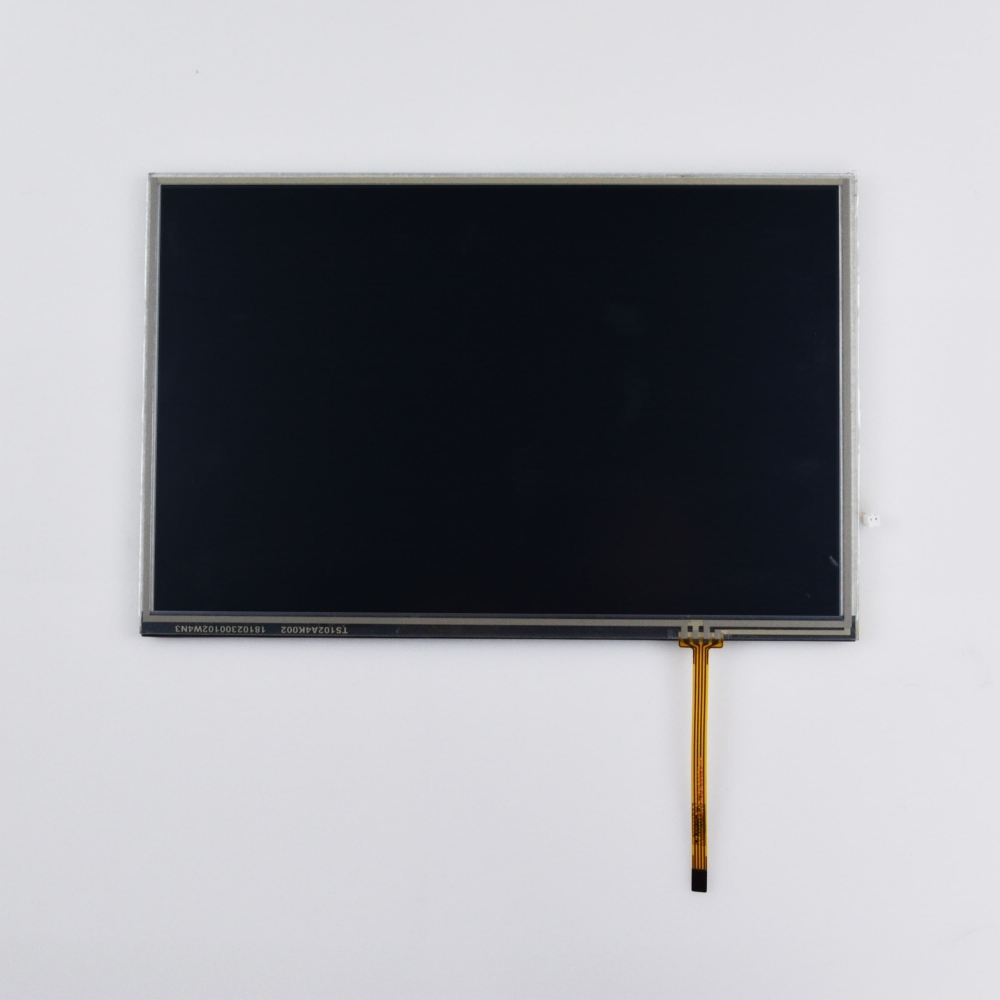

HCT102A4K002-E is a standard 10.1 inch 4-wire resistive touch screen constructed from ITO on 0.188 mm film substrate, providing an extremely robust structure with excellent optical properties. This touch sensor is typically optically bonded to a 1.10 mm thick strengthened cover lens with surface hardness 3H and light transmission over 78%. The tailend pitch is 1.0mm x 4Pin, can be converted to a USB 2.0 interface with an EETI USB controller board. This resistive is compatible with a 10.1 inch TFT LCD with 1280x800 resolution.

Item	Specification
Touch Screen Size	10.1"
Touch Interface	4-wire USB
Structure	Film to glass

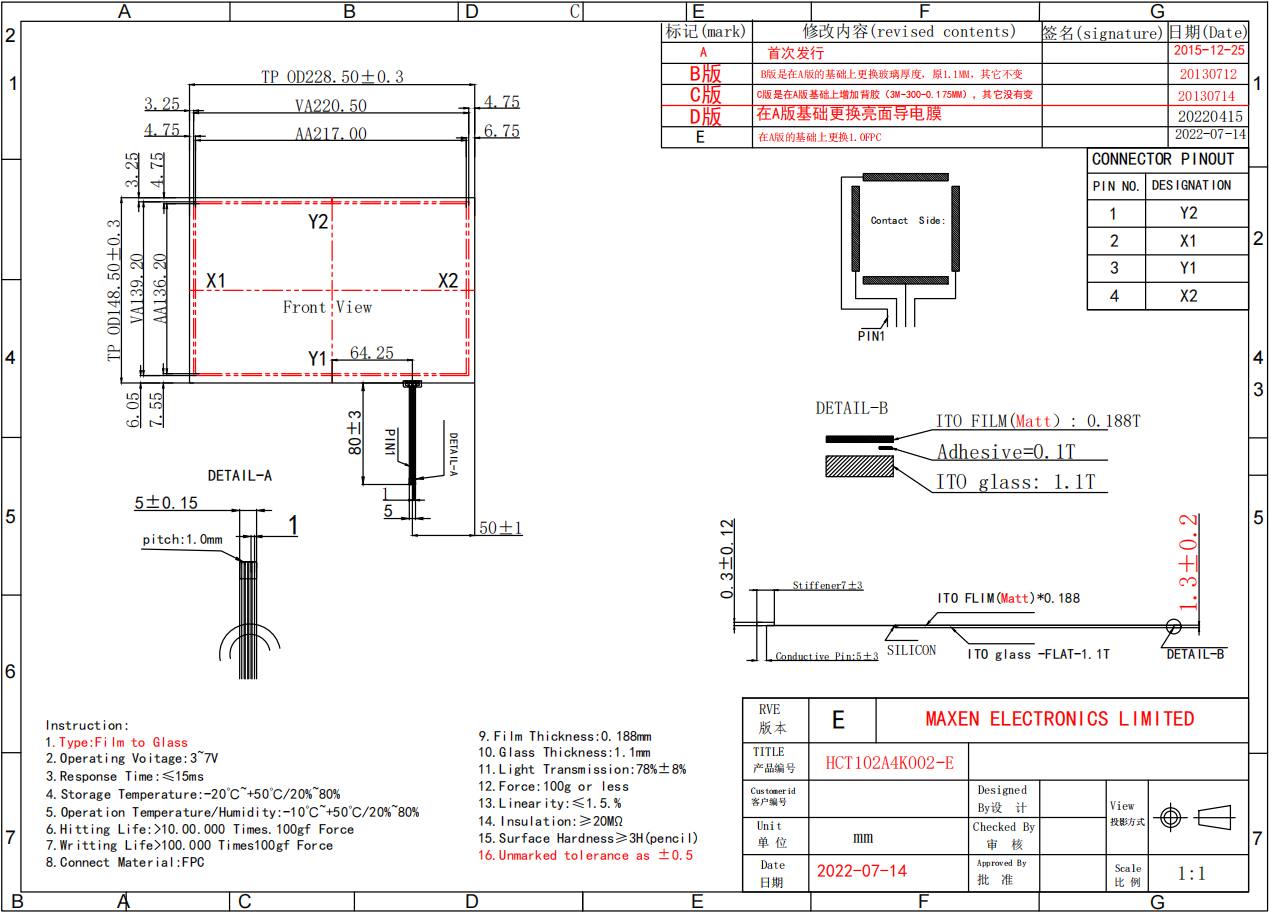

Outline Dimension	228.50x148.50x1.30 mm
Valid Area	215.00x163.60 mm
ITO Film Thickness	0.188m
ITO Glass Thickness	1.10mm
Light Transmission	≥78%
Linearity	≤1.5%
Operating Force	100g or less
Operating Voltage	3~7V
Operating Temperature	-10°C~ 50°C
Storage Temperature	-20°C~ 50°C
