MX-RTD2660H-7inch is a Raspberry Pi 7 Inch Touch Screen Display that supports HDMI input, and supports capacitive touch panel. The LCD resolution and touch screen can be custom according to customers‘ requirements. It is recommended to use for single board computer, Raspberry Pi. For more details about the Raspberry Pi 7 Inch Touch Screen Display please feel free to contact us!
|
ITEM |
STANDARD VALUES |
|
LCD Size |
7" |
|
Resolution |
800x480 |
|
TFT Type |
TN |
|
Interface Type |
RGB |
|
Touch Controller |
GT911 |
|
Touch Interface |
I2C |
|
LCD Pin Number |
50pin |
|
Outline Dimension |
164.9(H)x124.26(V.)x13.2(D) (Typ, mm) |
|
Active Area |
154.08(H)x85.92(V) (Typ, mm) |
|
Power to Panel |
3.3V |
|
Management |
Standby Power Consumption < 0.2W(Board Only) |
|
Brightness |
350 Nits (optional) |
|
Bonding Method |
OCA Bonding/Adhesive Bonding |

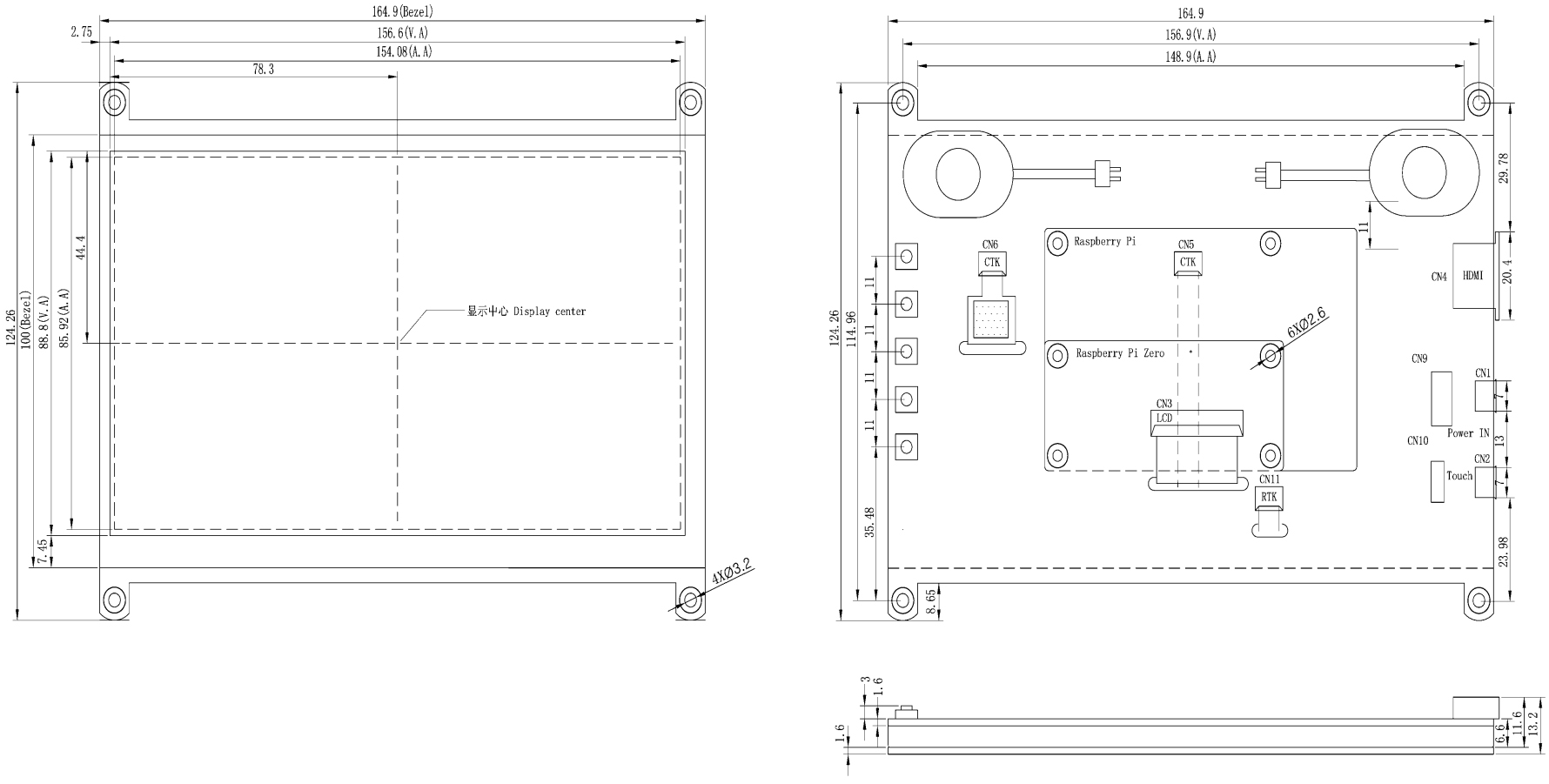

Product Structure

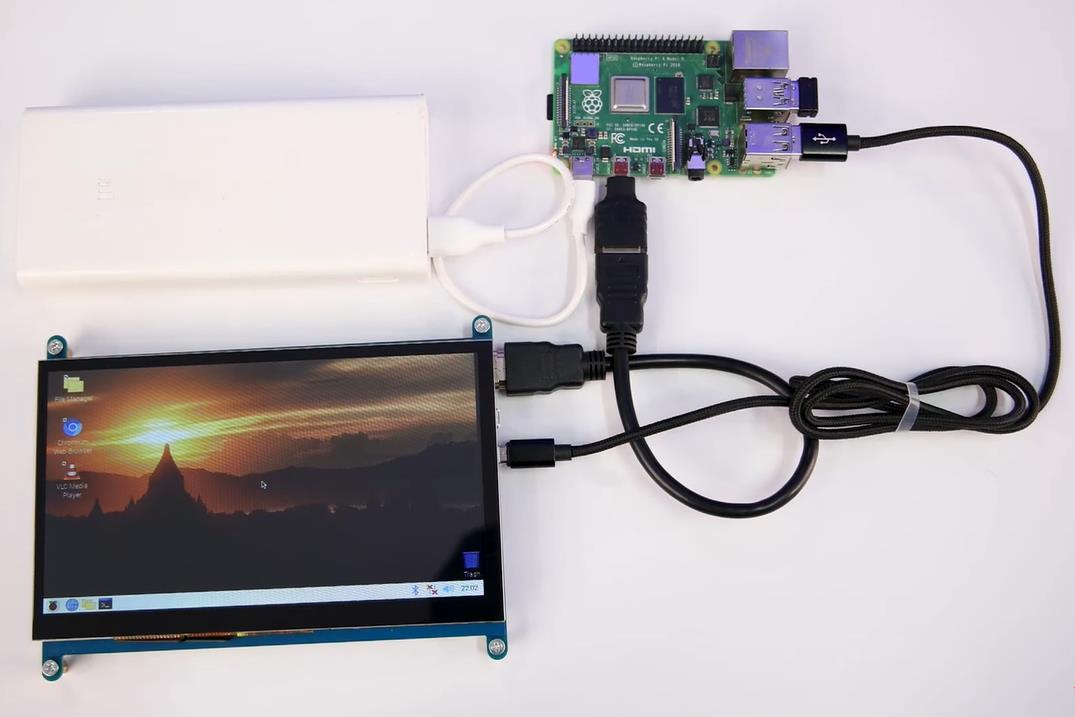

Product Application
