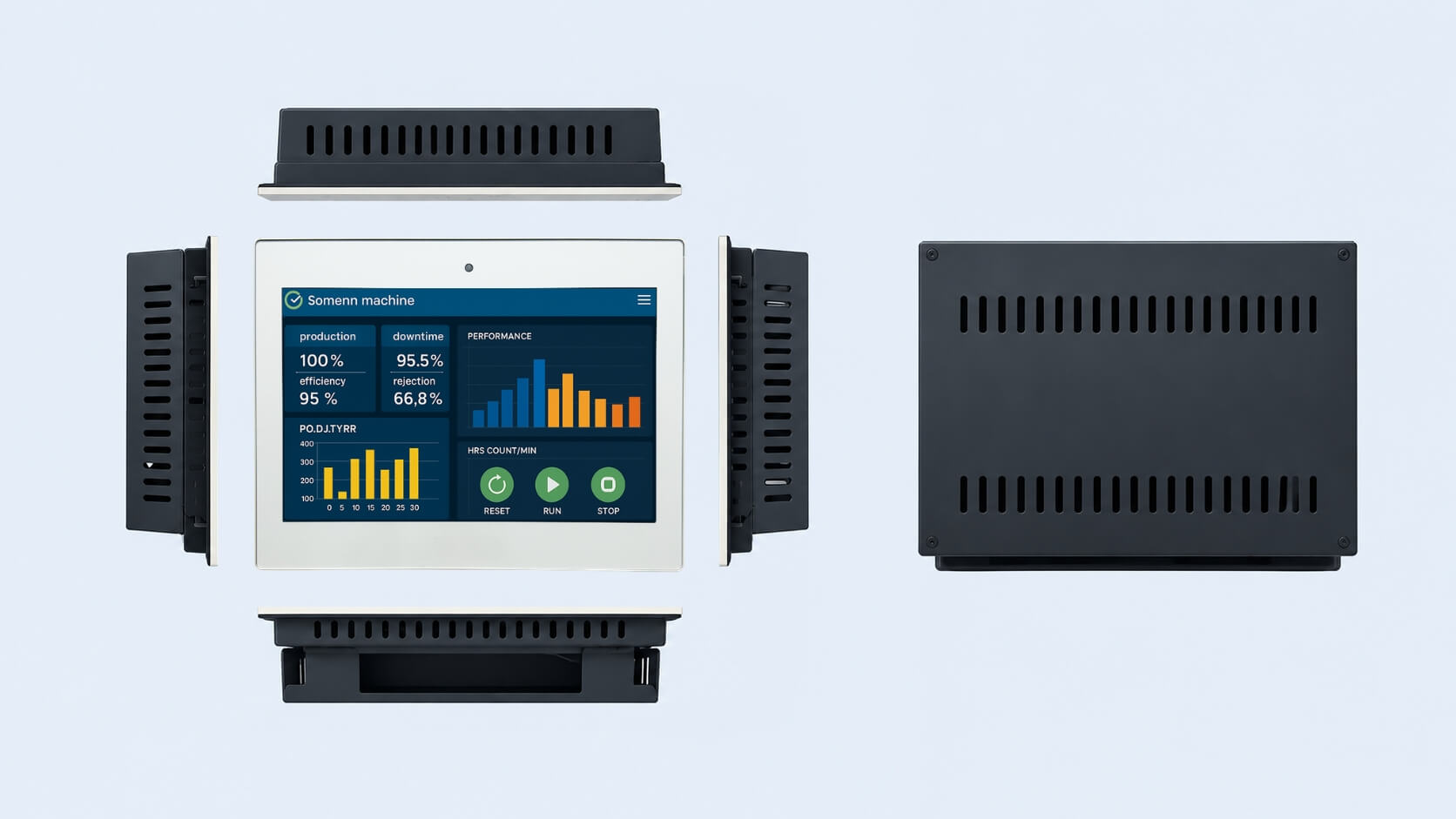

MAXEN's 10.1 inch custom HMI touch display module combines TFT LCD, capacitive touch panel and customized housing structure into an integrated display assembly for industrial equipment and embedded display applications.
For customers sourcing an Industrial HMI Display with Capacitive Touch, this module provides reliable display performance, responsive touch operation and flexible mechanical integration for customer-developed equipment.
As a custom HMI touch display manufacturer, MAXEN supports customization from industrial LCD display selection and PCAP touch integration to custom HMI housing development.
This 10.1 inch HMI display module integrates IPS TFT LCD, capacitive touch panel and customized mechanical housing for industrial equipment and embedded display applications.
| Display Size | 10.1 inch |
|---|---|
| Model No. | MX-101FL40BFS-N84 |
| Resolution | 1280×800 |
| Display Type | IPS TFT LCD |
| Brightness | 500 nits |
| Interface | 6-bit LVDS |
| Pin Number | 40 Pin |
| Outline Dimension | 228.20 × 148.85 × 2.80 mm |
| Active Area | 216.96 × 135.60 mm |
| Touch Type | PCAP Capacitive Touch |
| Operating Temperature | -20~70℃ |
| LED Life Time | 50,000 Hours (Typ.) |
The customized HMI display module combines display, touch functionality and mechanical structure into one integrated assembly.
The integrated 10.1 inch IPS TFT LCD provides stable image quality, wide viewing angles and reliable operation for industrial equipment.
MAXEN supports custom TFT LCD solutions including different display sizes, resolutions, brightness levels and interface options.
Display specifications can be customized according to product requirements, application environment and equipment design.
The integrated capacitive touch display provides responsive touch operation with customized PCAP touch panel options for industrial applications.
Customized touch sensor design for different product and application requirements.
Customized cover glass options including thickness, dimensions, printing and surface requirements.
Optical bonding can improve display durability and visibility for demanding industrial environments.
The key advantage of this custom HMI touch display module is MAXEN’s mechanical housing customization capability. Housing structure can be developed according to product dimensions, installation requirements and final equipment design.
Three-layer mechanical structure provides support and protection for LCD and touch assembly while allowing flexible integration into customer equipment.
MAXEN supports customized display and touch customization, combining TFT LCD, PCAP touch panel and mechanical housing into one display module according to customer requirements.
This custom HMI display module is designed for equipment manufacturers requiring LCD, touch and housing integration within their own products.
The display assembly is supplied as a display module rather than a complete HMI system. Customers can connect the module to their own control board, processor and software platform.
This configuration provides greater flexibility for custom embedded HMI, embedded touch display and industrial control applications.
MAXEN supports customization covering TFT LCD, capacitive touch integration and mechanical housing development, helping equipment manufacturers develop custom LCD touch display modules around their product requirements.
Display size, resolution, brightness, interface and viewing requirements can be selected according to application needs.
Support PCAP sensor design, cover glass customization, touch controller selection and optical bonding.
Support custom front bezel, support frame, rear enclosure and mechanical mounting structure development.
Customers can provide product dimensions, mechanical drawings, installation constraints or interface requirements for engineering evaluation.
Yes. MAXEN supports custom HMI housing and enclosure development, including front bezel, support structure and rear housing integrated with LCD and touch modules.
No. MAXEN focuses on HMI display modules including TFT LCD, PCAP touch, optical bonding and customized housing assemblies. Customers integrate the display module into their own equipment, control board and software system.
Customization can include TFT LCD specifications, brightness, interface, PCAP touch design, cover glass, touch controller, optical bonding and mechanical housing structure.
Yes. Customers can provide mechanical drawings, dimensions, mounting requirements or product concepts. MAXEN engineering team can evaluate housing structure and display integration requirements.
Yes. MAXEN can integrate TFT LCD, capacitive touch panel and customized housing into one display assembly while the system board and main electronics remain part of the customer’s equipment.
Please provide display size, resolution, brightness, interface, touch requirements, mechanical dimensions, mounting method and estimated project quantity. Product drawings or mechanical concepts are also helpful for engineering evaluation.
MAXEN provides custom HMI touch display modules integrating TFT LCD, capacitive touch and customized housing structures for industrial and embedded applications, including Industrial HMI Display with Capacitive Touch projects.
Share your display specifications, mechanical drawings or project requirements with MAXEN engineering team for evaluation.
