10.4 inch Projected Capacitive Touch Panel

10.4 Inch PCAP Touch Screen Projected Touch Panel For Agricultural Applications

► Model NO: HCT857GG104
► Size: 10.4"
► Touch Interface: I2C/USB
► Touch Driver IC: ILITEK ILI2511
► Touch Points: 10 Points Touch
► Touch Structure: G+G
► Cover Glass Thickness: 1.80mm
► ITO Glass Thickness: 1.10mm
► Light Transmission: ≥85%
► Glass Surface Hardness: ≥6H

Make an inquiry

Datasheet Download

Description

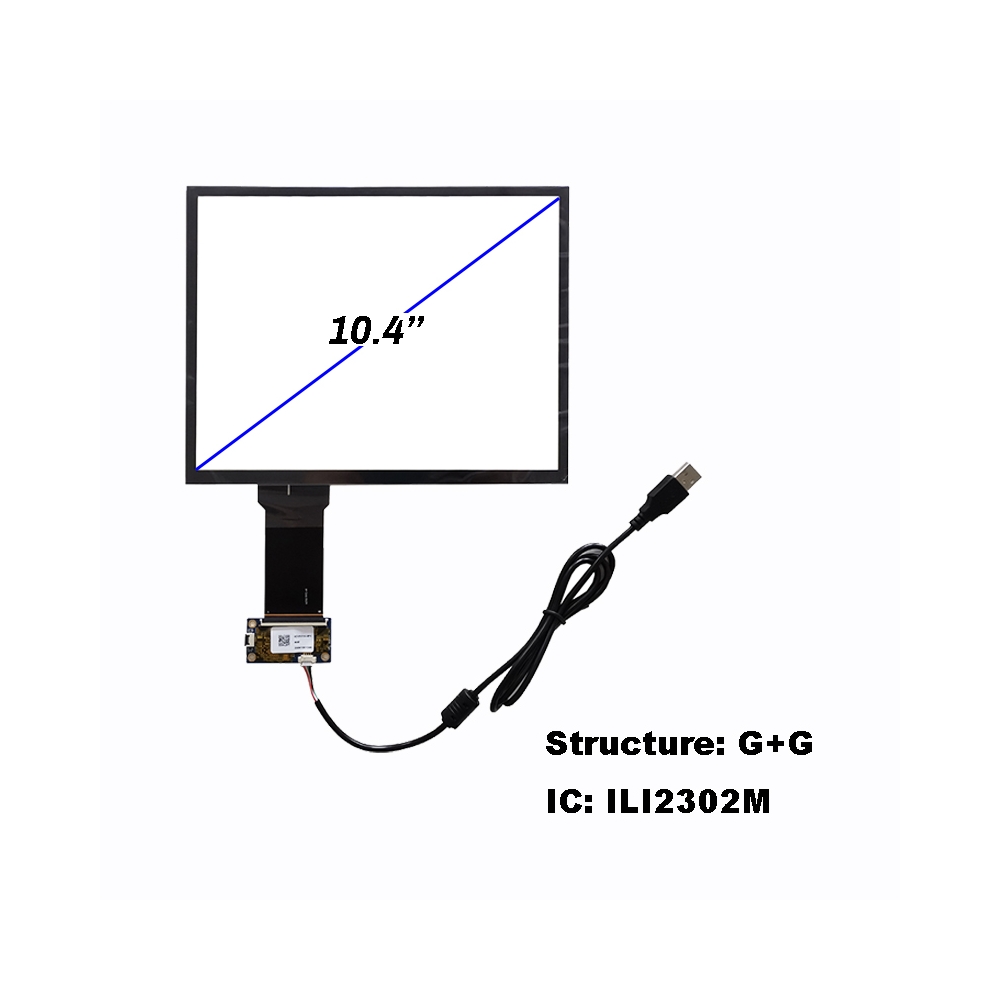

HCT857GG104 is a standard 10.4 inch capacitive touch screen constructed from ITO on 1.10mm glass substrate, providing excellent optical properties. This touch sensor is typically optically bonded to a 1.80mm glass cover with surface hardness 6H with light transmission of over 85%. The 10.4" PCAP touch screen adopts ILITEK ILI2511 touch IC and supports 10 points touch. The capacitive touch screen can support both IIC and USB interfaces. The capacitive touch screen is compatible with a 10.4 inch LCD screen with 1024x768 pixels.

General Specification

Item	Specification
Touch Screen Size	10.4"
Touch controller	ILITEK ILI2511
Touch Interface	I2C, USB
Structure	Glass+Glass
Glass thickness	1.80 mm
Sensor thickness	1.10 mm

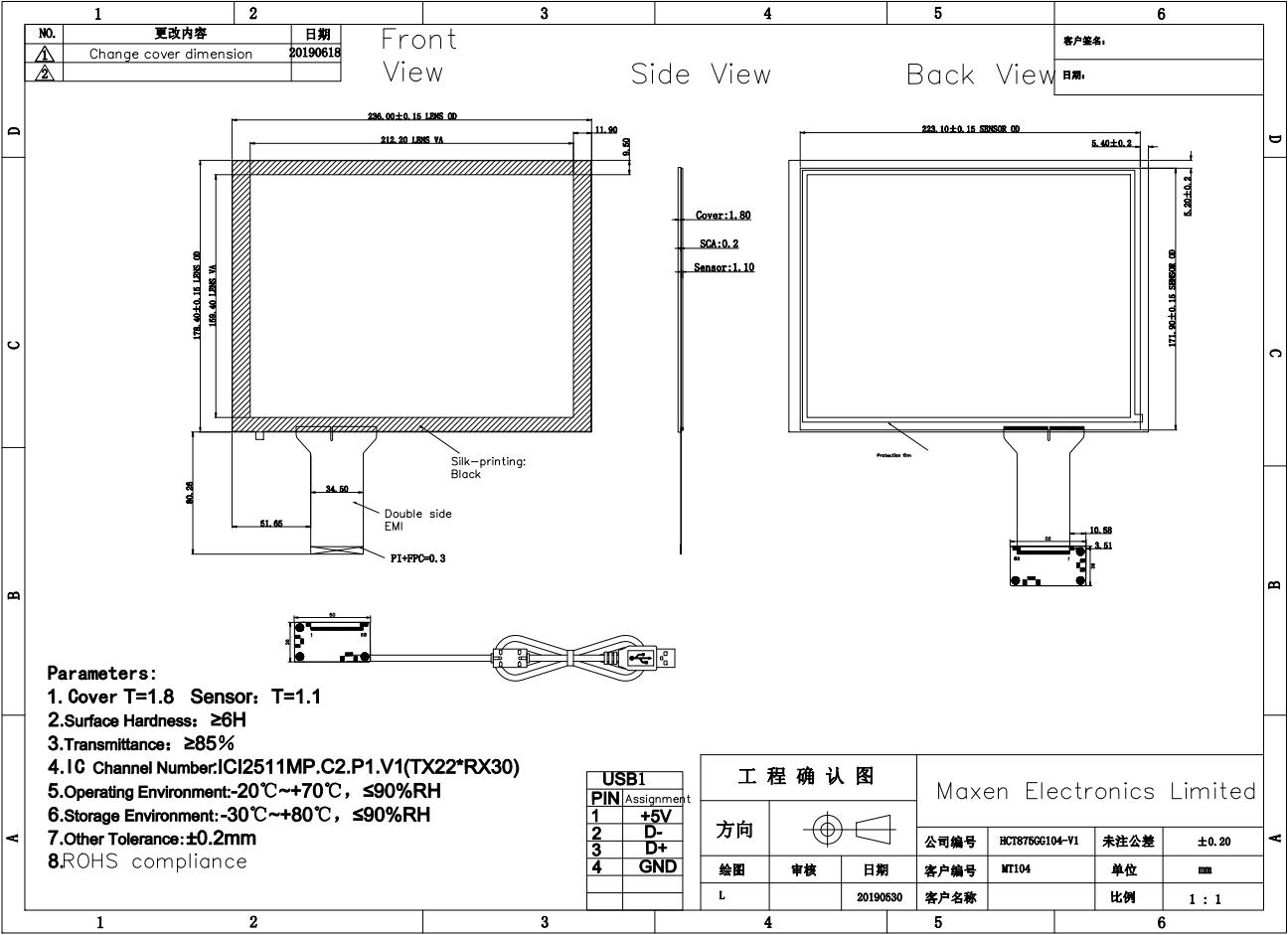

Outline Dimension	236.00x178.40x3.10 mm
Valid Area	212.20x159.40 mm
Working Voltage	5V
Custom Touch	Available
Working Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
