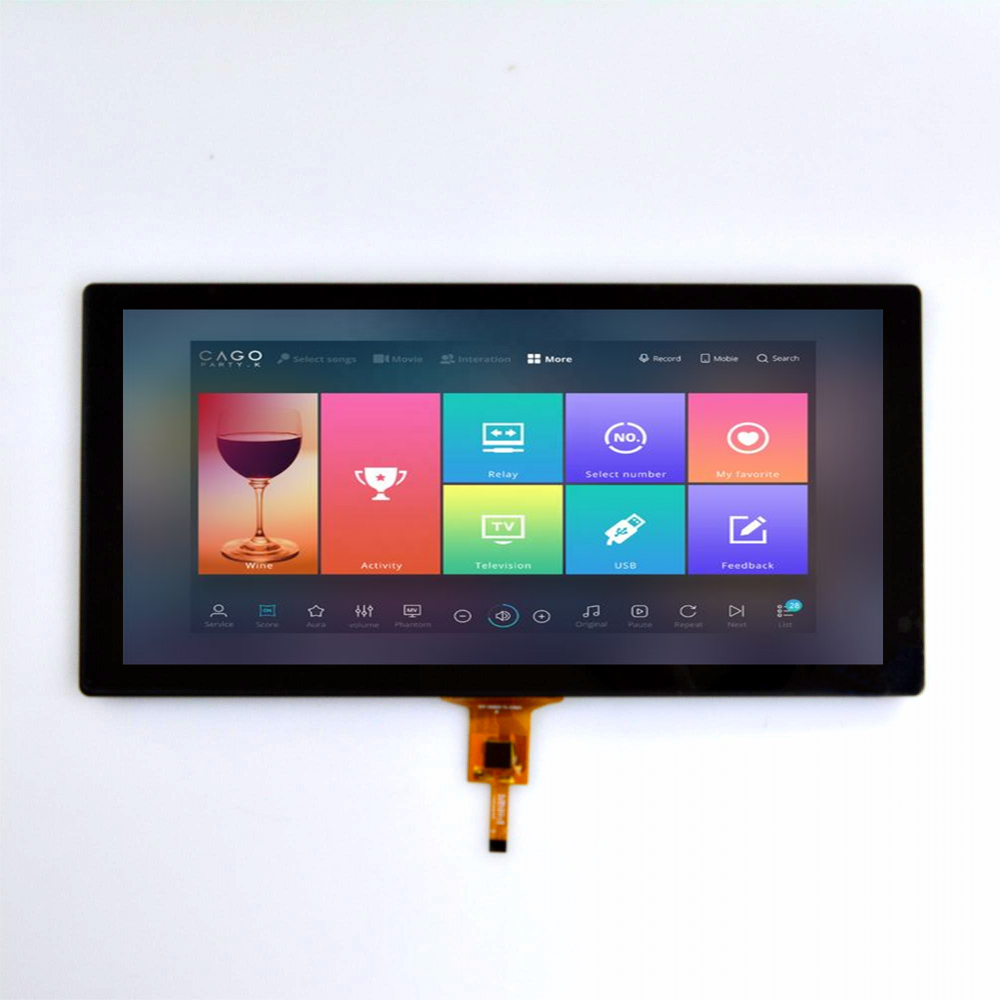

Optical Bonding 10.36 inch Bar Type TFT LCD Touch Display

Optical Bonding 10.36 inch 720x1600 pixels Bar Type TFT LCD Touch Display

► Module NO. MX-1036FM34-IL01-F102

► Size: 10.36"

► Resolution: 720x1600 Pixels

► TFT Type: IPS

► Interface Type: MIPI/36PIN

► Touch controller: GT9271

► Touch Interface: IIC

► Outline Dimension: 259.17x127.17x6.00 mm

► Active Area: 240.00x108.00 mm

► Brightness: 700 Nits

► Bonding Method: Optical Bonding (OCA)

Make an inquiry

Description

MAXEN MX-1036FM34-IL01-F102 is Optical Bonding 10.36 inch Bar Type TFT LCD Touch Display. This 10.36 inch Bar Type LCD Display is featured with IPS technology which is having the advantages of wider viewing angle of 80/80/80/80, contrast ratio 800:1 (typical value), high brightness 700 nits (typical value). The 10.36 inch Bar Type LCD Display is built-in with HX8252A driver IC; it supports 4-Lanes MIPI interface (Mobile Industry Processor Interface) DSI (Display Serial Interface). With the optical bonding solution, the touch screen and TFT LCD are closely fitted together to complete a whole, reducing the air gap and providing an excellent visual experience.

Product Structure

LCD Pin Description

PIN No.	SYMBOL	Function
1-4	GND	Ground
5	AVDD	Power supply for Charge pump circuit. (5.5V)
6	AVEE	Power supply for Charge pump circuit. (-5.5V)
7	IOVCC	Power supply (1.8V-3.3V)
8	GND	Ground
9	D0N	DSI Data differential signal input pins. (Data lane 1)
10	D0P	DSI Data differential signal input pins. (Data lane 1)
11	GND	Ground
12	D1N	DSI Data differential signal input pins. (Data lane 2)
13	D1P	DSI Data differential signal input pins. (Data lane 2)
14	GND	Ground
15	CLKN	DSI CLOCK differential signal input pins
16	CLKP	DSI CLOCK differential signal input pins
17	GND	Ground
18	D2N	DSI Data differential signal input pins. (Data lane 3)
19	D2P	DSI Data differential signal input pins. (Data lane 3)
20	GND	Ground
21	D3N	DSI Data differential signal input pins. (Data lane 4)
22	D3P	DSI Data differential signal input pins. (Data lane 4)
23	GND	Ground
24	RESET	Reset Signal pin (“Low” is enable)
25-26	GND	Ground
27	PWM	LCD backlight control PWM output pin. Leave the pin open when not in use.
28-29	GND	Ground
30-31	LEDK	Backlight LED Cathode
32-33	LEDA	Backlight LED Anode
34	GND	Ground

Absolute Maximum Ratings

Item	Symbol	Rating			Unit
Item	Symbol	MIN.	TYP.	MAX.	Unit
Supply Voltage range	VDD	-0.3	-	VDD+03	V
Power supply for gate drive	VGH		18.0		V
Power supply for gate drive	VGL		-10.0		V
TFT Common Voltage	VcomH	-	0.7	-	V
TFT Common Voltage	VcomL	-	0.4	-	V
Operating Temperature range	T_OP	-20	-	70	℃
Storage Temperature range	T_ST	-30	-	80	℃

Electrical Characteristics

Item	Symbol	Min.	Type.	Max.	Unit
Logic Supply Voltage	IOVCC	1.7	1.8	3.6	V

Backlight Characteristics

White LED x24n Parallel/Series (Ta = 25°C)

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	VF	IF=180mA	22.4	-	26.4	V
Uniformity	△Bp	-	80	-	-	%
Luminance for LCD	Lv	IF=180mA	650	700	720	cd/m²
