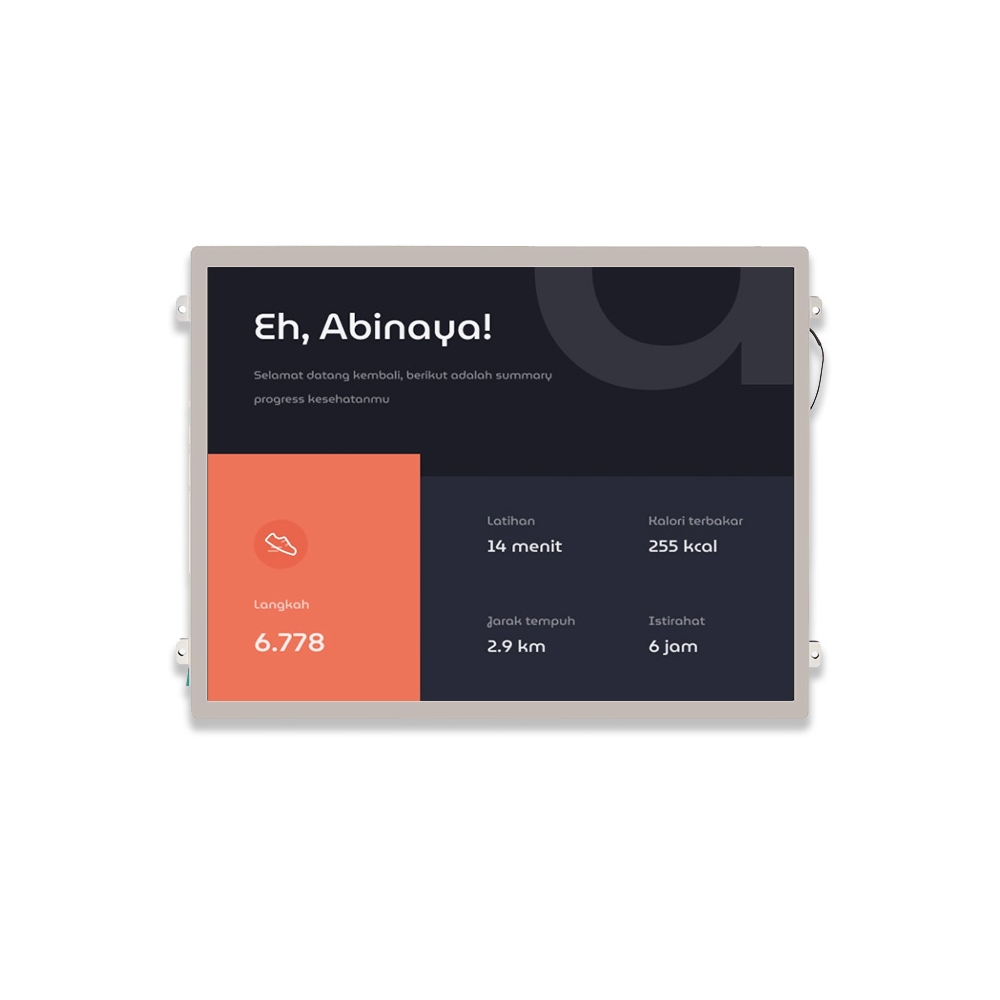

1000 Nits 10.4 inch LCD Display

10.4 inch LCD Display with IPS full viewing angle, 1024x768 pixels, sunlight readable 1000 nits display.
► Model NO: HCT-H104L30-32H02I
► Size: 10.4"
► Resolution: 1024*768 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: LVDS 30 PIN
► Module Size: 225.80x174.30x6.70 mm
► Active Area: 211.20x158.48 mm
► Display Color: 16.7M
► Touch Screen: Without (Optional)

Make an inquiry

Description

MAXEN HCT-H104L30-32H02I is a 10.4 inch full TFT LCD display with XGA resolution (1024 horizontal by 768 vertical pixels array). This module is composed of a TFT-LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This model supports LVDS interface; the supply voltage (VCC) of driving LCD panel is from is 3.0V to 3.6V.

HCT-H104L30-32H02I is an IPS type LCD Display. With brightness 1000 cd/m2 (typical value). It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This 1000 nits IPS 10.4 inch LCD Display is recommended for outdoor activities such as POS machine, agricultural applications, industrial manufacturing equipment and so on.

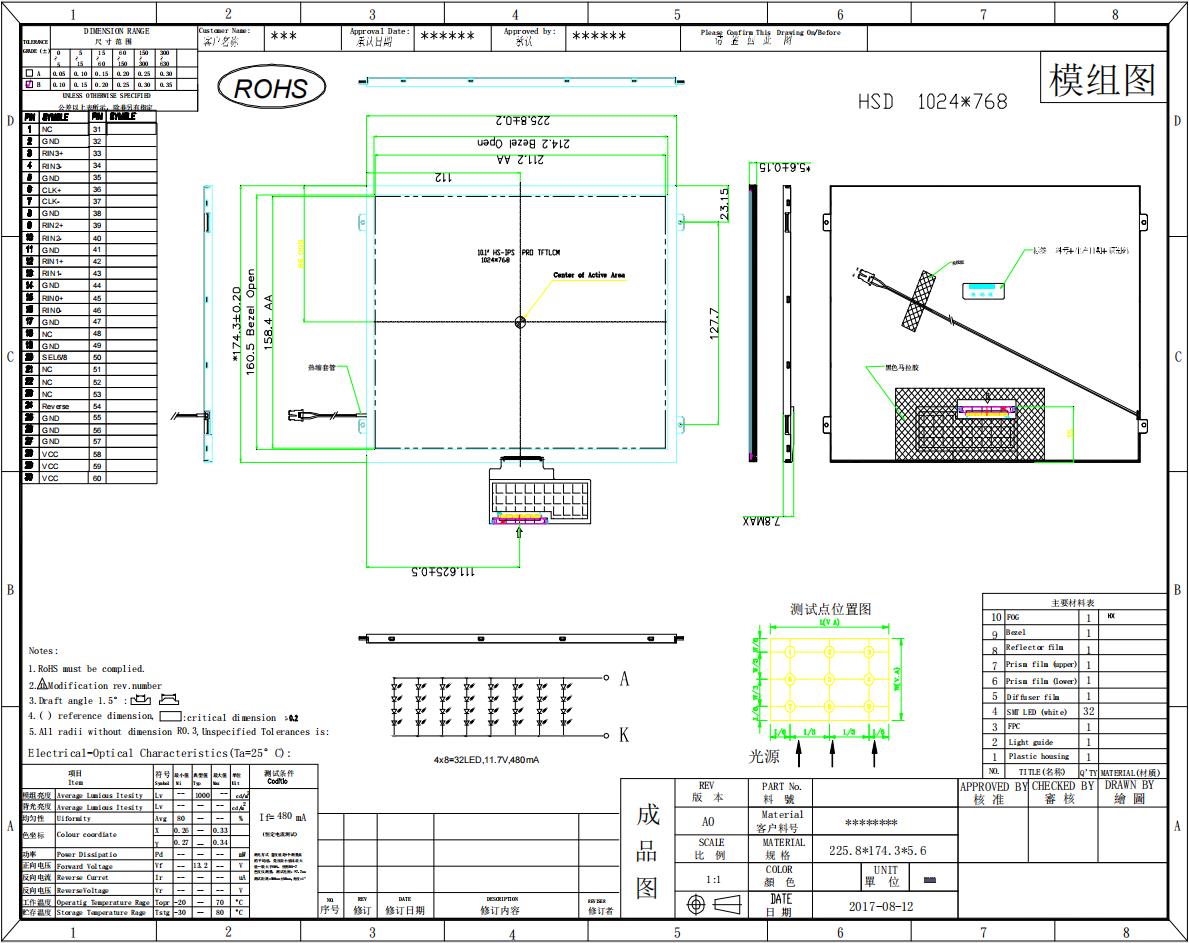

Product Structure

LCD PIN Function

PIN No.	Symbol	Function
1	NC	No connection
2	GND	Ground
3	RIN3+	LVDS Signal(+)-channel 3
4	RIN3-	LVDS Signal(-)-channel 3
5	GND	Ground
6	RXCLK+	LVDS Clock Signal(+)
7	RXCLK-	LVDS Clock Signal(-)
8	GND	Ground
9	RIN2+	LVDS Signal(+)-channel 2
10	RIN2-	LVDS Signal(-)-channel 2
11	GND	Ground
12	RIN1+	LVDS Signal(+)-channel 1
13	RIN1-	LVDS Signal(-)-channel 1
14	GND	Ground
15	RIN0+	LVDS Signal(+)-channel 0
16	RIN0-	LVDS Signal(-)-channel 0
17	GND	Ground
18	NC	No connection
19	GND	Ground
20	SEL6/8	SELB=”0” 8Bit SELB=”1” 6Bit
21	NC	No connection
22	NC	No connection
23	NC	No connection
24	REVERSE	Reverse Panel function
25	GND	Ground
26	GND	Ground
27	GND	Ground
28	VCC	Power Voltage for digital circuit 3.3V
29	VCC	Power Voltage for digital circuit 3.3V
30	VCC	Power Voltage for digital circuit 3.3V

ABSOLUTE MAXIMUM RATINGS

Item	Symbol	Min.	Max.	Unit
Digital Supply Voltage	VDD	-0.3	5	V
Backlight Power	V	-0.3	28	V

ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Min.	Typ.	Max.	Unit
Digital Power Supply Voltage	VDD	2.8	3.3	3.6	V
Current of power	I_DD	-	0.3	-	A
VDD	P_DD		1		W
Inrush current	I_RUSH			2	A
Backlight Power	V	11	13.2	14.4	V

Switching Characteristics for LVDS Receiver

Symbol	Item	Min.	Typ.	Max.	Unit	Remark
VTH	Differential Input High Threshold	-	-	100	mV	VCM=1.2V
VTL	Differential Input Low Threshold	100	-	0.3	mV	A
VID	Input Differential Voltage	100	400	600	mV	W
VICM	Differential Input Common Mode Voltage	1.1		1.45	V	A

BACKLIGHT CHARACTERISTICS

Item	Symbol	Min.	Typ.	Max.	Unit	Remark
LED current	ILED		480		mA	Total LED
Forward voltage	VF	11	11.7	12	V	IF=480mA
Reverse current	IR			50	μA	VR=5V, 1LED
Power dissipation	Pd	6000			mW	Total LED
Peak forward current	IFP	150			mA	1LED
Reverse Voltage	VR	5			V	1LED
