Even Black OCA Bonding 7 inch LCD Touch Display

Portrait 7 inch IPS Display 800x1280 MIPI LCD OCA Bonding I2C PCAP Touch Screen

► Module NO. MX-I70FM31-ILX40-F1671

► Size: 7"

► Resolution: 800x1280 Pixels

► TFT Type: IPS

► Interface Type: MIPI/31PIN

► Touch controller: GT911

► Touch Interface: IIC

► Outline Dimension: 118.00x181.50x5.71 mm

► Active Area: 94.20x150.72 mm

► Brightness: 250 Nits

► Bonding Method: Optical Bonding (Even Black OCA)

Make an inquiry

Datasheet Download

Description

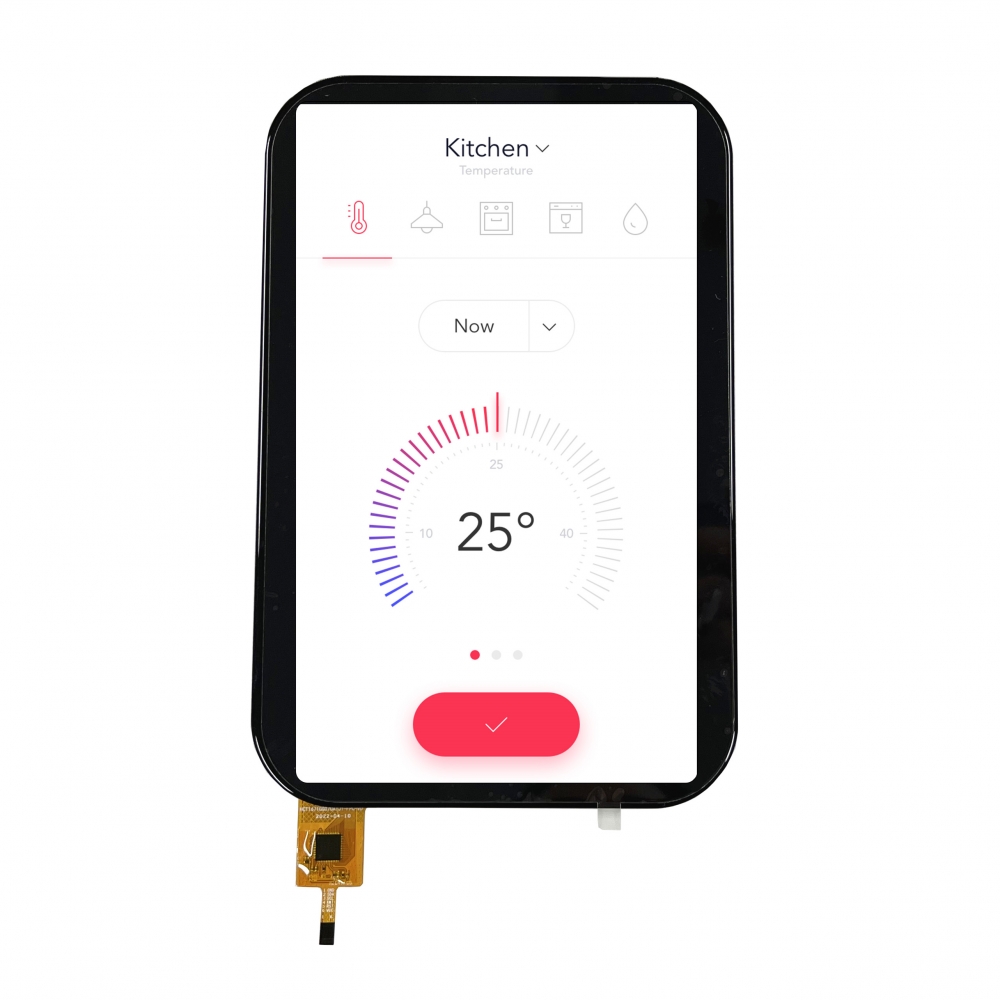

MAXEN MX-I70FM31-ILX40-F1671 is a 7 inch 800x1280 resolution MIPI interface TFT LCD with a capacitive touch panel. The fine quality of a display lies not only in LCD performance but also in cover lens appearance. To reach harmonious unity when LCD is in the off state, MAXEN carries out an exceptional material and assembly technique that turns the cover lens into All-in-Black. The art of uniformity blends into your device and shows the perfectly elegant taste of your application. This LCD touch screen supports a media panel, MP4, GPS devices, vehicle applications, and so on. The optical bonding technique also allows higher display transparency which contributes to high image and video performance.

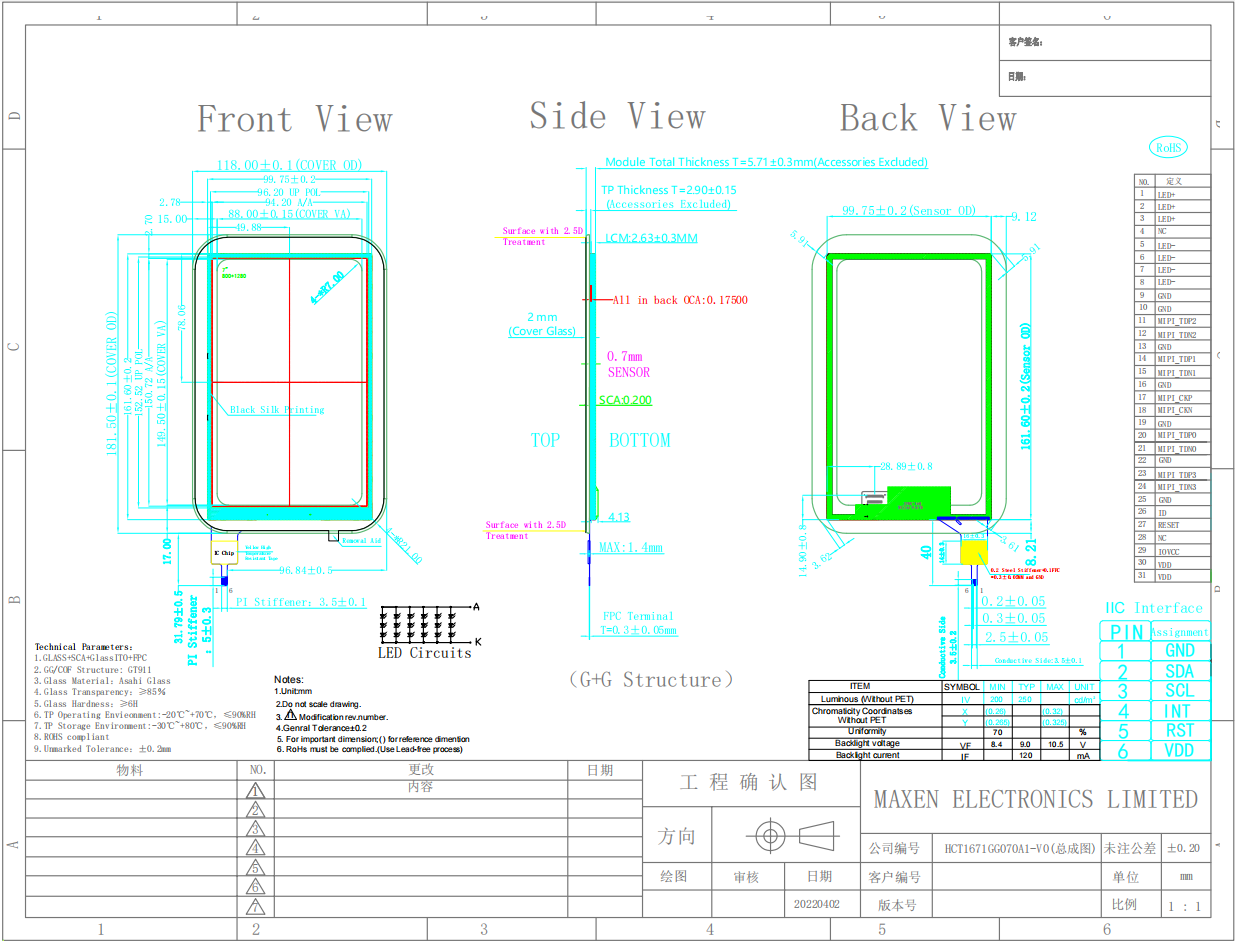

Product Structure

LCD Interface Pin Connection

PIN NO	SYMBOL	DESCRIPTION
1	LEDA	Power for LED backlight (Anode)
2	LEDA	Power for LED backlight (Anode)
3	LEDA	Power for LED backlight (Anode)
4	NC	No connect
5	LEDK	Power for LED backlight (Cathode)
6	LEDK	Power for LED backlight (Cathode)
7	LEDK	Power for LED backlight (Cathode)
8	LEDK	Power for LED backlight (Cathode)
9	GND	Ground
10	GND	Ground
11	MIPI_D2+	HSSI_D2_Pare differential small amplitude signals
12	MIPI_D2-	HSSI_D2_Nare differential small amplitude signals
13	GND	Ground
14	MIPI_D1+	HSSI_D1_Pare differential small amplitude signals
15	MIPI_D1-	HSSI_D1_Nare differential small amplitude signals
16	GND	Ground
17	MIPI_CLK+	HSSI_CLK_Pare differential small amplitude signals
18	MIPI_CLK-	HSSI_CLK_Nare differential small amplitude signals
19	GND	Ground
20	MIPI_D0+	HSSI_D0_Pare differential small amplitude signals
21	MIPI_D0-	HSSI_D0_Nare differential small amplitude signals
22	GND	Ground
23	MIPI_D3+	HSSI_D3_Pare differential small amplitude signals
24	MIPI_D3-	HSSI_D3_Nare differential small amplitude signals
25	GND	Ground
26	NC
27	RESET	Reset signal
28	NC
29	VDD1V8	I/O power supply
30	VDD3V3	Power supply 3.0-3.6V
31	VDD3V3	Power supply 3.0-3.6V

Absolute Maximum Ratings

(GND=VSSA=VSSD=0V)

Item	Symbol	Min.	Typ.	Max.	Unit
Analog Supply Voltage	VCI	3.0	3.3	3.6	V
I/O Operating Voltage	VDDI	1.7	1.8	1.9	V
TFT Gate High Voltage	VGH	14	15	18	V
TFT Gate Low Voltage	VGL	-12	-10	-8	V
TFT Common Electrode Voltage	VCOMDC	-2.5	-	0	V
TFT Feed-Through Voltage	△VP	0.34	1.34	2.34	V
Input Signal Voltage	VIH	0.7*VDDI	-	VDDI	VIH
Input Signal Voltage	VIL	GND	-	0.3*VDDI	VIL
Output Signal Voltage	VOH	0.8*VDDI	-	VDDI	VOH
Output Signal Voltage	VOL	GND	-	0.2*VDDI	VOL

Environment Absolute Ratings

Item	Symbol	Min.	Max.	Unit	Note
Operating Temperature	Topa	-10	60	℃
Storage Temperature	Tstg	-20	70	℃

Back-light Unit

PARAMETER	Sym.	Min.	Typ.	Max.	Unit	Test Condition	Note
LED Current	IF	–	120	–	mA	–	–
LED Voltage	VF	9	9.6	10.5	V	–	–
Life Time		–	20000	–	Hr.	I≦120mA	–
Color	White

Note:

(1) Permanent damage may occur to the LCD module if beyond this specification. Functional operation should be restricted to the conditions described under normal operating conditions.

(2) (2)Ta=25±2℃ .

(3)Test condition: LED Current 120mA.
