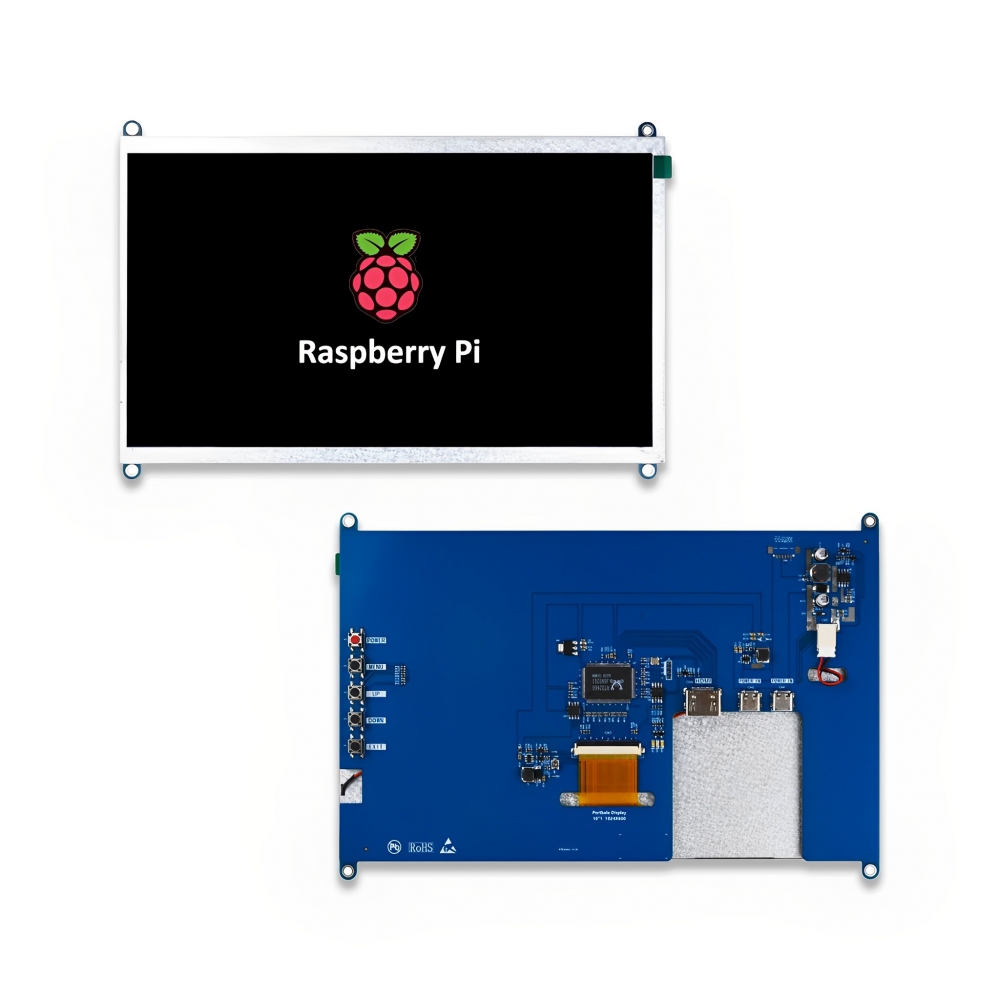

MX-RTD2660-V1.0SB is a 10.1 inch TFT display designed exclusively for Raspberry Pi. This 10.1 inch Raspberry Pi display module is not just an ordinary display module; it boasts a high-definition resolution of 1024x600 pixels, ensuring superior image quality and detail. Furthermore, this TFT display has the added advantage of HDMI input support, facilitating seamless integration with a multitude of devices. An exceptional feature of this display is its high brightness level, which enhances visibility and clarity under various lighting conditions. It is particularly suited for use with single-board computers, specifically Raspberry Pi, elevating their visual performance to new heights. For any additional information about the RTD2660-V1.0SB 10.1 inch TFT Display for Raspberry Pi, don‘t hesitate to reach out to us!
|
ITEM |
STANDARD VALUES |
|
LCD Size |
10.1” |
|
Resolution |
1024x600 |
|
TFT Type |
IPS |
|
Interface Type |
RGB |
|
LCD Pin Number |
50pin |
|
Outline Dimension |
235.00*143.00*5.20 (Typ, mm) |
|
Active Area |
222.72*125.28 (Typ, mm) |
|
Power to Panel |
3.3V |
|
Management |
Standby Power Consumption < 0.2W(Board Only) |
|
Brightness |
350 Nits (optional) |
|
Bonding Method |
OCA Bonding/Adhesive Bonding |

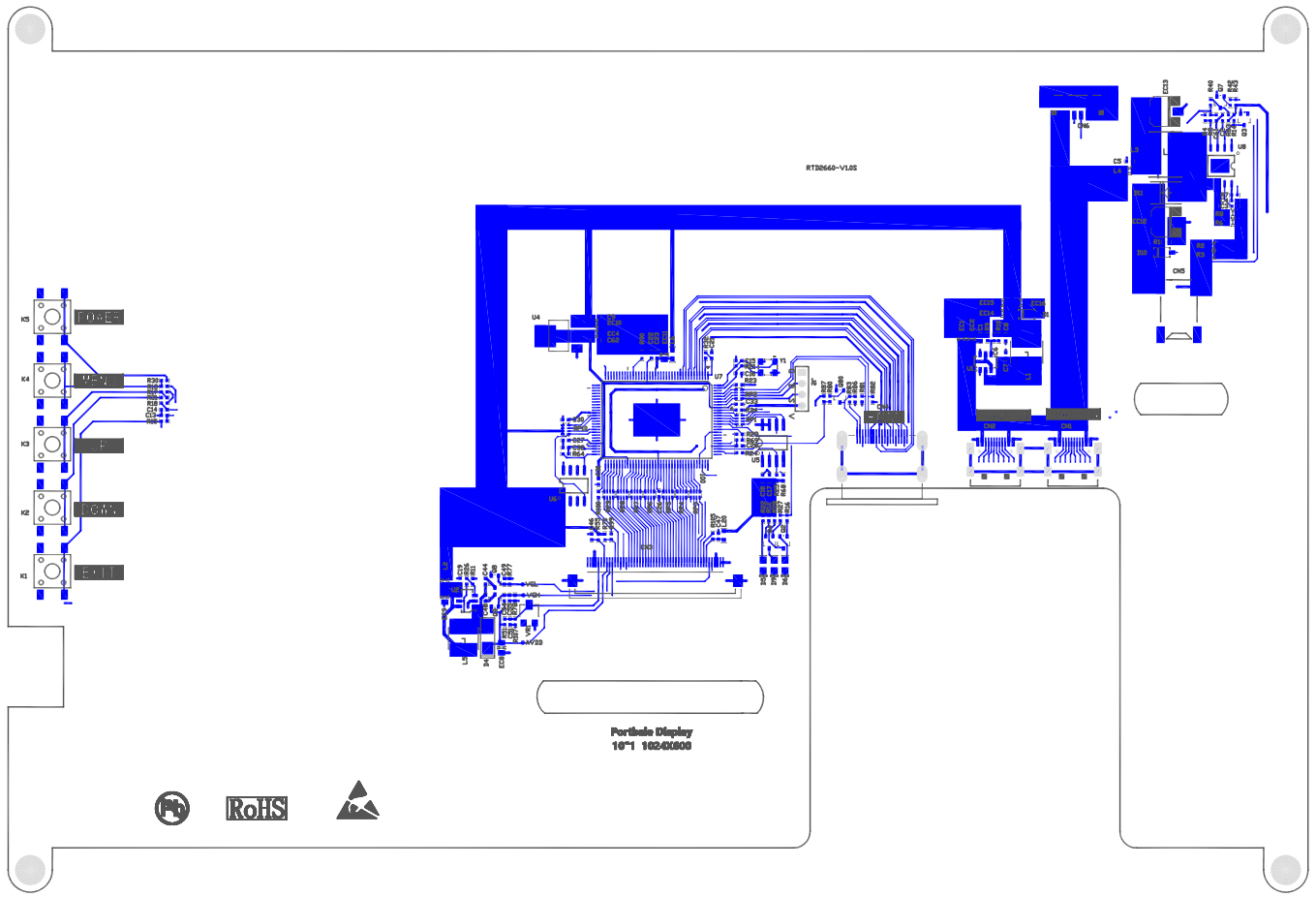

Product Structure
Product Application
