Product Launch Alert - Meet Our New 3.0" TFT LCD Panel
Time:2023-07-22
Views:759

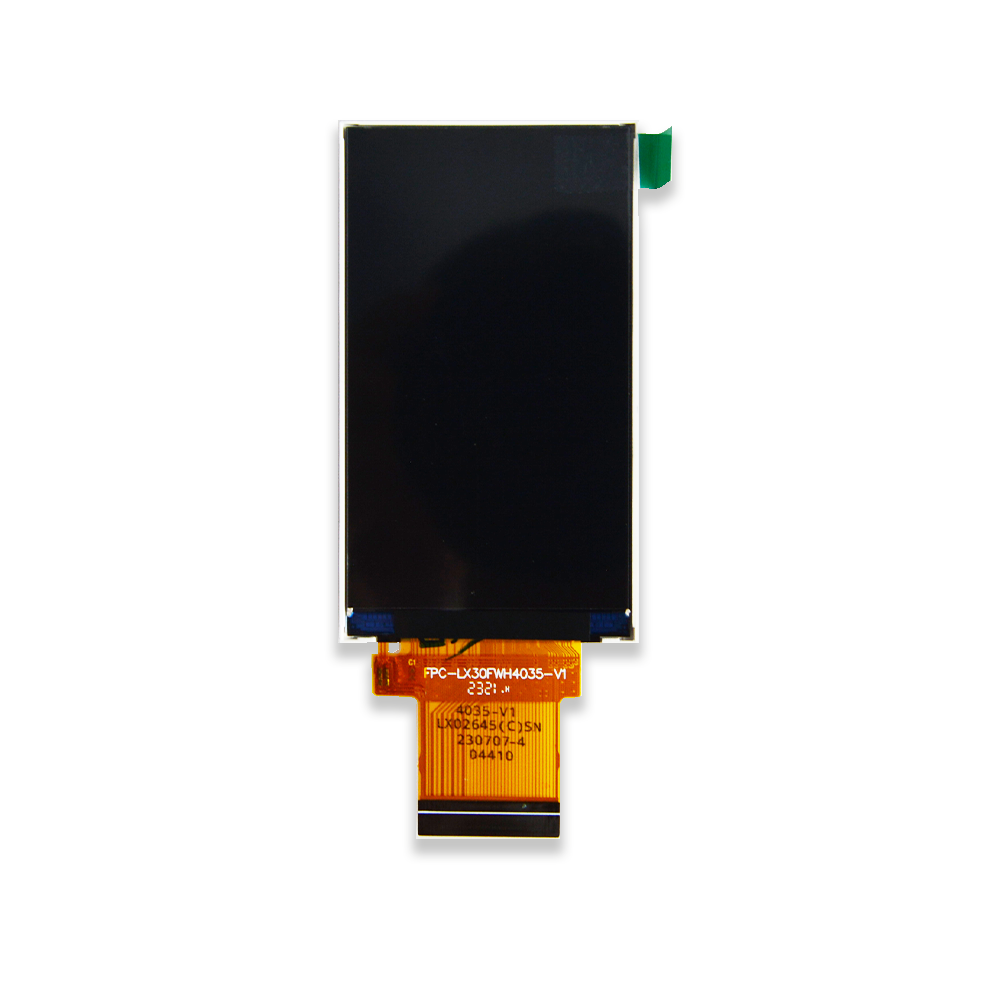

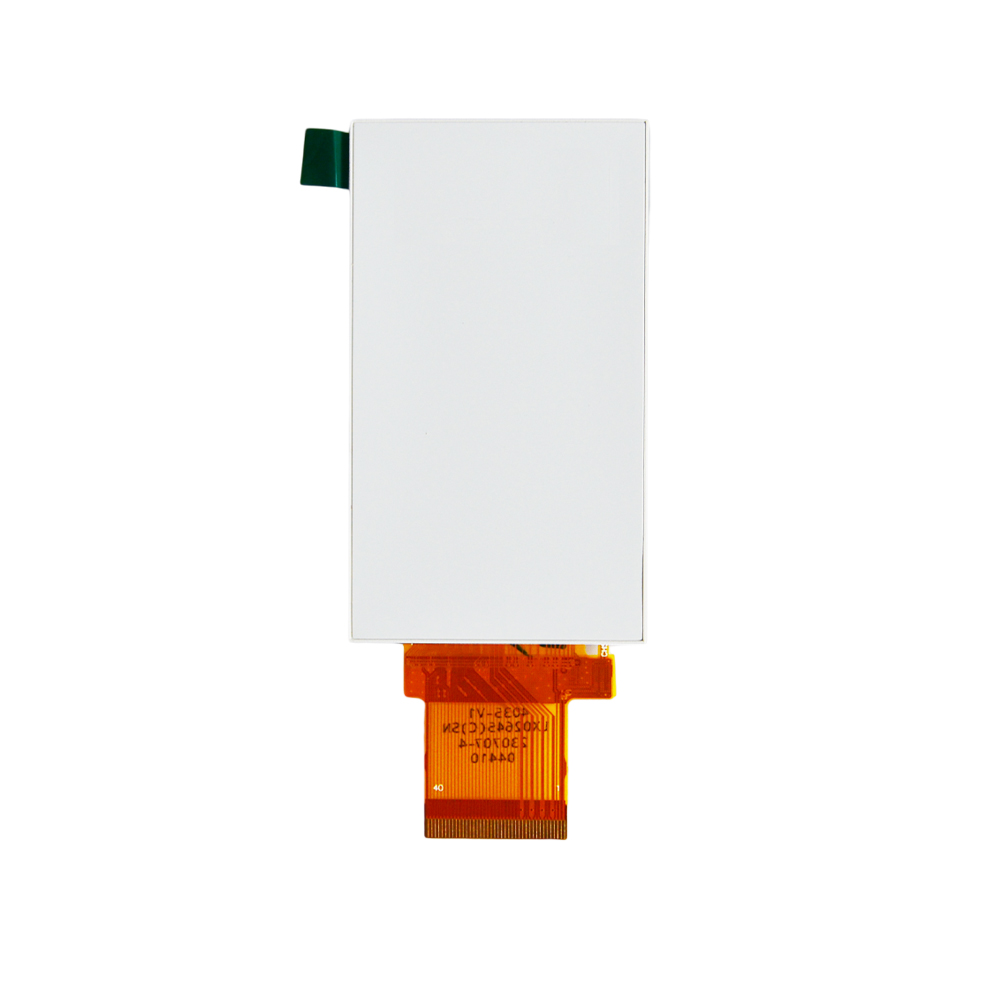

MX-030HM40-IL02: 3.0 inch RGB/MIPI TFT LCD Display
 |
 |
MX-030HM40-IL02, a 3-inch IPS display screen with a resolution of 360*640 pixels, is well-suited for a variety of industries. It utilizes an ST7701S driver IC to optimize performance. Its compatibility with both RGB and MIPI interfaces enhances its versatility, allowing for broad application in sectors such as consumer electronics, automotive, telecommunications, and medical devices, among others. The display can be incorporated into smartphones, portable devices, digital cameras, vehicle systems, and healthcare equipment to provide clear, high-quality visuals.
► Link to 3.0 inch TFT LCD Display: MX-030HM40-IL02
|
ITEM |
STANDARD VALUES |
|
Model NO. |
MX-030HM40-IL02 |
|
LCD Size |
3.0" |
|
Resolution |
360*640 |
|
TFT Type |
IPS |
|
Interface Type |
RGB/MIPI |
|
Pin Number |
40pin |
|
Outline Dimension |
42.70*74.70*2.20 mm |
|
Active Area |
36.72*65.28 mm |
|
Luminance |
500 Nits |
|
Touch Screen |
Without or optional |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-30℃~80℃ |
► Link to 3.0 inch TFT LCD Display: MX-030HM40-IL02
