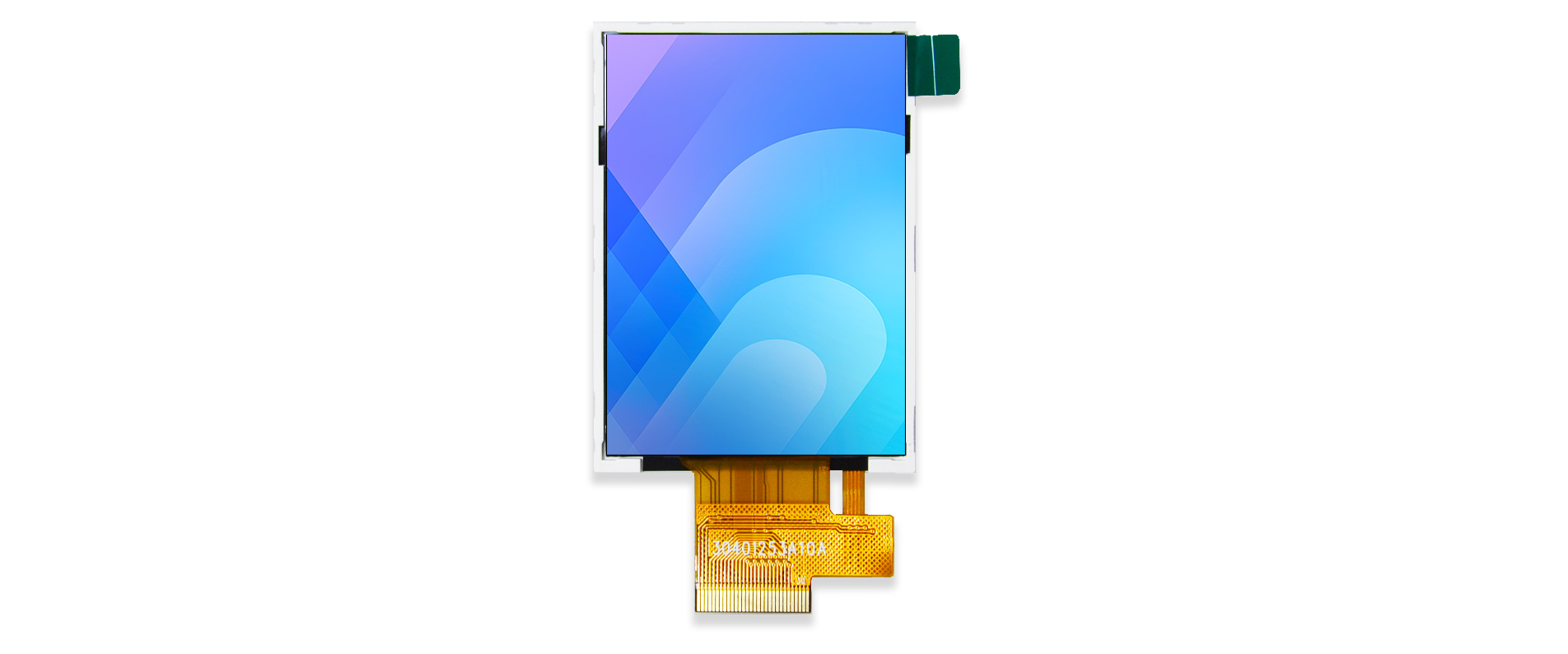

MX-T240MHQS-28: 2.4 inch MCU TFT LCD Module
MX-T240MHQS-28 is a 2 4-inch TFT LCD module with a 240x320 pixel resolution, delivering vibrant and rich color displays. Equipped with an MCU interface for easy integration, it incorporates IPS technology for superior viewing angles and uses the ST7789T3 IC for efficient operation. Its robust design allows for a wide operating temperature range from -20 to 70 ℃, making it an ideal display solution for various applications.
|
ITEM |
STANDARD VALUES |
|
Model NO. |
MX-T240MHQS-28 |
|
LCD Size |
2.4" |
|
Resolution |
240x320 |
|
TFT Type |
IPS |
|
Interface Type |
MCU |
|
Pin Number |
30pin |
|
Outline Dimension |
42.72 (H) x 59.46 (V) x 2.02 (D) mm |
|
Active Area |
36.72 (H) x 48.96 (V) mm |
|
Luminance |
350 Nits |
|
Touch Screen |
Without or optional |
|
Operating Temperature |
-20°C~70°C |
|
Storage Temperature |
-30°C~80°C |

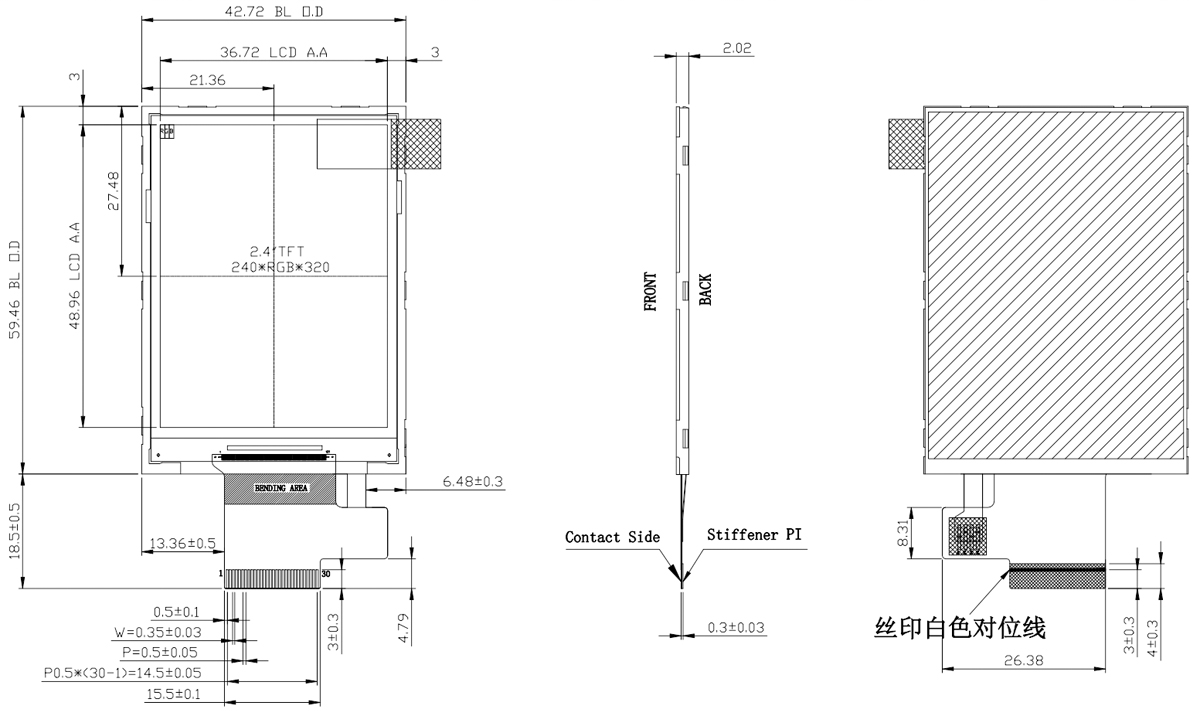

Product Structure
