New Product - High Brightness LCD Display Series
Time:2023-05-31
Views:1020

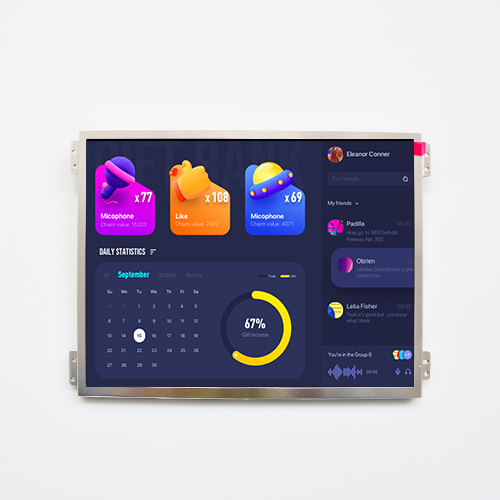

MX-C104HL30-ID071K: High Brightness 10.4 inch 1024x768 LCD Display
MX-C104HL30-ID071K is a high-brightness 10.4-inch IPS LCD display with a resolution of 1024x768, providing clear and vivid images and videos. The display has a brightness of up to 1000 nits, ensuring clear visibility even in bright environments. Additionally, MX-C104HL30-ID071K has a wide temperature range, making it suitable for various applications even in extreme temperatures. The display uses an LVDS interface, providing high-speed data transmission and stability. Whether indoors or outdoors, MX-C104HL30-ID071K is an excellent display that can provide outstanding visual experience for your product.
|
ITEM |
STANDARD VALUES |
|
Model NO. |
MX-C104HL30-ID071K |
|
LCD Size |
10.4" |
|
Resolution |
1024x768 |
|
TFT Type |
IPS |
|
Interface Type |
LVDS |
|
Pin Number |
30pin |
|
Outline Dimension |
210.432 (H) x 157.824 (V) mm |
|
Active Area |
227.00 (H) x 175.80 (V) x 9.20 (D) mm |
|
Luminance |
1000 Nits |
|
Touch Screen |
Without or optional |
|
Operating Temperature |
-30°C~80°C |
|
Storage Temperature |
-30°C~80°C |

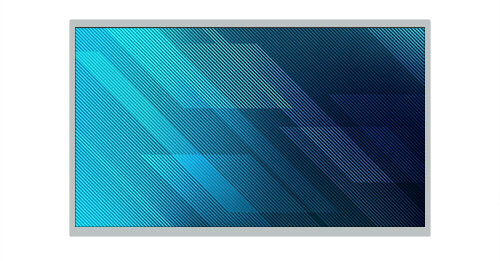

MX-215FL30BFH-N07: High Brightness 21.5 inch 1920x1080 IPS LCD Display
.jpg)
The MX-215FL30BFH-N07 is a high-quality LCD display screen with a1920x1080 pixel resolution, IPS technology, 1000 brightness, and an LVDS interface. With IPS technology, this display screen offers wider viewing angles and more accurate color reproduction, providing users with an exceptional visual experience. The 1920x1080 pixel resolution ensures clear and detailed images and text, making it ideal for reading, watching videos, and browsing the web. The 1000 brightness level ensures that the display screen provides clear and bright images in various lighting conditions. The LVDS interface allows for high-speed data transmission, ensuring smooth and seamless use of the display screen.
Overall, the MX-215FL30BFH-N07 is a high-quality and high-performance display screen suitable for various applications, such as computers, televisions, and monitors. If you‘re looking for a high-quality display screen, the MX-215FL30BFH-N07 is an excellent choice.
► Link to High Brightness 21.5 inch 1920x1080 IPS LCD Display MX-215FL30BFH-N07
|
ITEM |
STANDARD VALUES |
|
Model NO. |
MX-215FL30BFH-N07 |
|
LCD Size |
21.5" |
|
Resolution |
1920x1080 |
|
TFT Type |
IPS |
|
Interface Type |
LVDS |
|
Pin Number |
30pin |
|
Outline Dimension (mm) |
476.64(H) x 268.11(V) |
|
Active Area (mm) |
495.6(H) x 292.2(V) x 10.7(D) typ. |
|
Luminance |
1000 Nits |
|
Touch Screen |
Without or optional |
|
Operating Temperature |
-20°C~85°C |
|
Storage Temperature |
-30°C~85°C |
► Link to High Brightness 21.5 inch 1920x1080 IPS LCD Display MX-215FL30BFH-N07
