The MX-57NL33-TWT03RX is 5.7 inch LCD display with resistive touch panel. This module is bulit withHX8250-A01*2+HX8678A driver IC, with resolution of 320x240 and 18-bit RGB interface.
ITEM
STANDARD VALUES
Module NO.
MX-57NL33-TWT03RX
LCD Size
5.7"
Resolution
320*240
TFT Type
TN
Interface Type
18-BIT RGB
Outline Dimension
144.00*104.60*15.20(TOTAL)mm
Active Area
115.20*86.40mm
Luminance
450 Nits
Touch Screen
With Resistive Touch Panel

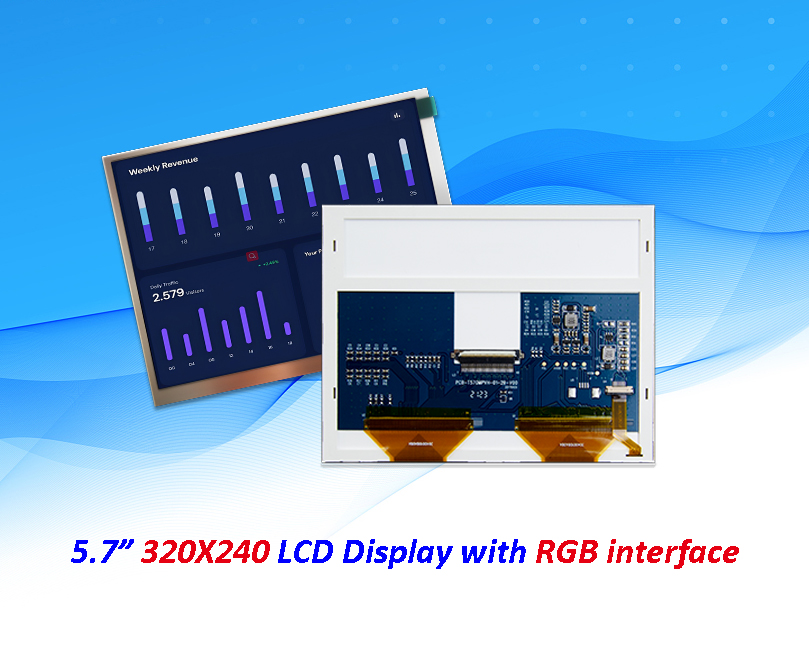

5.7 inch LCD Display With RGB Interface
MX-57NR40-TWT01
The MX-57NR40-TWT01 is 640x480 resolution LCD Display with 18-BIT RGB intrface. Optional with touch screen PCAP or resistive touch screen.
ITEM
STANDARD VALUES
Module NO.
MX-57NR40-TWT01
LCD Size
5.7"
Resolution
320*240
TFT Type
TN
Interface Type
18-BIT RGB
Outline Dimension
127.00*98.43*5.80 mm
Active Area
115.20*86.40 mm
Luminance
700 Nits
Touch Screen
Optional with PCAP/RTP

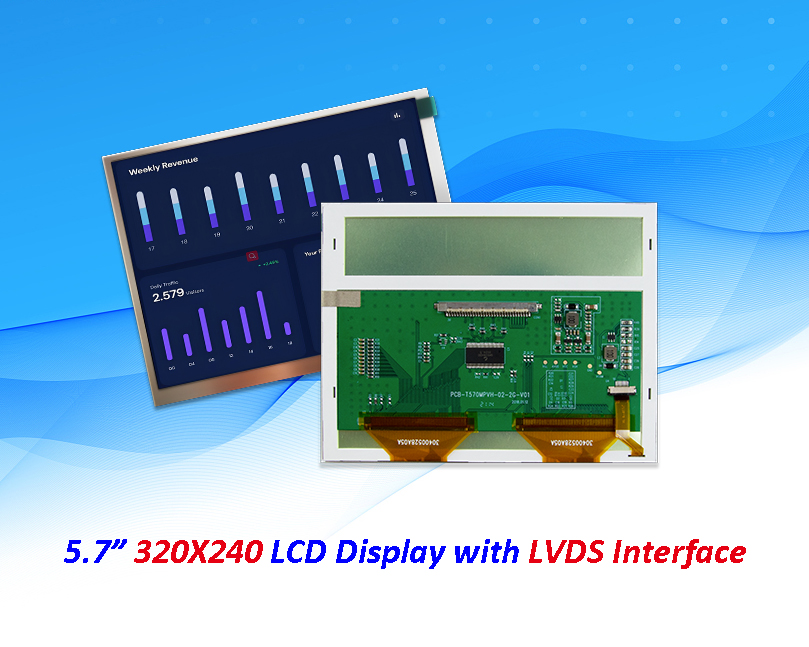

5.7 inch LCD Display With LVDS Interface
MX-57NL30-TWT02
The MX-57NL30-TWT02 is 5.7 inch LCD Display with LVDS interface. This module share the same resolution, brightness, outline dimension and active area with the module MX-57NR40-TWT01. MX-57NL30-TWT02 is built-in driver IC HX8250*2+HX8678.
