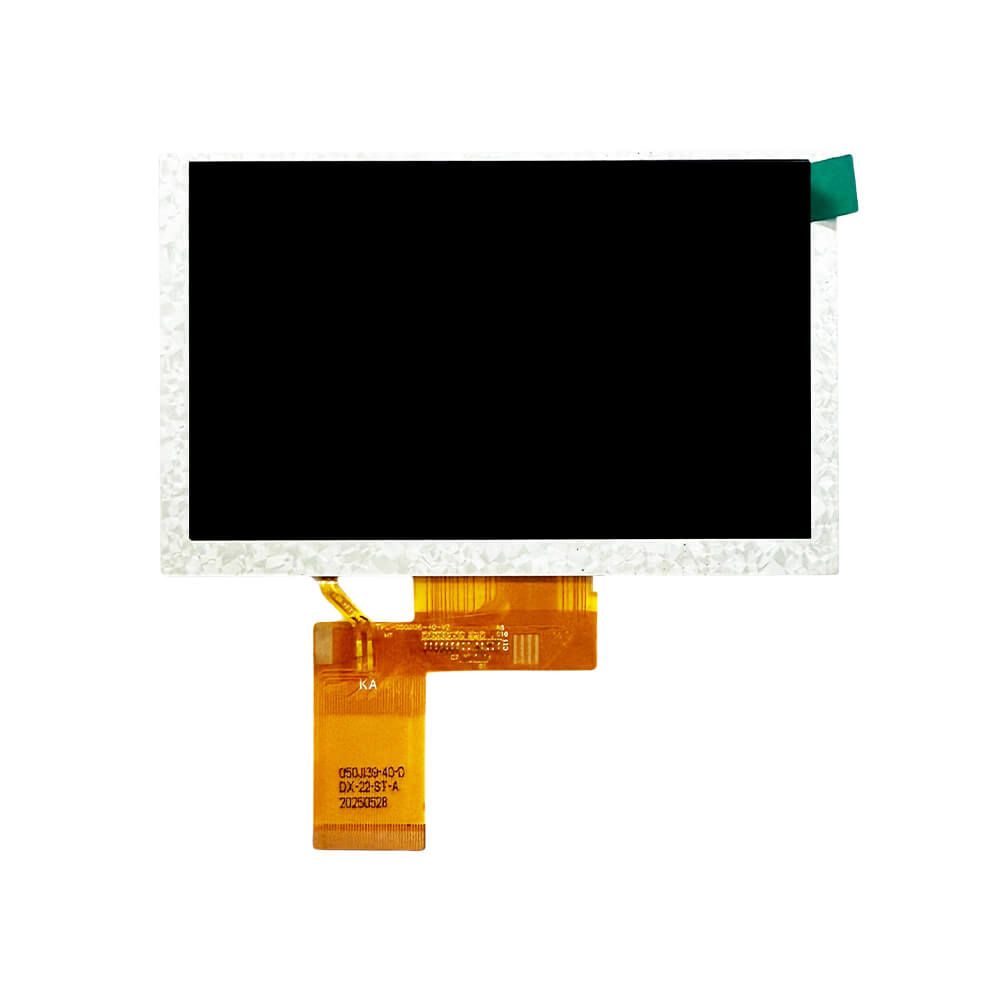

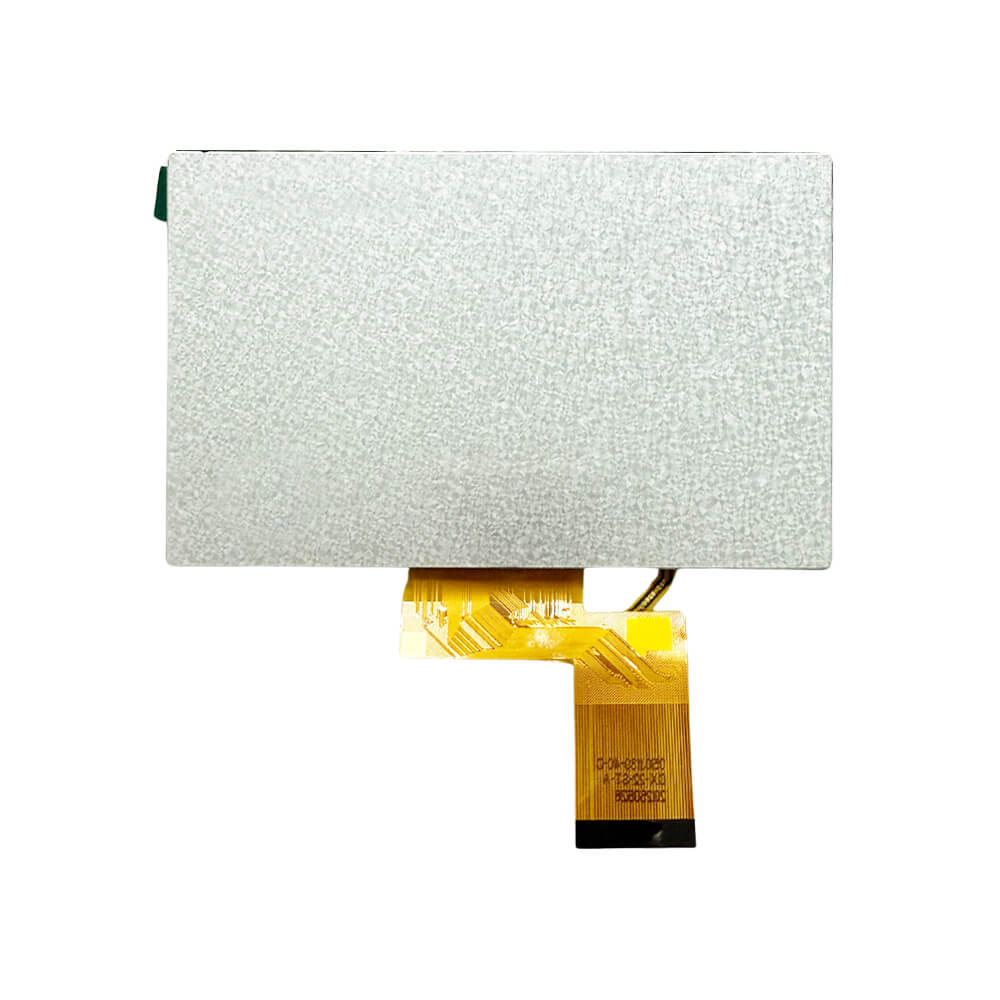

5 inch LCD Display Module

Ideal for industrial control panels, outdoor handheld devices, test instruments, and other embedded products that require clear visibility and reliable performance.

Main Features

  • Part No. MX-050WR40BFH-N61
  • 5.0" TFT Panel
  • 800x480 resolution
  • High brightness 1000 cd/m²
  • 85/85/85/85 full viewing angles (IPS)
  • 40-pin RGB interface
  • Built-in ST72611 driver IC
Get a Quote Download Specs.

MX-050WR40BFH-N61

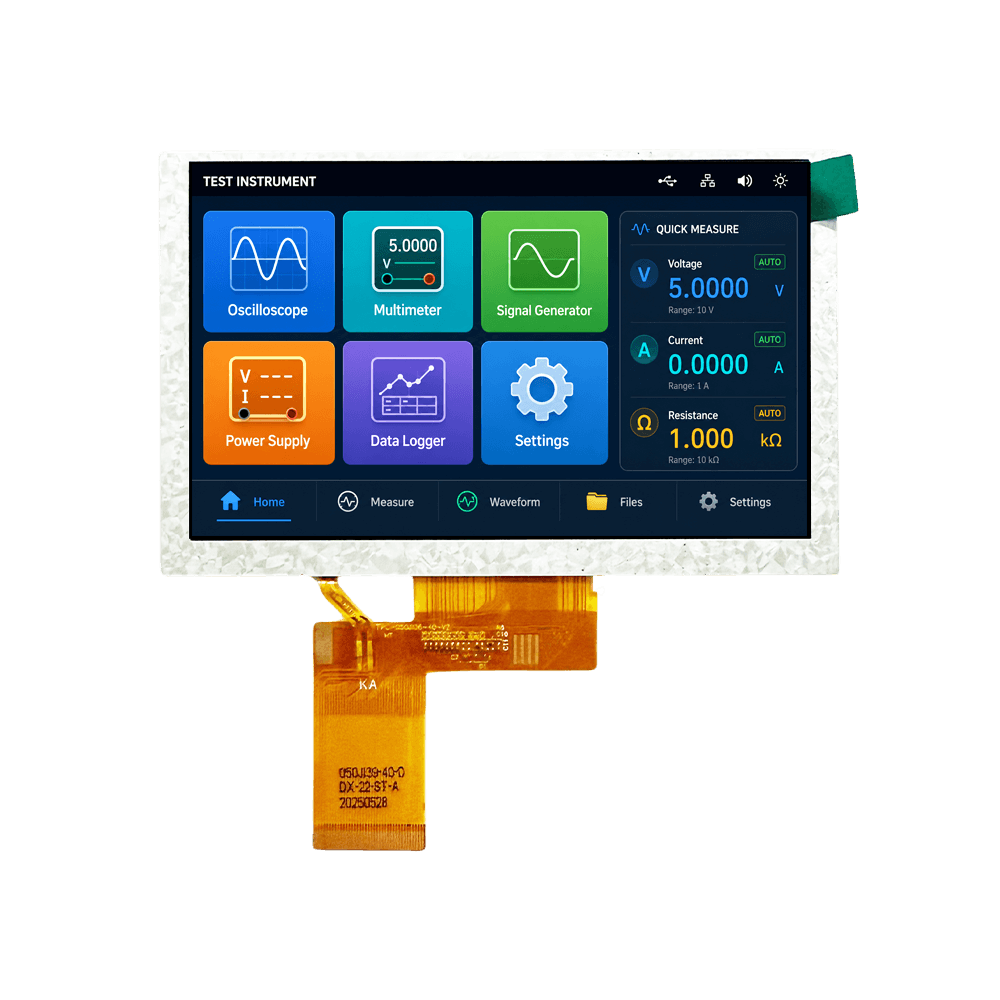

5 inch LCD Display Module MX-050WR40BFH-N61 is one of our key recommended 5 inch products, featuring an 800x480 resolution IPS TFT Panel from an 8.5-generation production line for stable supply and consistent display quality. With 1000 nits high brightness, 85/85/85/85 wide viewing angles, and a -20°C to 70°C operating temperature range, this module is suitable for industrial control panels, outdoor handheld devices, test instruments, and other embedded products that require clear visibility and reliable performance. The display uses a 40-pin RGB interface and works with ST72611 driver IC, while its 120.70x75.80x2.90 mm slim module size and 108.00x64.80 mm active area make it a practical choice for compact equipment designs that need a high-brightness 5 inch LCD display module.

5 inch 800x480 IPS TFT LCD display module

  • High Brightness

    1000 nits

  • Temperature Range

    Operates from -20°C to 70°C

  • Interface

    40-pin RGB

  • Cost-Effective

    G8.5 process, single ST72611 chip

  • LCD PIN Function (RGB 40PIN)
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • LED Backlight Characteristics
  • Product Drawing

LCD PIN Function (RGB 40-pin)

Pin No. Symbol Function
1  LED_K Backlight cathode
2  LED_A Backlight anode
3  GND Power ground
4  VDD Power Supply for Analog Circuit 3.3V
5~12 R0~R7 Red data bus
13~20 G0~G7 Green data bus
21~28 B0~B7 Blue data bus
29  GND Power ground
30  DCLK TTL clock input pin
31  DISP Standby mode select pin, Normal mode=H
32  HSYNC Horizontal SYNC signal
33  VSYNC Vertical SYNC signal
34  DE Date enable signal
35  NC No connection
36  GND Power ground
37  XR Touch panel control pin
38  YD Touch panel control pin
39  XL Touch panel control pin
40  YU Touch panel control pin

Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit
Power supply VDD -0.3  - 4.0  V
Operating Temperature TOP -20  - 70  ℃
Storage Temperature TST -30  - 80  ℃

Electrical Characteristics

Parameter Symbol Min Typ Max Unit
Power supply VDD 3.1  3.3  3.6  V
Input voltage 'H' VIH 0.7VDVDD - VDVDD V
'L’ VIL VSS - 0.3VDVDD V
Output voltage 'H' VOH 0.8VDVDD - VDVDD V
'L’ VOL VSS - 0.2VDVDD V

LED Backlight Characteristics

Item Symbol Condition Min Typ Max Unit
Supply voltage Vf - 16.8  18  19.8  V
Supply current If - - 80  - mA
Number of LED - 6Sx4P - 24  - Piece
Power consumption - - - 1440  - mW
LED life time - - 20000  - - Hrs

5 inch LCD Display Module Product Drawing
