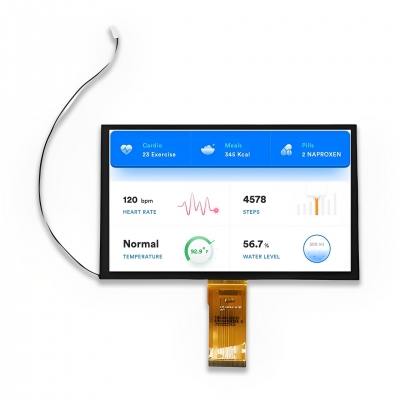

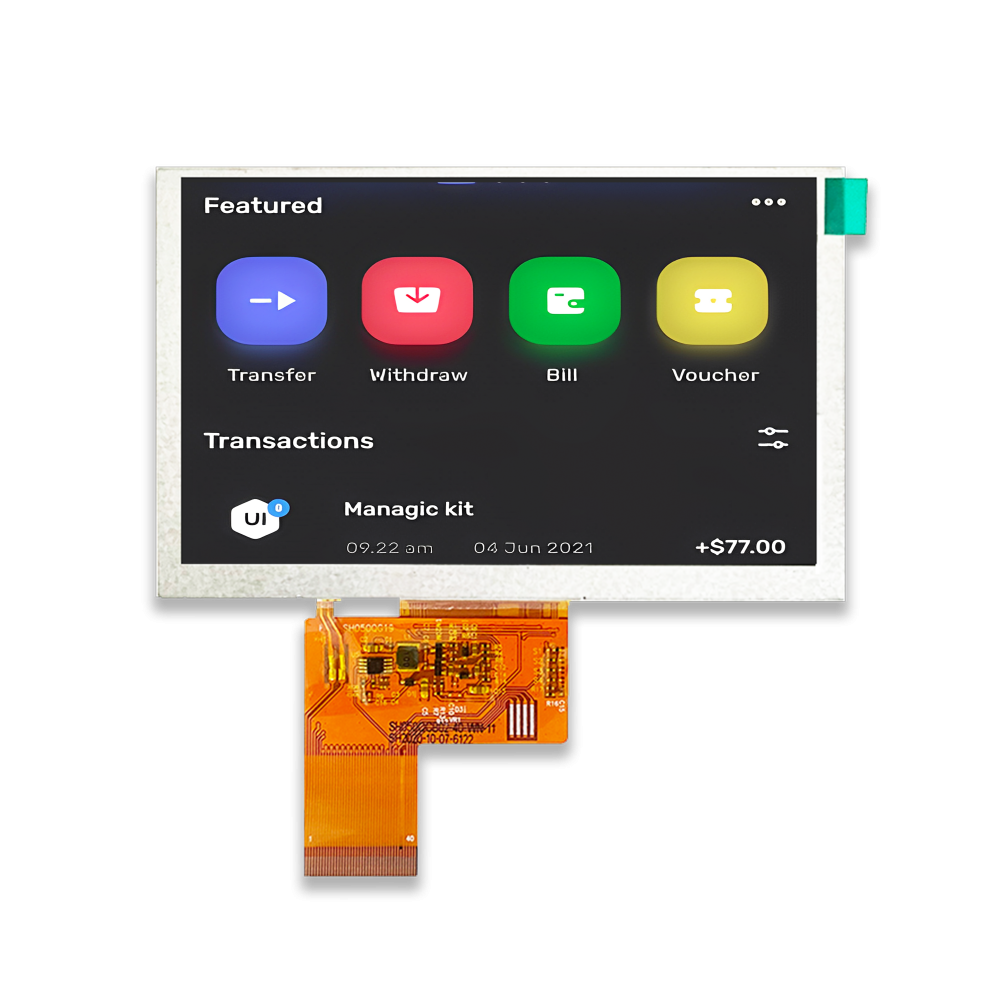

MAXEN MX-A50HR40-TNS07 is a TN type 5 inch LCD Display. The 5 inch LCD display area contains 800x480 pixels and can display up to 16.7M colors. As for mechanical detail, it features active area of 108.00(W)*64.80(H) mm, outline size of 120.70(W)x75.90(H)x3.05(T) mm. As a TN, normally black, Transmissive LCM product, this 5 inch LCD Display can provides 500 cd/m² display brightness and 800:1 transimissive contrast ratio, 70/50/70/70 (Typ.) (CR≥10) (U/D/L/R) viewing angle, best view direction on 6 o‘clock. MX-A50HR40-TNS07 supports RGB interface and the operating temperature ranges from -20 to +70 ℃ and storage from -30 to +80 ℃.

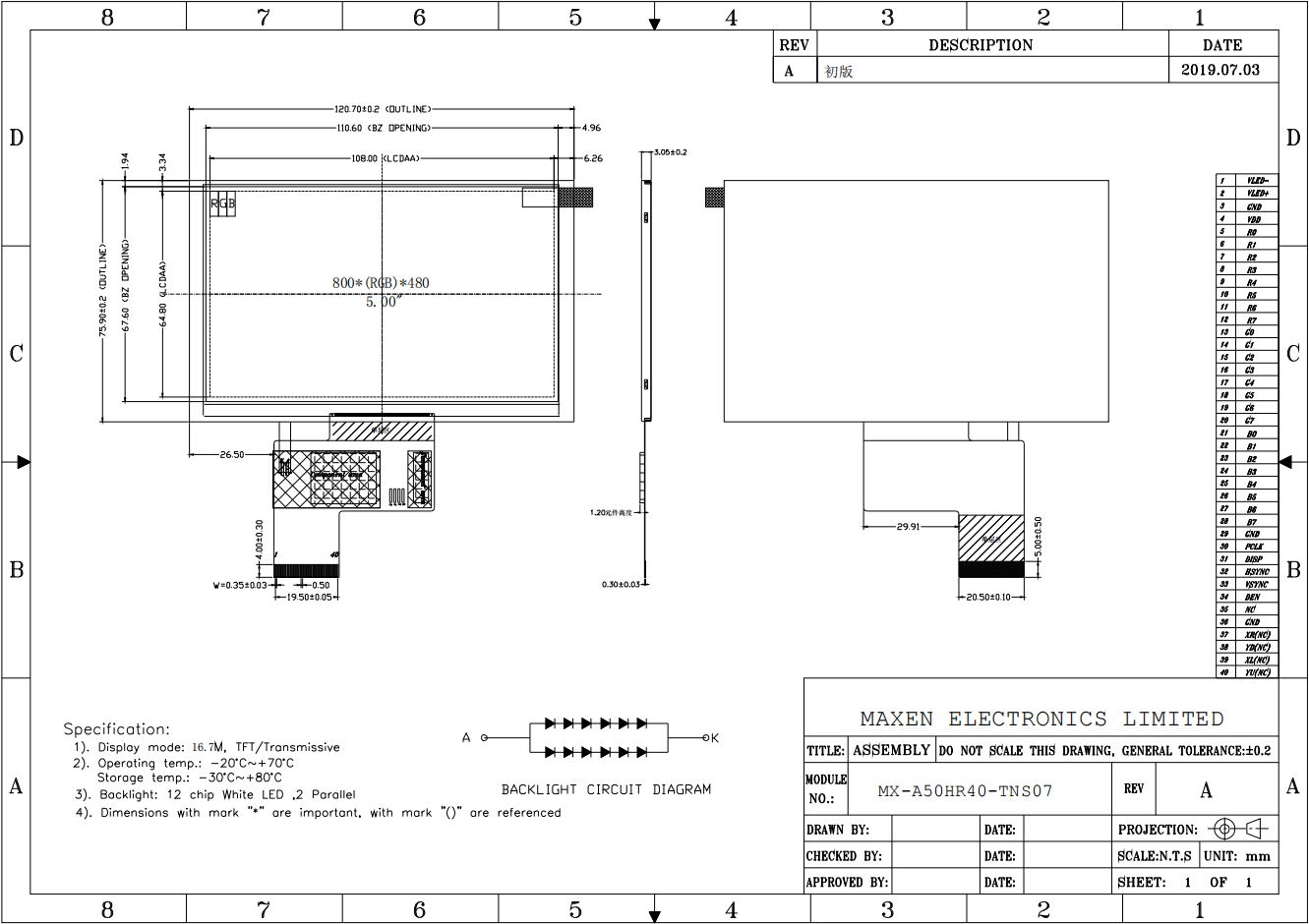

Product Structure


LCD PIN Function

Pin	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Stand by mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin
