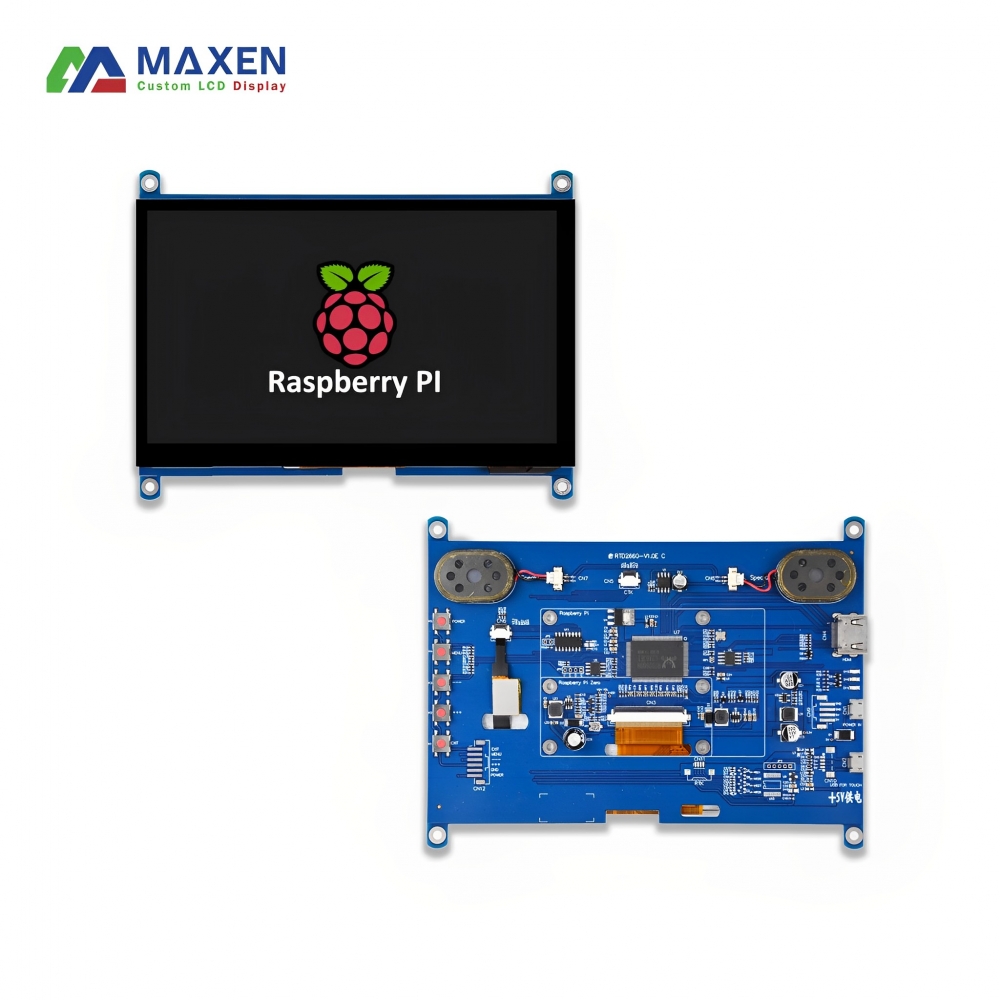

MX-B50HR40-TIS09 is a 5 Inch LCD Display Module with a-Si TFT LCD technology, it is equipped with WLED backlight, no backlight driver, no touch. It is with 800(RGB)×480(WVGA) resolution, the aspect ratio is 16:9 (width: height), and the pixels are arranged in RGB vertical stripes. Its display area size is 108.00(W)×64.80(H) mm, the appearance size is 120.70(W)×75.90(H)×3.05(T) mm. The service life of the light source is 50K hours, excluding the backlight driver. 5 Inch LCD Display Module adopts Parallel RGB signal interface, a total of 40 pins, connected by FPC. The current production status is in mass production, which is the main model of the current transaction. Its operating temperature is -20 ~ 70°C, and its storage temperature is -30 ~ 80°C. The 5" LCD Display Module is a high brightness LCD module. MAXEN has hundreds type of high brightness LCD module. The high brightness LCD module can be read under the strong sunlight, it is suitable for outdoor environment use.

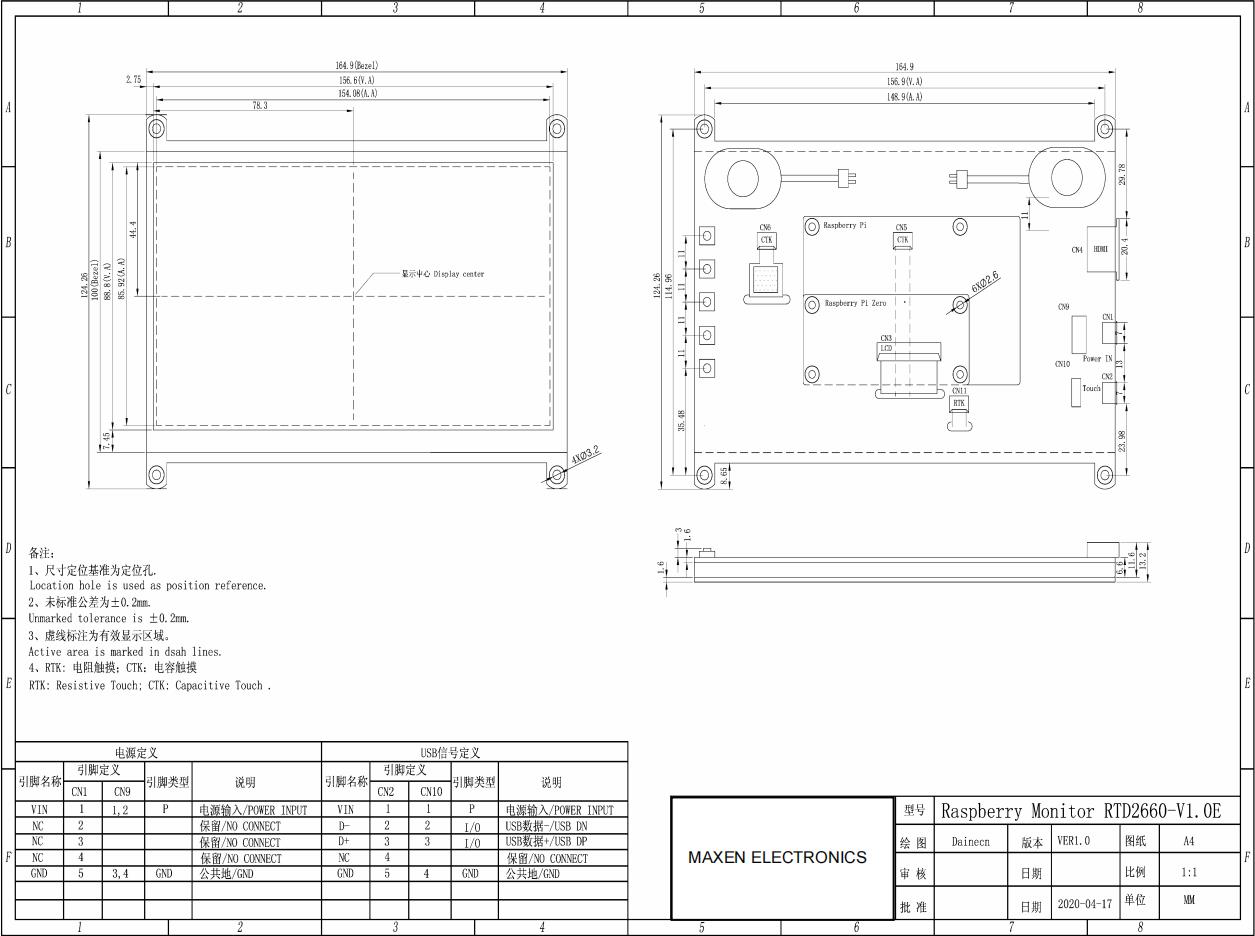

Product Structure
