Unveiling AG, AR, and AF Glass Treatments

The surface treatment technology of touch screen glass is an important part of enhancing the display effect and user experience, and common treatments include anti-glare (AG), anti-reflection (AR) and anti-fingerprint (AF). These technologies not only reduce the interference brought by the external environment, but also enhance the clarity of the screen, reduce fingerprints and smudges, and are widely used in cell phones, tablet PCs, monitors and other touch control devices. The principles, application areas and identification methods of these three surface treatment technologies are described in detail below.

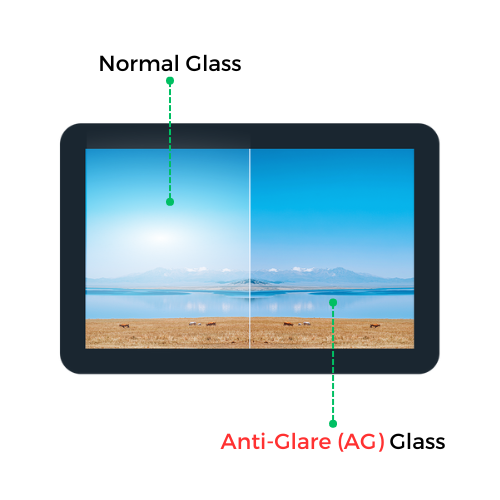

Anti-Glare (AG) Glass Treatment

Anti-glare glass treatment works by using chemical etching or coating to alter the roughness of the glass surface, significantly reducing light reflection. Even in bright environments, screens with AG treatment can maintain good visibility. The treatment creates a matte effect on the glass surface. When light hits the surface, it scatters rather than reflecting directly, avoiding harsh glare and making the display content softer and clearer. Viewers won’t be disturbed by reflections under various lighting conditions, offering a more comfortable visual experience.

To easily identify AG glass, observe the surface under a light source. If the light appears diffused and soft, it indicates the glass has undergone anti-glare treatment.

AG glass is commonly used in outdoor display devices and screens in bright environments. Typical applications include:

• Outdoor billboards
• ATMs
• POS systems
• Medical display equipment (e.g., ultrasound machines)
• E-readers
• Public transportation displays (e.g., subway ticket machines)

Anti-Reflection (AR) Glass Treatment

Anti-reflection glass treatment involves coating the glass surface with an optical layer to reduce reflectivity and increase light transmittance. AR glass can reduce reflectivity to below 1% and increase transmittance to over 99%. This results in sharper, clearer displays even in bright environments, making it ideal for situations where display clarity is critical.

To identify AR glass, place it side by side with regular glass near a computer screen or printed material and observe the clarity. The glass with superior clarity is the AR-treated glass.

AR glass is mainly used in devices and environments that require high transparency and low reflectivity, such as:

• High-definition displays
• Smartphone screens
• Camera lenses and optical instruments
• Car windshields
• Solar panels

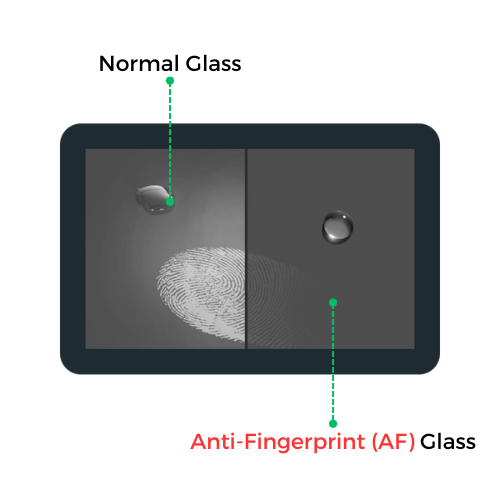

Anti-Fingerprint (AF) Glass Treatment

Anti-fingerprint glass treatment applies a nano-scale chemical coating to the surface, making it hydrophobic and oleophobic. This prevents fingerprints and oil stains from sticking. AF glass has a smooth surface, making fingerprints and smudges difficult to adhere to, while also being easy to clean. It provides a comfortable touch experience and is ideal for devices that require frequent touch.

To identify AF glass, drop a small amount of water on the surface. If the droplet rolls off freely, or if drawing with an oil-based pen leaves no marks, the glass has AF treatment.

AF glass is widely used in all touch screen devices, particularly those requiring high cleanliness and touch sensitivity, such as:

• Smartphone screens
• Tablets
• Industrial touchscreens
• Medical touch devices

Conclusion

Surface treatment technology for touch screens significantly impacts the performance and user experience of display devices. Anti-Glare, Anti-Reflection, and Anti-Fingerprint treatments each have their strengths and can be selected based on specific application needs to ensure optimal visual and touch experiences in various environments. These technologies are widely applied in consumer electronics, medical devices, advertising displays, and industrial control systems, providing robust support for improved display performance in different scenarios.
