Transflective TFT LCD vs. High Brightness Transmissive TFT LCD

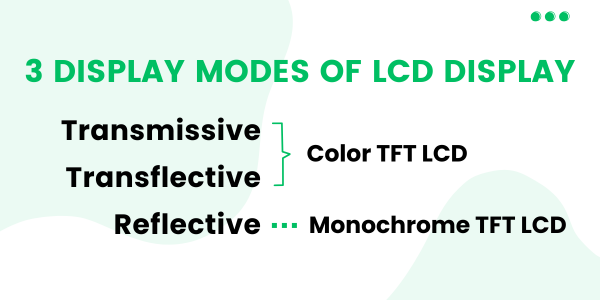

LCD displays offer 3 modes: transmissive, transflective, and reflective. For color TFT LCDs, only transmissive and transflective modes are commonly used, as reflective mode typically suits monochrome or low-power displays like e-readers or watch displays. This article delves into transflective technology to enhance understanding and selection.
What is Transflective TFT LCD Display?
Transflective TFT LCD combines transmissive and reflective characteristics, optimizing visibility by utilizing both ambient light and backlight. This dual-mode capability ensures excellent readability in both indoor and outdoor lighting conditions.
Working Principle:
- Transmissive Mode: In low-light environments, the display relies on backlighting to illuminate pixels. The backlight passes through liquid crystals and color filters to produce images.
- Reflective Mode: In bright or direct sunlight, the display uses ambient light. A semi-transparent reflective layer at the back reflects external light, enhancing readability without relying on backlight.
Advantages:
- Versatile Visibility: Provides clear readability both indoors and outdoors.
- Energy Efficiency: Reduced backlight requirement in bright environments lowers power consumption.
- Extended Battery Life: Ideal for portable devices like smartwatches, outdoor instruments, and navigational tools.
What is High Brightness Transmissive TFT LCD Display?
High brightness transmissive TFT LCD relies entirely on backlighting, augmenting backlight brightness to maintain image clarity and vibrancy. This technology uses backlight as the primary light source in various lighting conditions.
Working Principle:
- Enhanced Backlighting: By increasing backlight brightness, the screen remains readable in high-light environments, overcoming external light interference.
- Color Performance: Strong backlighting delivers richer and more saturated colors, with improved contrast.
Advantages:
- High Brightness: Ensures clear visibility even in strong indoor lighting.
- Color and Contrast Excellence: High brightness backlighting enhances color reproduction, suitable for applications requiring high color fidelity.
What’s the Difference between Transflective TFT LCD and High Brightness Transmissive TFT LCD?
Comparison of Transflective and High Brightness Transmissive
|
Comparison |
Transflective TFT LCD |
High Brightness Transmissive TFT LCD |
|
Light Source Dependency |
Combines ambient light and backlight for greater adaptability. |
Fully relies on backlight, requiring increased brightness in strong light. |
|
Energy Consumption |
More energy-efficient in bright conditions due to reduced backlight use. |
Generally higher energy consumption, especially noticeable with continuous high brightness. |
|
Readability Differences |
Excels in direct sunlight, with reflective mode ensuring clarity outdoors. |
Requires very strong backlight to counteract sunlight, potentially less effective in extreme outdoor lighting. |
|
Application Scenarios |
Ideal for devices used in varied lighting, like handhelds and navigation tools. |
Suitable for applications needing high color accuracy, such as smartphones, tablets, and indoor displays. |
Conclusion
Transflective and high brightness transmissive TFT LCDs each offer distinct advantages and suit different applications. The choice between them should be based on the device‘s usage environment and power requirements. Transflective displays excel in diverse conditions, particularly where energy saving is crucial, while high brightness displays offer superior color and brightness for visually demanding devices. As technology advances, both types may continue to evolve to meet broader application needs.
