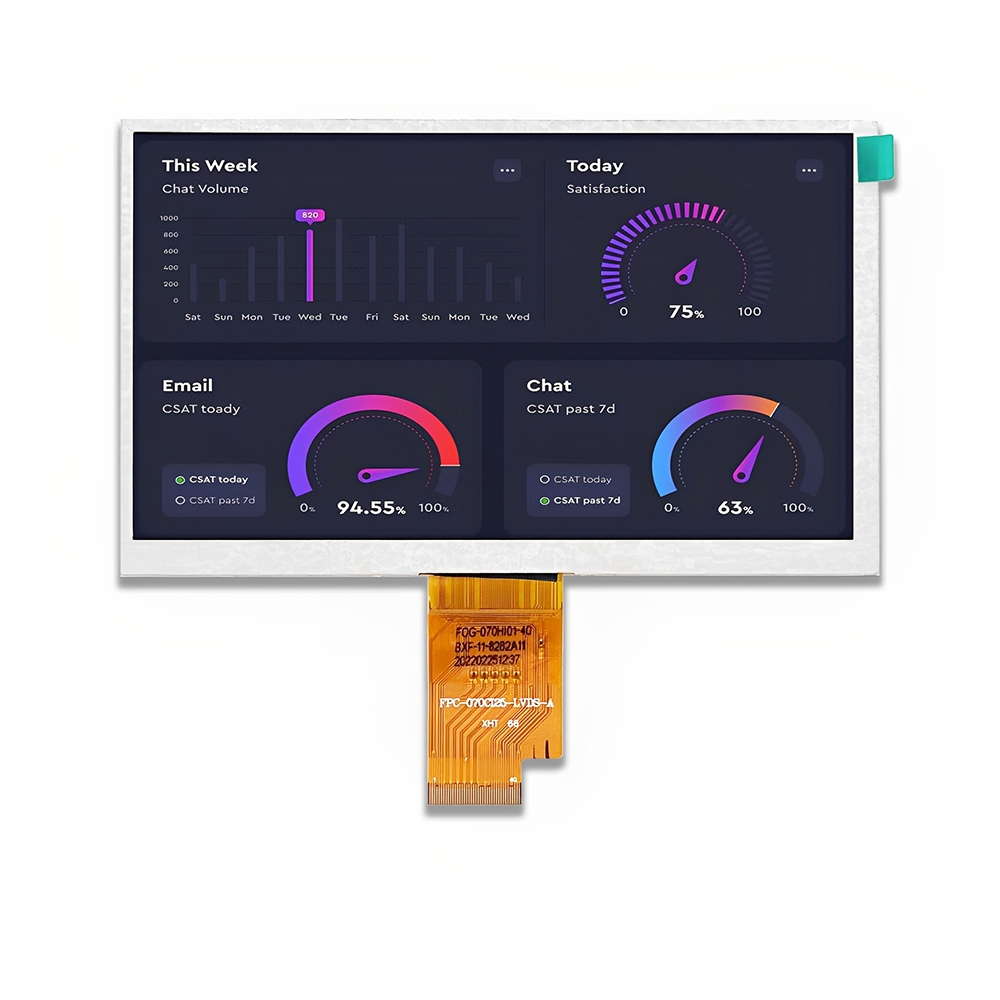

1000 Nits 7 inch TFT Display

Part NO: MX-H70HL40-IS311K
► Size: 7.0"
► Resolution: 1024*600 Pixels
► Display Mode: IPS
► Brightness: 1000 Nits
► Interface: LVDS 40 PIN
► Touch Screen: Without (Optional)

Make an inquiry

Datasheet Download

Description

MAXEN MX-H70HL40-IS311K is 7 inch TFT Display with IPS Technology that provides a wide viewing angle, true colors, and high brightness for sunlight readability. These 7" TFT displays feature 1024x600 pixels resolution and 1000cd/m2 brightness that helps in delivering brilliant images. The 7" TFT Displays come with an LVDS 6-bit/8-bit interface. These TFT displays operate at a 3.3V single supply voltage and a -20℃ to 85℃ temperature range.

Product Structure

LCD PIN Function

Pin NO.	Symbol	Description
1	VCOM	Common voltage
2~3	VDD	Digital Power
4	NC	No connection
5	Reset	Global reset pin. Active Low to enter Reset State. Normally pull high. It’s necessary to connecting with an RC delay circuit for stability. (GRB delay VDD larger than 1ms)
6	STBYB	Standby mode, normally pull high STBYB=”1”, Normal Operation STBYB=”0”, Timing control, source driver will turn off, all output are high-Z
7	GND	Ground level for analog block
8	NIND0	Negative LVDS Differential Data Inputs
9	PIND0	Positive LVDS Differential Data Inputs
10	GND	Ground
11	NIND1	Negative LVDS Differential Data Inputs
12	PIND1	Positive LVDS Differential Data Inputs
13	GND	Ground
14	NIND2	Negative LVDS Differential Data Inputs
15	PIND2	Positive LVDS Differential Data Inputs
16	GND	Ground
17	NINC	Negative LVDS Differential Clock Inputs
18	PINC	Positive LVDS Differential Clock Inputs
19	GND	Ground
20	NIND3	Negative LVDS Differential Data Inputs
21	PIND3	Positive LVDS Differential Data Inputs
22	GND	Ground
23~24	NC	No connection
25	GND	Ground
26~27	NC	No connection
28	SELB	6bit/8bit mode select
29	AVDD	Power for Analog Circuit
30	GND	Ground
31~32	LED-	LED Cathode
33	SHLR	Horizontal Inversion
34	UPDN	Vertical Inversion
35	VGL	Negative Power for TFT
36~37	NC	No connection
38	VGH	Positive Power for TFT
39~40	LED+	LED Anode

Absolute maximum rating (GND=AGND=0V)

Parameter	Symbol	Spec.			Unit
Parameter	Symbol	Min.	Typ.	Max.	Unit
Power supply voltage 1	VDD	-0.5	-	3.96	V
Power supply voltage 2	AVDD	-0.5	-	14.85	V
Logic output voltage	V_OUT	-0.5	-	5	V
Input voltage	V_IN	-0.5	-	AVDD+0.5	V
Operation temperature	T_OPR	-20	-	85	℃
Storage temperature	T_STG	-55	-	125	℃

Note:

(1) All of the voltages listed above are with respective to GND=0V.

(2) Device is subject to be damaged permanently if stresses beyond those absolute maximum ratings listed above.

Electrical characteristics (V_SS=0V ,Ta=25℃)

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Supply Voltage	VDD	3	3.3	3.6	V
Analog Supply Voltage	AVDD	8.9	9	9.1	V
TFT Gate ON Voltage	VGH	17	18	19	V
TFT Gate OFF Voltage	VGL	-6.5	-6	-5.5	V
TFT Common Electrode Voltage	VCOM	3	3.15	3.3	V
