: Round Type TFT LCD Display, Circular LCD Screen

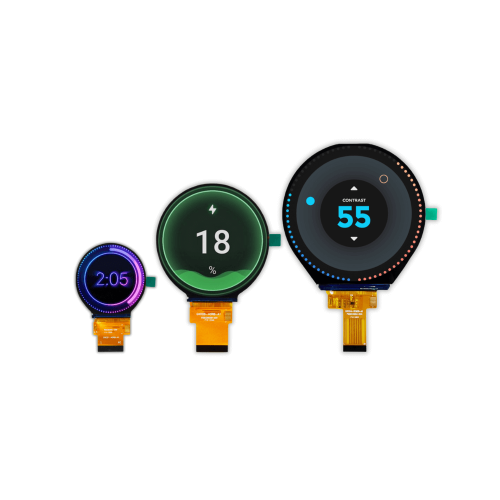

MAXEN‘s Round Type TFT Display products come in various sizes including 1.6", 2.1", 2.8", 3.4", 4.0" and more. The touch panel option is available for nearly all sizes, offering versatile interaction.
Designed to captivate and enhance the visual experience, our Round TFT LCD Displays offer a unique and eye-catching aesthetic that is perfect for a wide range of applications. With their distinct circular shape, these displays add a touch of elegance and sophistication to any device. Whether it‘s for wearables, smart home devices, medical equipment, or automotive applications, our Round TFT LCD Displays are engineered to deliver exceptional performance and functionality.

ANFRAGE SENDEN

Size	Resolution	Model No.	Type	PIN	Interface	Brightness	Technology	Viewing Angle(T/B/L/R)	O.T	L.T	Outline Dimension	Active Area
1.28"	240x240	MX-0128NS18HFS-N01	Round	18pin	SPI	350 nits	IPS	85/85/85/85	-20~70 °C	/	35.6037.741.55	32.40*32.40
1.28"	240x240	MX-0128NS18HFS-C02	Round	18pin	SPI	350 nits	IPS	85/85/85/85	-20~70 °C	/	47.6047.603.08	32.40*32.40

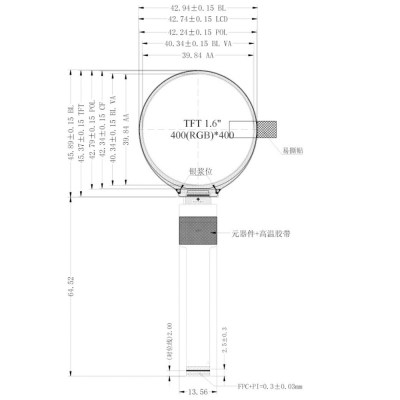

1.6"	400x400	MX-R016NQ16FS-N01	Round	16pin	QSPI	350 nits	IPS	85/85/85/85	-20~70 °C	25K Hr.	42.9445.891.56	39.84*39.84
1.6"	400x400	MX-R016NS18VFS-N02	Round	18pin	SPI	200 nits	IPS	85/85/85/85	-20~70 °C	/	42.9445.892.00	39.84*39.84

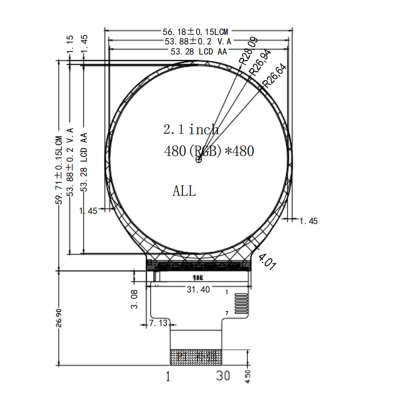

2.1	480x480	MX-R021NM30FS-N01	Round	30pin	MIPI	350 nits	IPS	80/80/80/80	-20~70 °C	/	56.1859.712.30	53.28*53.28
2.1"	480x480	MX-R021NS40FS-N02	Round	40pin	RGB	360 nits	IPS	85/85/85/85	-20~70 °C	/	56.1859.712.20	53.28*53.28
2.1"	480x480	MX-R021NS40BFH-N03	Round	40pin	RGB	1000 nits	IPS	80/80/80/80	-20~70 °C	/	58.1860.712.26	53.28*53.28
2.76"	480x480	MX-R028NS40FS-N01	Round	40pin	RGB	300 nits	IPS	85/85/85/85	-20~70 °C	/	73.0376.482.30	70.128*70.128

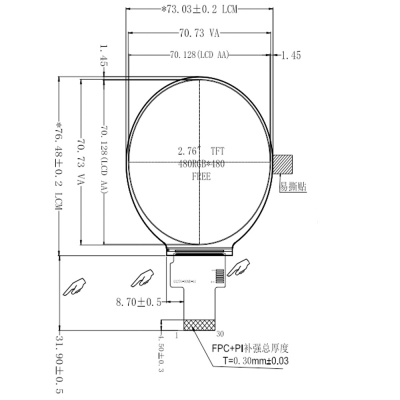

2.76"	480x480	MX-R028NM30FS-N02	Round	30pin	MIPI	300 nits	IPS	85/85/85/85	-20~70 °C	/	73.0376.482.30	70.128*70.128
3.4"	800x800	MX-R034HM30FS-N01	Round	30pin	MIPI	300 nits	IPS	85/85/85/85	-20~70 °C	/	94.9096.952.22	87.60* 87.60
4.0"	720x720	MX-040WM30FS-N01	Round	30pin	MIPI	320 nits	IPS	85/85/85/85	-20~70 °C	/	105.60109.872.21	101.52*101.52
5.0"	1080x1080	MX-R050HM40FS-N01	Round	40pin	MIPI	350 nits	IPS	80/80/80/80	-20~70 °C	/	132.208136.5311.98	127.008*127.008

Round Type TFT LCD Display, Circular LCD Screen
